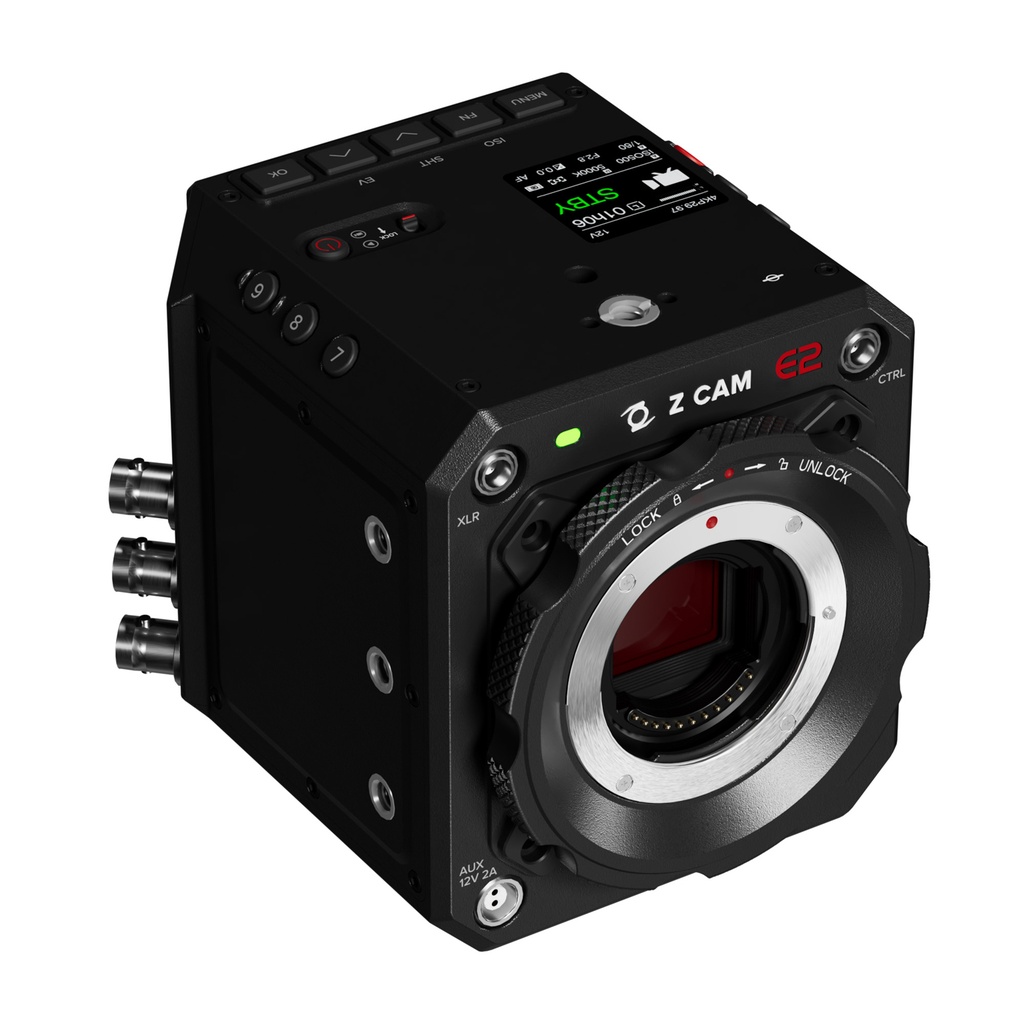

Z CAM E2-M4 Mark II 4K CINEMA CAMERA
Art.Nr. ZCE2M4M2E2-M4 Mark II 4K CINEMA CAMERA
Z CAM E2-M4 Mark II Professional 4K Kino-Kamera – Erweiterte Konnektivität und Stabilisierung für professionelle Produktionen
Die Z CAM E2-M4 Mark II Professional 4K Kino-Kamera baut auf den Erfolgen des Vorgängermodells auf und bietet nun verbesserte Konnektivität und Stabilisierung, während sie die bewährte Wechselobjektivfassung im Micro Four Thirds-Format und das robuste Gehäuse der Flagship-Serie beibehält. Darüber hinaus ermöglicht sie die Aufnahme von ProRes RAW auf ausgewählte Atomos Rekorder/Monitore.
Die E2-M4 Mark II bietet eine beeindruckende Aufnahmemöglichkeit in DCI und UHD 4K mit bis zu 160 fps sowie in HD bis zu 240 fps, alles auf einer CFexpress Type B-Karte (nicht im Lieferumfang enthalten). Über eine Gigabit-Ethernet-Verbindung können direkt von der Kamera Live-Streams mit den RTSP-, RTMP- und SRT-Protokollen übertragen werden. Der 4/3"-Sensor unterstützt 10-Bit-Farbaufnahmen und bietet einen Dynamikumfang von 13 Blendenstufen, der im WDR-Modus auf 16 Blendenstufen erweitert werden kann. Die ISO-Einstellungen reichen von 500 bis 2500 im nativen Modus und bieten einen manuellen Bereich von 500 bis 102.400.
Erweiterte Schnittstellen
Die E2-M4 Mark II bietet im Vergleich zum Vorgängermodell zusätzliche Anschlussmöglichkeiten. Sie verfügt nun über HDMI- und 3G-SDI-Ausgangsports, um die Konnektivität zu erweitern. Mit integrierten Timecode- und Genlock-BNC-Eingängen entfällt der Bedarf an zusätzlichen Adaptern. Über die USB-C-, 2,5-mm-LANC- und Serial CTRL-Ports lässt sich die Kamera mühelos mit kompatiblen Ökosystemen steuern. Der Gigabit-Ethernet-Anschluss ermöglicht die Steuerung der Kamera sowie das Live-Streaming und unterstützt sogar PoE+ (Power over Ethernet). Für die Audioverbindung stehen ein 3,5-mm-Stereo-Jack-Eingang, ein 5-Pin-LEMO-Eingang und ein 3,5-mm-Stereo-Jack-Ausgang zur Verfügung.
Die Z CAM E2-M4 Mark II ist somit die ideale Wahl für Filmemacher und Produzenten, die eine flexible, leistungsstarke und zukunftssichere Kamera mit erweiterten Schnittstellen und fortschrittlicher Streaming-Technologie suchen.
- DCI und UHD 4K bis zu 160 fps
- HDMI-, SDI- und Genlock-Konnektivität
- Eingebauter Gyroskop-Sensor
- Wechselbares MFT-Objektivbajonett
- ProRes RAW und 10-Bit Farbunterstützung
- 4/3"-WDR-CMOS-Sensor im Flagship-Gehäuse
- 13 Blendenstufen Dynamikumfang (16 Blendenstufen im WDR-Modus)
- Dual Native ISO: 500/2500
- Gigabit Ethernet, unterstützt PoE+
- V-Mount-Akkuplatte, Netzteil
Camera
Sensor Type
4/3" CMOS Sensor
Sensor Size
19.0 x 13.0 mm (Diagonal 21.63mm)
Effective Pixels
10.71M
Dynamic Range
13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
Lens Mount
MFT Mount w/active lock (interchangeable)
Microphone
Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate
30fps max at C4K Low Noise (4096x2160)
120fps max at C4K (4096x2160)
150fps max at C4K 2.4:1 (4096x1728)
30fps max at 4K Low Noise (3840x2160)
120fps max at 4K (3840x2160)
160fps max at 4K 2.4:1 (3840x2160)
30fps max at 3696x2772 Low Noise
60fps max at 3696x277
260fps max at 3312x2760
170fps max at S16 16:9 (2752x1548)
160fps max at S16 (2704x1600)
240fps max at 1920x1080
Video Encoder
H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI
ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth
10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture
Settings
ISO
Auto, Manual (500 ~ 102400), Dual Native ISO: 500 / 2500
Shutter
Shutter Speed: Auto, Manual (1”~ 1/8000”) Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance
Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness /
Gamma Setting
Image Config
Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code
Current Time / Manual Input / External Input
Connectivity
HDMI
HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI
3G-SDI
Timecode In
LTC Timecode Input via BNC
Genlock
BB/Tri-Level Genlock Input via BNC
USB
USB 3.0 Type C for camera control & data transfer only
Remote Port
2.5 mm jack socket (Sony LANC compatible)
Audio In
3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out
3.5 mm stereo jack socket
Wi-Fi
5G, up to 802.11n, external antenna port
CTRL
Serial port
Ethernet
Gigabit Ethernet port for control, setting & live streaming
Power
Battery
Mini V-Lock 14.8V (Battery not included)
Power Input
DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX)
DC 12V 3A max (2-pin LEMO socket)
Power Consumption
50W maximum, not inclusive of AUX power consumption
Physical
Camera Body
Aluminum Alloy
Weight - Camera (w/o Lens)
1.06 kg (with MFT mount)
Weight - Full Package
1.40kg
Dimensions (HxWxL) - Camera
105 x 98 x 116 mm / 4.13 x 3.86 x 4.57 inch (MFT mount)
Dimensions (HxWxL) - Package
145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
1 x Z CAM E2-M4 Mark II Professional 4K Cinema Camera (MFT)
1 x LEMO Power Cable
1 x Lens Mount Cap
