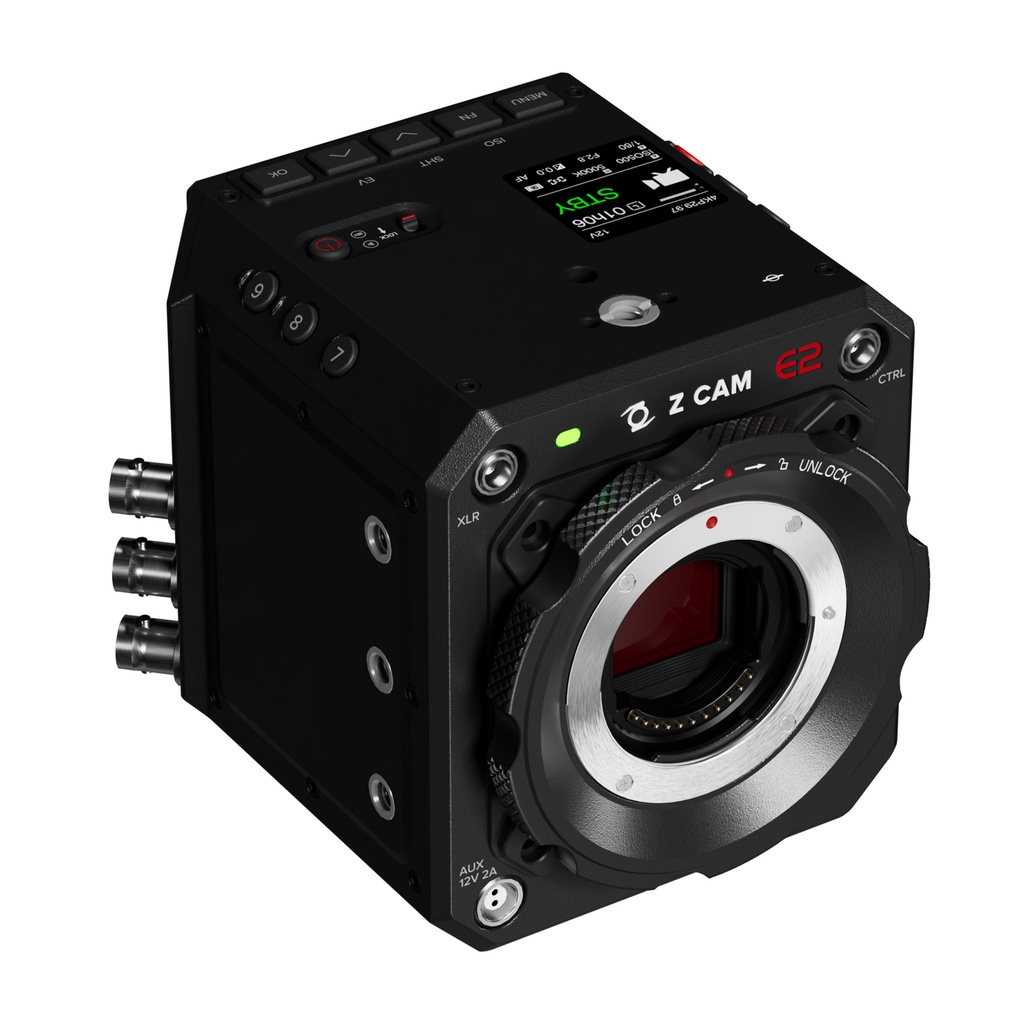

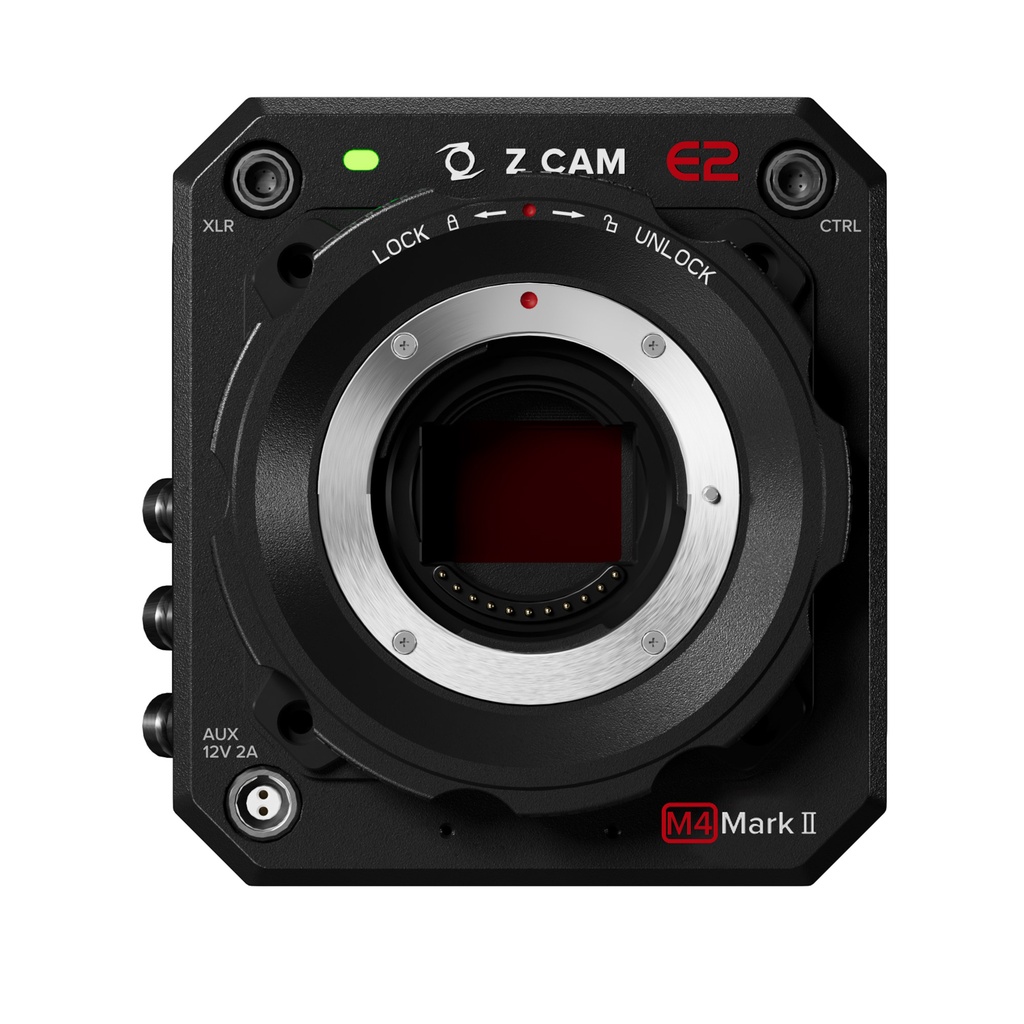

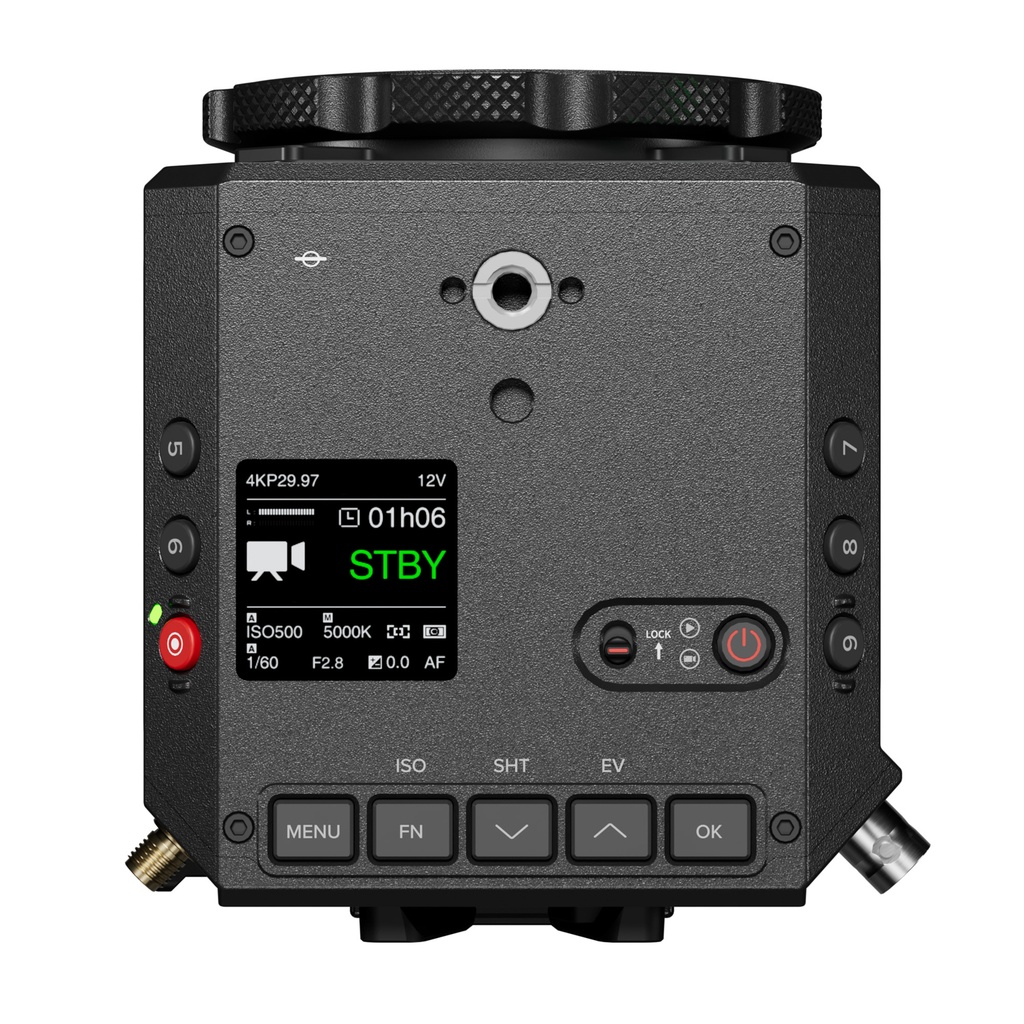

Z CAM E2-M4 Mark II 4K CINEMA CAMERA
Art.Nr. ZCE2M4M2E2-M4 Mark II 4K CINEMA CAMERA
The Z CAM E2-M4 Mark II Professional 4K Cinema Camera adds connectivity and stabilization improvements to the previous camera model while maintaining its interchangeable Micro Four Thirds lens mount, Flagship Series housing, and the ability to record ProRes RAW to select Atomos recorder/monitors. The camera records DCI and UHD 4K at up to 160 fps, as well as HD to 240 fps, all to a CFexpress Type B card (not included). Live stream RTSP, RTMP, and SRT protocols directly from the camera via a Gigabit Ethernet connection. The camera features a 4/3" sensor with 10-bit color support and a nominal 13 stops of dynamic range with 16 stops when set to WDR. ISO settings include 500 and 2500 in native mode and a total manual range of 500 to 102,400.
Expanded Interfaces

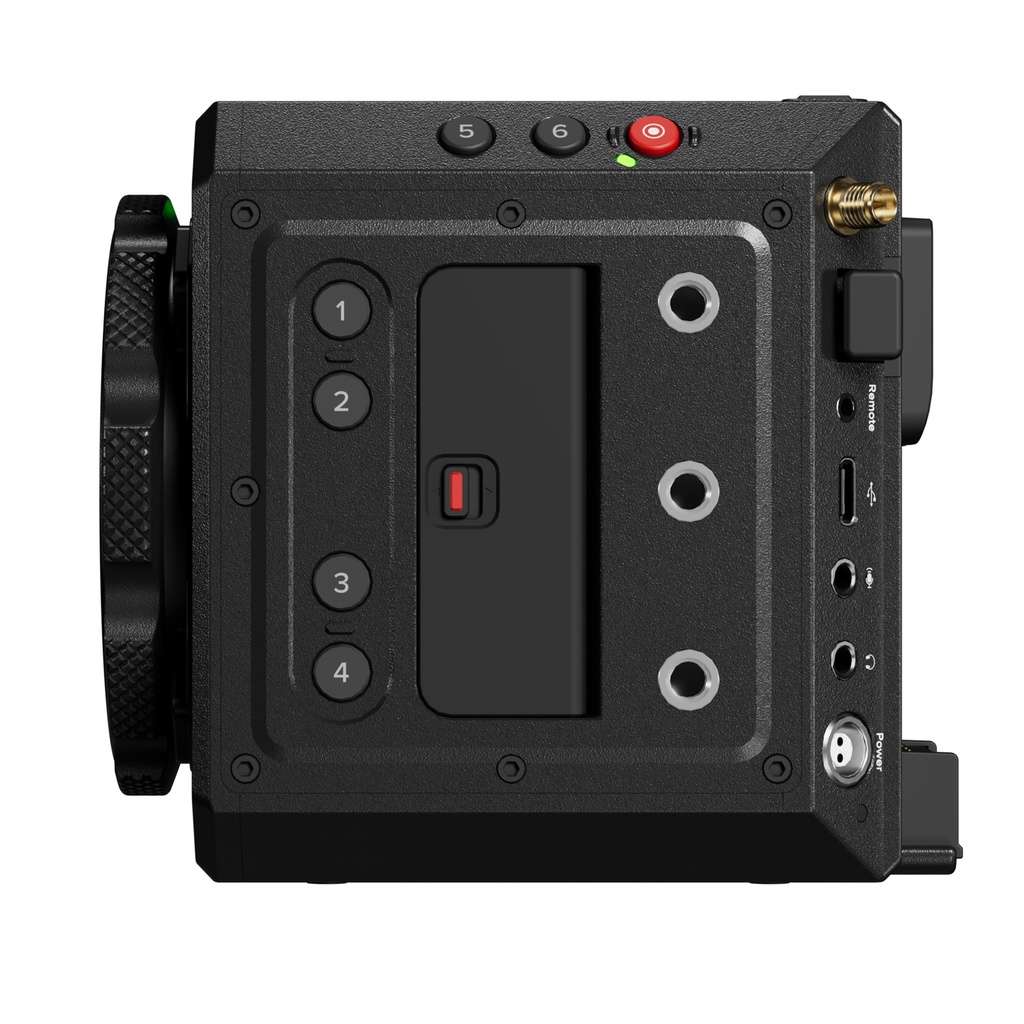

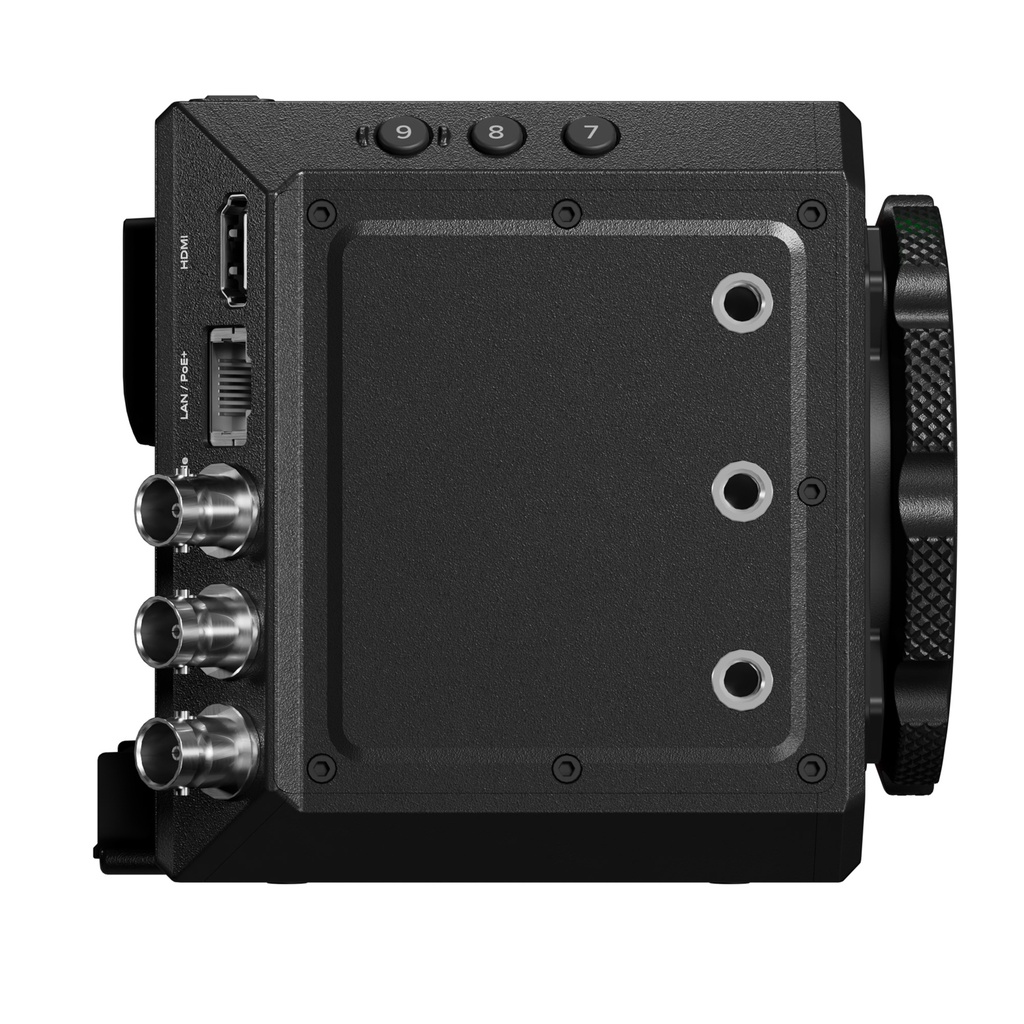

The E2-M4 Mark II features both HDMI and 3G-SDI output ports for expanded connectivity in comparison to its predecessor. On top of this, Timecode and Genlock BNC inputs are built-in, allowing you to forgo additional adapters. Use the USB-C, 2.5mm LANC, and Serial CTRL ports to facilitate camera control with compatible ecosystems. A Gigabit Ethernet port also helps control the camera and live stream, and it even supports PoE+. Audio connectivity includes a 3.5mm stereo jack input, 5-pin LEMO input, and 3.5mm stereo jack output.
- DCI and UHD 4K up to 160 fps
- HDMI, SDI, and Genlock Connectivity
- Built-In Gyroscope Sensor
- Interchangeable MFT Lens Mount
- ProRes RAW and 10-Bit Color Support
- 4/3" WDR CMOS Sensor/Flagship Housing
- 13-Stop Dynamic Range (16 WDR Enabled)
- Dual Native ISO: 500/2500
- Gigabit Ethernet, PoE+ Support
- V-Mount Battery Plate, Power Supply
Camera
Sensor Type
4/3" CMOS Sensor
Sensor Size
19.0 x 13.0 mm (Diagonal 21.63mm)
Effective Pixels
10.71M
Dynamic Range
13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
Lens Mount
MFT Mount w/active lock (interchangeable)
Microphone
Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate
30fps max at C4K Low Noise (4096x2160)
120fps max at C4K (4096x2160)
150fps max at C4K 2.4:1 (4096x1728)
30fps max at 4K Low Noise (3840x2160)
120fps max at 4K (3840x2160)
160fps max at 4K 2.4:1 (3840x2160)
30fps max at 3696x2772 Low Noise
60fps max at 3696x277
260fps max at 3312x2760
170fps max at S16 16:9 (2752x1548)
160fps max at S16 (2704x1600)
240fps max at 1920x1080
Video Encoder
H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI
ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth
10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture
Settings
ISO
Auto, Manual (500 ~ 102400), Dual Native ISO: 500 / 2500
Shutter
Shutter Speed: Auto, Manual (1”~ 1/8000”) Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance
Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness /
Gamma Setting
Image Config
Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code
Current Time / Manual Input / External Input
Connectivity
HDMI
HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI
3G-SDI
Timecode In
LTC Timecode Input via BNC
Genlock
BB/Tri-Level Genlock Input via BNC
USB
USB 3.0 Type C for camera control & data transfer only
Remote Port
2.5 mm jack socket (Sony LANC compatible)
Audio In
3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out
3.5 mm stereo jack socket
Wi-Fi
5G, up to 802.11n, external antenna port
CTRL
Serial port
Ethernet
Gigabit Ethernet port for control, setting & live streaming
Power
Battery
Mini V-Lock 14.8V (Battery not included)
Power Input
DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX)
DC 12V 3A max (2-pin LEMO socket)
Power Consumption
50W maximum, not inclusive of AUX power consumption
Physical
Camera Body
Aluminum Alloy
Weight - Camera (w/o Lens)
1.06 kg (with MFT mount)
Weight - Full Package
1.40kg
Dimensions (HxWxL) - Camera
105 x 98 x 116 mm / 4.13 x 3.86 x 4.57 inch (MFT mount)
Dimensions (HxWxL) - Package
145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
1 x Z CAM E2-M4 Mark II Professional 4K Cinema Camera (MFT)
1 x LEMO Power Cable
1 x Lens Mount Cap
