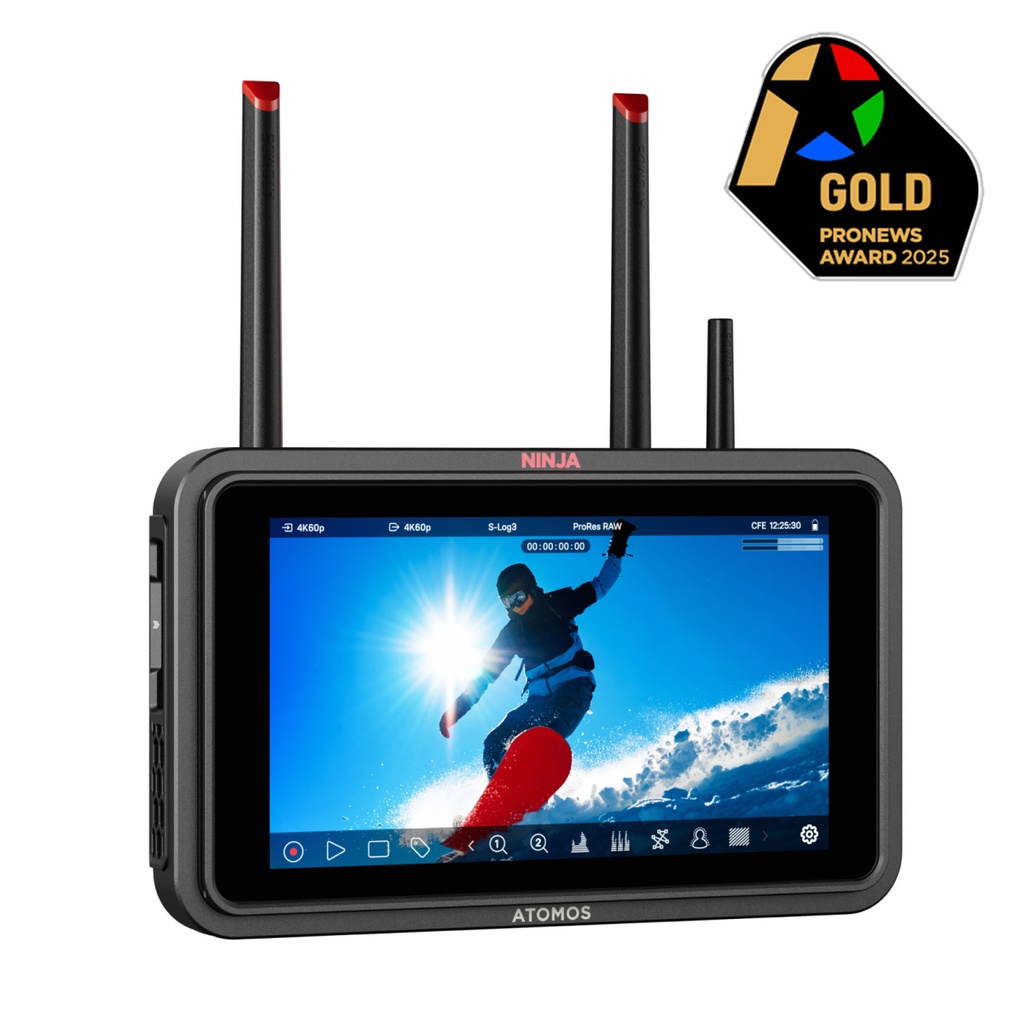

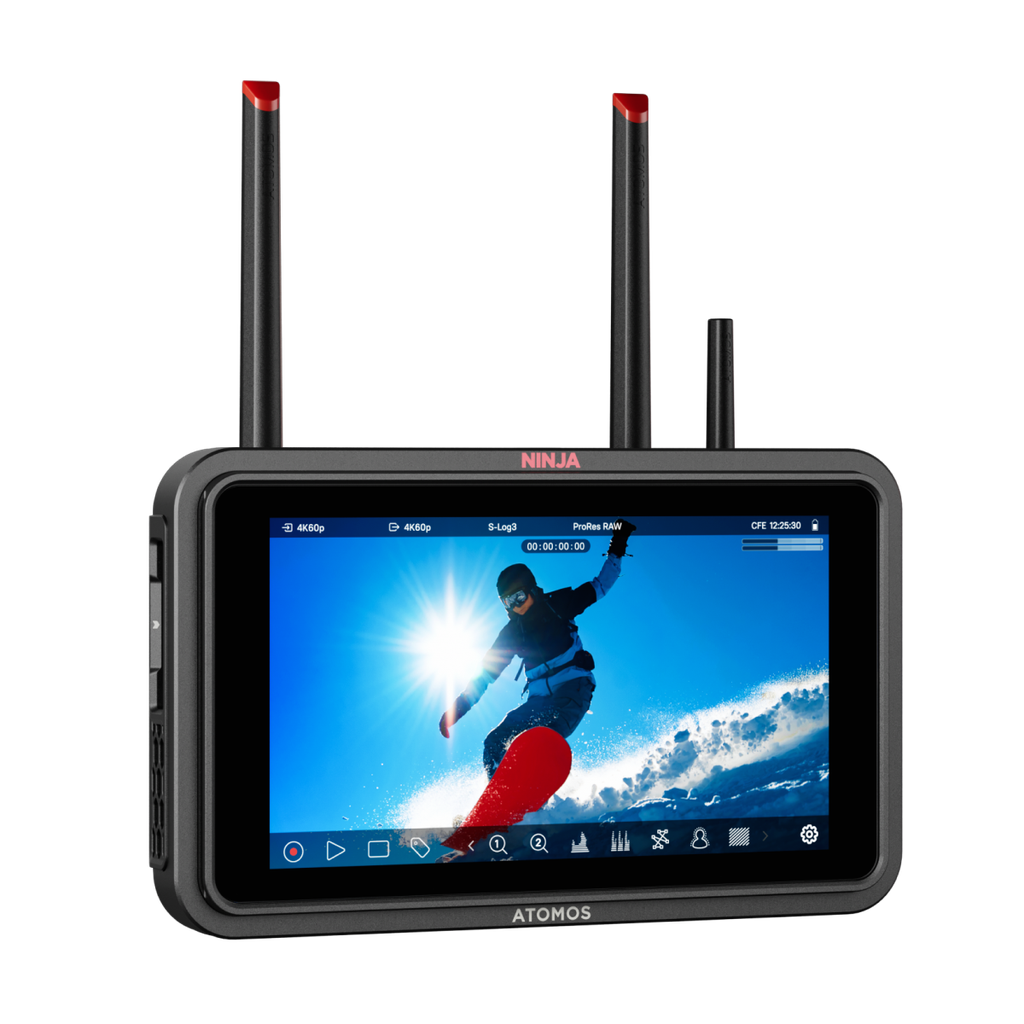

ATOMOS Ninja TX
Art.Nr. ATOMNJTX015-Zoll, 1500nit, Wi-Fi-fähig, SDI/HDMI HDR Monitor-Recorder
Ninja TX – Der ultimative Camera-to-Cloud Monitor-Recorder
Der Atomos Ninja TX setzt einen neuen Maßstab unter den Monitor-Recordern und kombiniert das bewährte Ninja-Design mit fortschrittlichen Funktionen für die Zukunft der Produktion. Mit 12G-SDI und HDMI 2.0 Ein- und Ausgängen, Unterstützung für bis zu 8K ProRes RAW und integrierten Cloud-Workflows ist der Ninja TX auf die Anforderungen professioneller Filmemacher, Broadcaster und Content-Creator zugeschnitten.
Next-Level Ninja mit CFexpress und USB-C
Der Ninja TX unterstützt ultraschnelle CFexpress-Typ-B-Aufzeichnung für höhere Auflösungen und mehr Zuverlässigkeit. Zwei USB-C-Anschlüsse ermöglichen direktes Recording auf externe Medien, Kalibrierung und zukünftige Erweiterungen. Dank USB-C Power Delivery kann das Gerät flexibel über Akkus, Netzteile oder Powerbanks betrieben werden.
Integrierte drahtlose Workflows
Mit integriertem Wi-Fi 6E lädt der Ninja TX automatisch Dateien in die Cloud – direkt auf ATOMOSphere, Frame.io oder Dropbox. Außerdem bietet er NDI 6 HX3 Sende- und Empfangsfunktionen – ideal für Live-Produktionen, dezentrale Teams und schnelle Übergabe in die Postproduktion.
Präzises Monitoring überall
Das 5-Zoll-HDR-Touchdisplay mit 1500 Nits Helligkeit und 10-Bit Farbtiefe sorgt für eine präzise Bildkontrolle – selbst bei hellem Sonnenlicht. Die professionellen Tools für Belichtung, Fokus und Framing von Atomos helfen dabei, jederzeit den perfekten Shot zu erzielen.
Robust, mobil und zukunftssicher
Der Ninja TX ist für den professionellen Einsatz konzipiert – kompakt, vielseitig und zuverlässig. Ein neues Verriegelungssystem für HDMI- und USB-C-Kabel sorgt für sichere Verbindungen am Set. Die integrierte Kreuzkonvertierung zwischen HDMI und SDI sowie Over-the-Air-Firmwareupdates und breite Codec-Unterstützung machen ihn bereit für moderne und kommende Produktionsumgebungen.
- Aufzeichnung in Apple ProRes/RAW bis zu 8Kp30
- HDMI 2.0 und 12G-SDI Ein- und Ausgänge mit Loop-Through
- Speicherung auf CFexpress Typ B oder externem USB-C-Medium
- Integriertes NDI 6 HX3 Senden/Empfangen für Broadcast-Workflows
- Wi-Fi 6E für direkten Cloud-Upload und Timecode-Sync
- Verbesserte Kühlleistung mit deutlich geringerem Lüftergeräusch und besserer Gesamtperformance
- AirGlu Timecode über RF oder Bluetooth
- 1500nit HDR-Display, auch im Tageslicht ablesbar
- Stromversorgung über USB-C PD, NP-F Akku oder Netzadapter
- Verriegelbare HDMI- und USB-C-Kabeladapter im Lieferumfang
Dimensions (W x H x D mm) | 151mm x 92mm x 36mm |
Weight | 400gms |
Mount points | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
Environmental | |
Ambient operating temperature | Up to 40 degrees Celsius |
Construction | |
Body | Aluminium with ABS plastic |
Cooling | Actively controlled fan and heat sink |
Power | |
Input voltage | 6.2V to 16.8V DC |
Operating power | Up to 30W |
Multi-function button | Power / lock screen |
Continuous power | Via NP-F battery or USB-C PD Power |
DC in connector | Via Battery Eliminator (optional) |
DTAP | Up to 13W |
USB PD IN | 45W capable, power supply required |
USB PD OUT | Up to 13W |
Display | |
Size | 5.2-inch |
Resolution | 1920 x 1080 |
Backlight Type | Edge lit |
Brightness (cdm2 / Nits) | 1500 |
Aspect ratio | 16:9 |
Color Gamut | Rec.709 |
Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable |
Color Pipeline | |
Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
3D LUT Display | .Cube format |
3D LUT Down Stream | Loop out |
3DLUT 50/50 | Yes |
Monitoring Modes | Native / HLG / PQ / 3D LUT |
HDR Output Conversion | Log / HDR to HLG / PQ |
Video Input | |
HDMI | 1 x HDMI (2.0) up to 4K60P + RAW |
Locking port | Optional |
SDI | 12G |
Wi-Fi | Wi-Fi 6E |
USB | 2 x USB-C 2.0/3.0 |
Bit Depth | 8/10-bit video |
Video Chroma Subsampling | 4:2:2 |
Video Output | |
HDMI | 1 x HDMI (2.0) up to 4K60P |
Locking port | Optional |
SDI | 12G |
Wi-Fi | Wi-Fi 6E |
USB | 2 x USB-C 2.0/3.0 |
Bit Depth | 8/10-bit video |
Video Chroma Subsampling | 4:2:2 |
Metadata | |
HDMI | RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut |
Network | |
Wi-Fi | Wi-Fi 6E |
USB | 2 x USB-C 3.0 |
Connectivity | |
Bluetooth | Yes |
LANC | Yes |
Video Signal Conversion | |
HDMI to SDI | Yes |
SDI to HDMI | Yes |
Audio In/Out | |
HDMI | 8-channel, 24-bit |
SDI | 12-channel, 24-bit |
Analogue Audio Line In | 3.5mm headphone jack, 2-channel input |
Headphone Out | 3.5mm headphone jack, 2-channel |
Timecode | |
Embedded | HDMI & SDI |
Time of day | Yes |
Reference / Genlock input | No |
LTC | No |
Wireless AirGlu RF Server and Client | Yes |
Wireless AirGlu BT Server | Yes |
Resolution & Frame Rates (Record, Monitor & Playback) | |
RAW | Up to 6Kp60/8Kp30 |
4K DCI | 23.98/24/25/29.9/30/50/59.94/60p |
4K UHD | 23.98/24/25/29.9/30/50/59.94/60p |
2K DCI 2048 x 1080 | Yes |
1080p | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
1080 PsF | Converted to P and looped out PsF |
1080i | 50/59.94/60i |
720p | 50/59.94/60p |
Supported Media | |
CF Express | Atomos certified CF Express type B media |
USB | Atomos certified USB 3.0 media |
File System | ExFAT |
Codecs | |
Apple ProRes RAW | ProRes RAW, ProRes RAW HQ |
Apple ProRes | LT, 422, 422 HQ |
Avid DNxHD | DNxHD 220x, 220, 145, 36 |
Avid DNxHR | LB, SQ, HQ, HQX |
H.265 | LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0 |
Playback | |
Playlist | Yes - create customer playlists from full or sub-clips |
Loop | Yes, with user-customizable in/out markers |
Apple ProRes RAW | Yes - recorded clips |
Apple ProRes | Yes, with linear PCM audio |
Avid DNx | Yes, with linear PCM audio |
H.265 | Yes |
Recording | |
Pre-roll | ProRes, DNxHD only |
Timelapse | Yes |
Simultaneous Proxy Record | Yes |
On-screen Monitoring Tools | |
Waveform | 3 sizes – adjustable opacity & brightness |
RGB parade | 3 sizes – adjustable opacity & brightness |
Vectorscope | 2 sizes – adjustable opacity & brightness |
1 x Zoom | Yes. 1:1 pixel mapping for 4K |
2 x Zoom | Yes |
Focus peaking | Colour selected / threshold setting / colour / mono / edges only |
Atomos False Color | Yes, with scale |
ARRI False Color | Yes |
EL ZONE | Yes |
Zebra | Yes, adjustable |
Isolate color channel | Blue Only |
Cine Frame Guides | Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
Social Frame guides | Presets for 9:16, 1:1, 191:1, 4:5 |
Onion Skin | Yes |
Safe areas | Action and graphic |
Grid markers | 9 grid |
Anamorphic desqueeze | 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
Display Flip | Vertical only |
Onboard Signal Processing | |
Pulldown removal | 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown) |
4K UHD downscale for HD | Loop out - 4K UHD to FHD |
DCI Crop | Loop out - 17:9 to 16:9 crop |
Remote Control | |
HDMI | Auto HDMI trigger, supported protocols - Canon, Sony, Atomos |
SDI | SDI trigger camera selectable |
Serial 2.5mm Jack | Calibration via optional USB to serial cable |
AirGlu BT | Yes |
AirGlu RF | Yes |
Camera to Cloud | |
ATOMOSphere | Direct progressive upload supported (20GB free storage) |
Adobe Frame.io | Direct progressive upload supported (separate purchase) |
Dropbox | Direct progressive upload supported (separate purchase) |
What’s in the Box | |
Accessories included | Ninja TX monitor-recorder, USB-C locking cable adaptor, HDMI locking cable adaptor, Wi-Fi antenna, 5x antenna tips (black, white, yellow, green, red), AirGlu antenna, antenna caps, USB-C locking cable (45cm), Quick Start Guide. |
Box dimensions (W x H x D mm) | 190mm x 130mm x 75mm |
Box weight | 665gms |
- Ninja TX Monitor-Recorder,
- USB-C Verriegelungskabeladapter,
- HDMI Verriegelungskabeladapter,
- Wi-Fi Antenne,
- 5x Antennenspitzen
- (schwarz, weiß, gelb, grün, rot),
- AirGlu Antenne, Antennenkappen,
- USB-C Verriegelungskabel (45cm)
- Schnellstartanleitung
