ATOMOS Ninja TX
Art.Nr. ATOMNJTX015-inch, 1500nit Wi-Fi enabled, SDI/HDMI HDR monitor-recorder
Ninja TX – The Ultimate Camera-to-Cloud Monitor-Recorder
The Atomos Ninja TX sets a new standard in monitor-recorders, combining the trusted Ninja design with advanced features built for the future of production. With 12G-SDI and HDMI 2.0 inputs and outputs, support for up to 8K ProRes RAW, and integrated cloud workflows, Ninja TX is designed to meet the demands of professional filmmakers, broadcasters, and content creators.
Next-Level Performance with CFexpress and USB-C

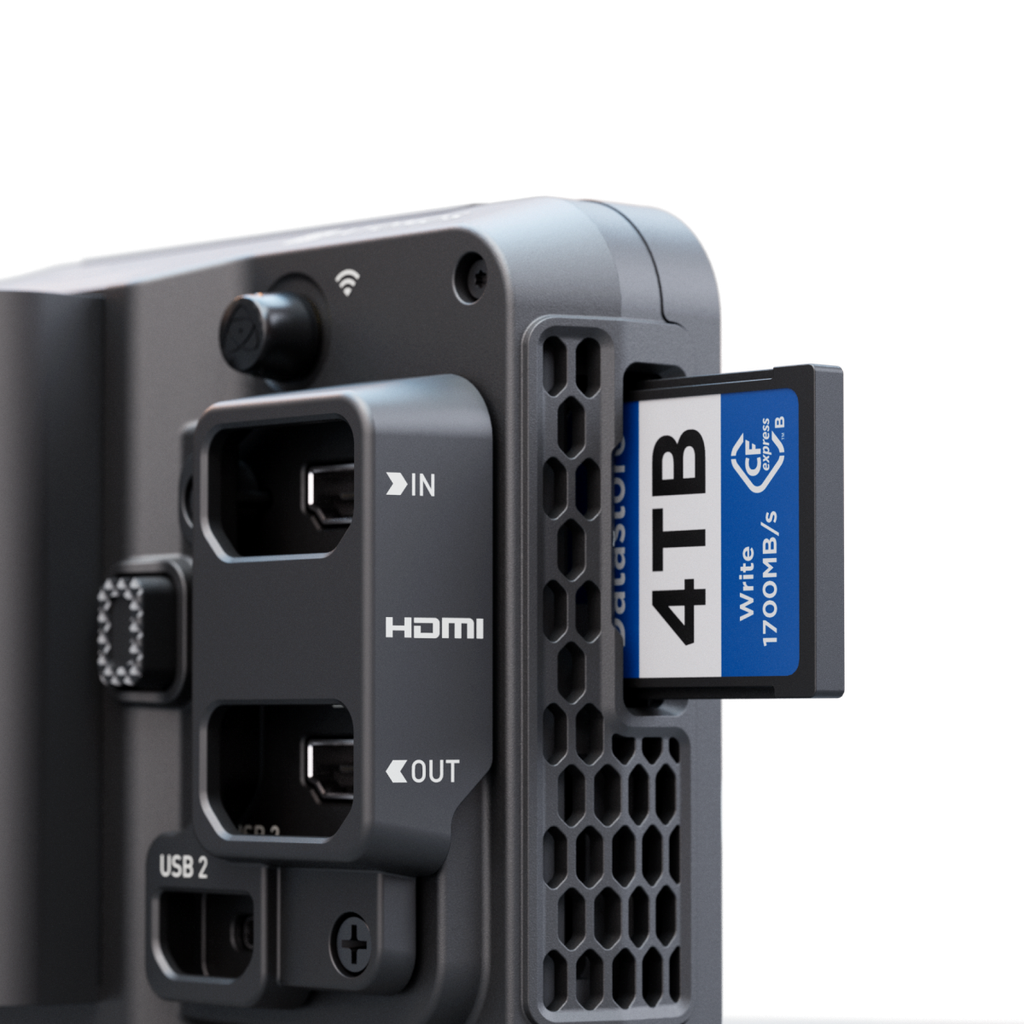

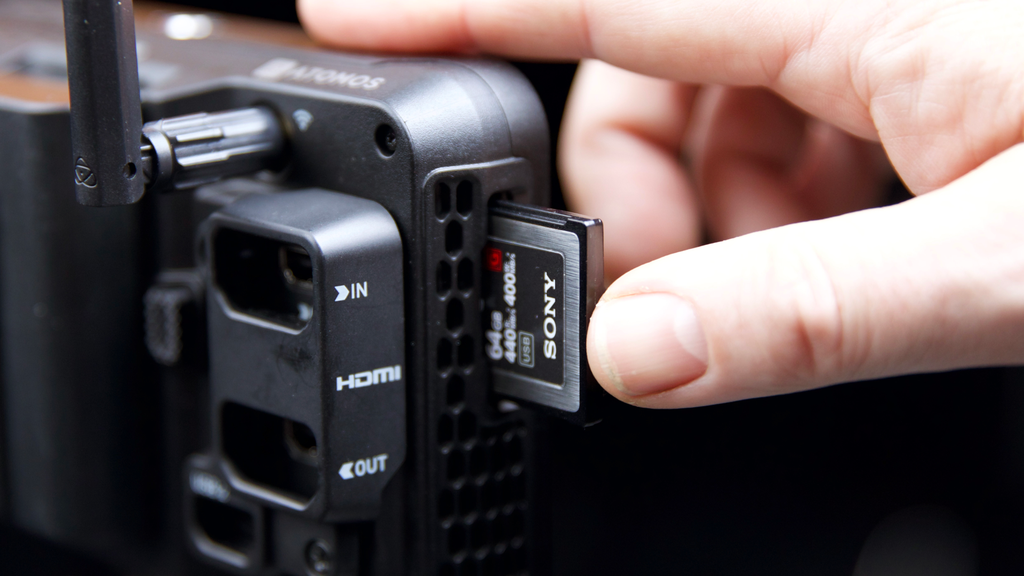

Ninja TX introduces ultra-fast CFexpress Type B recording for higher resolutions and greater reliability, along with dual USB-C ports for direct-to-disk recording, screen calibration, and future device compatibility. The unit supports USB-C Power Delivery for flexible power options from batteries, adapters, or power banks.
Integrated Wireless Workflows
With built-in Wi-Fi 6E, Ninja TX enables automatic Camera-to-Cloud (C2C) uploads to ATOMOSphere, Frame.io, and Dropbox. It also includes NDI 6 HX3 transmission and reception capabilities—making it a powerful asset for live production, remote collaboration, and rapid delivery.
Precision Monitoring Anywhere

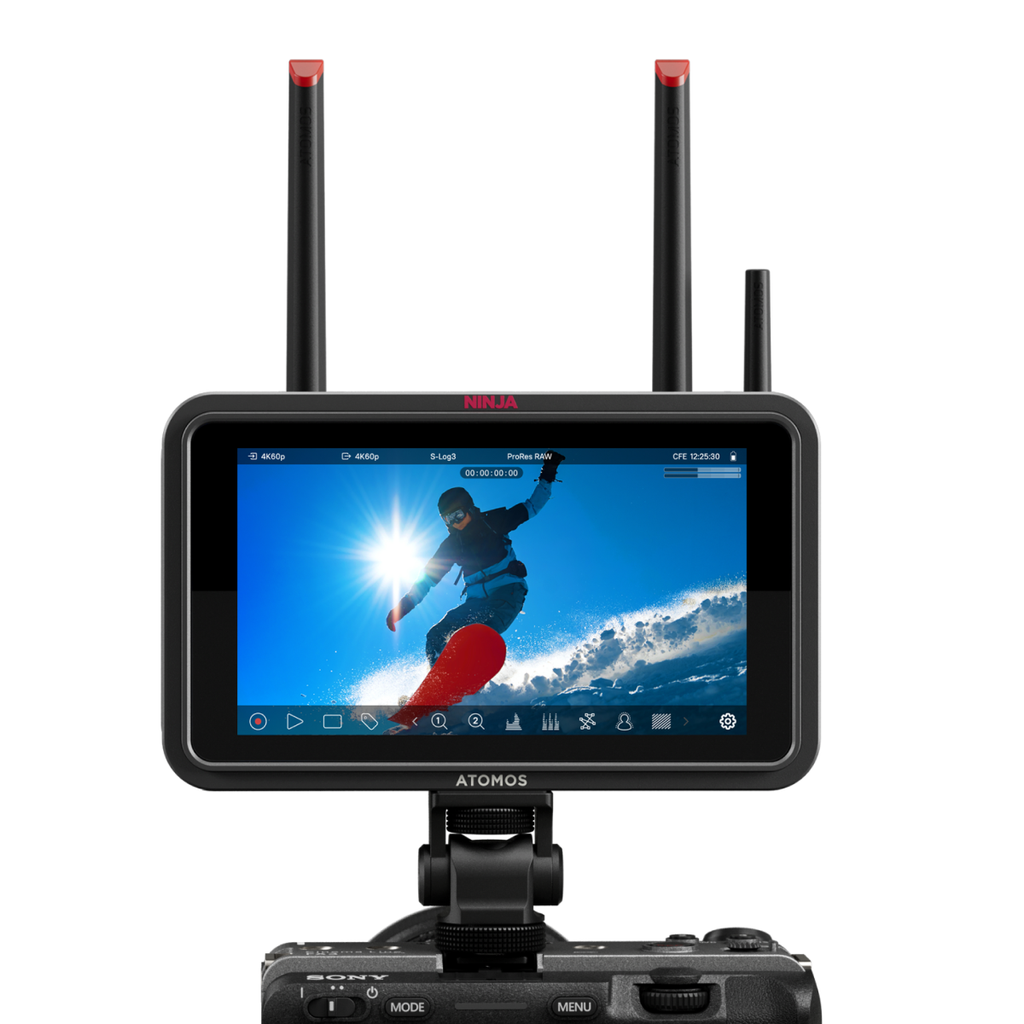

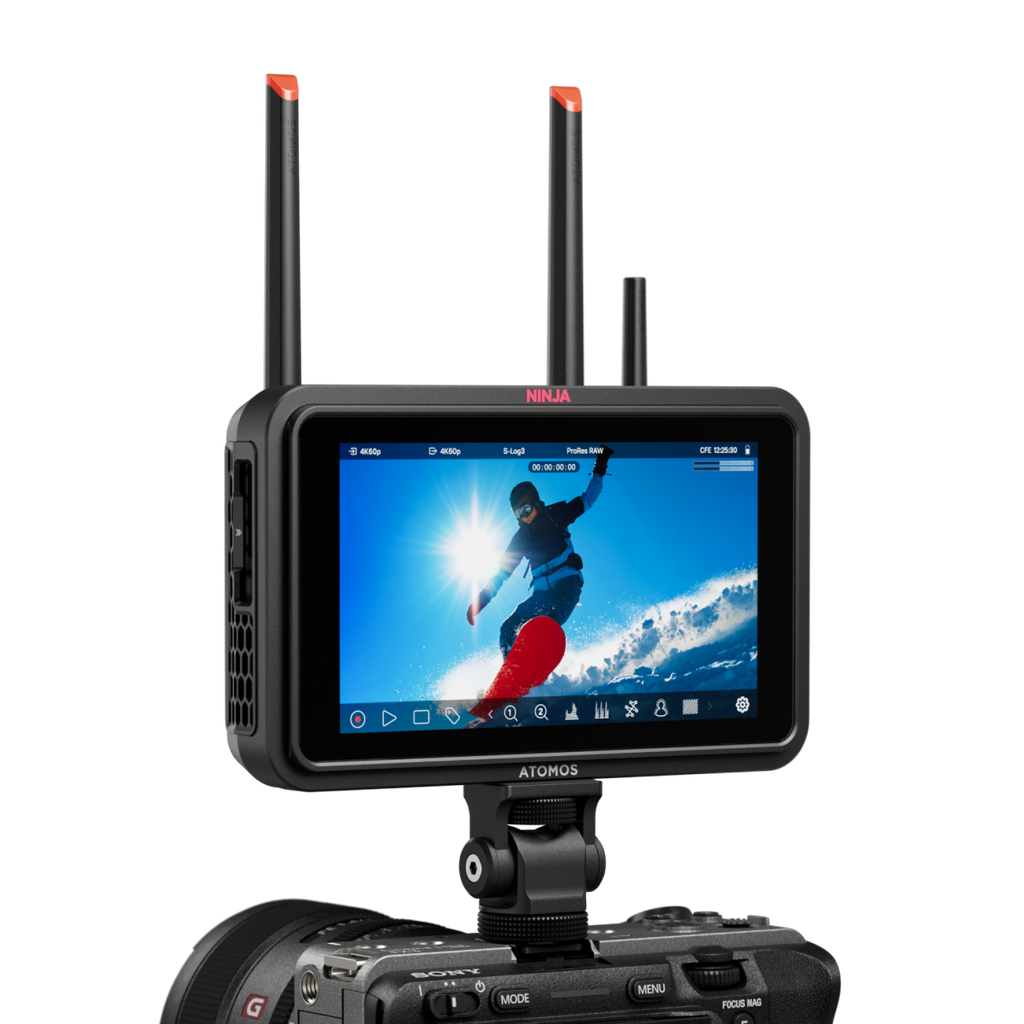

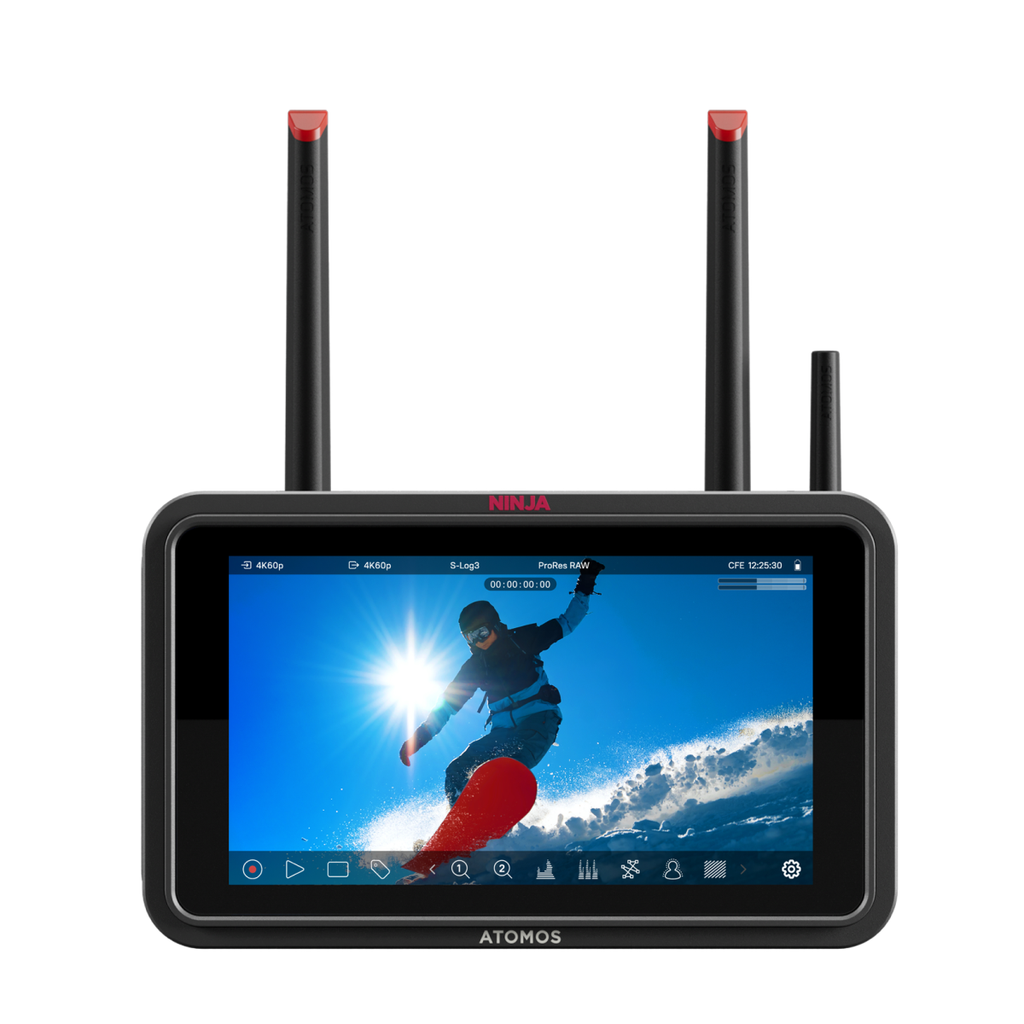

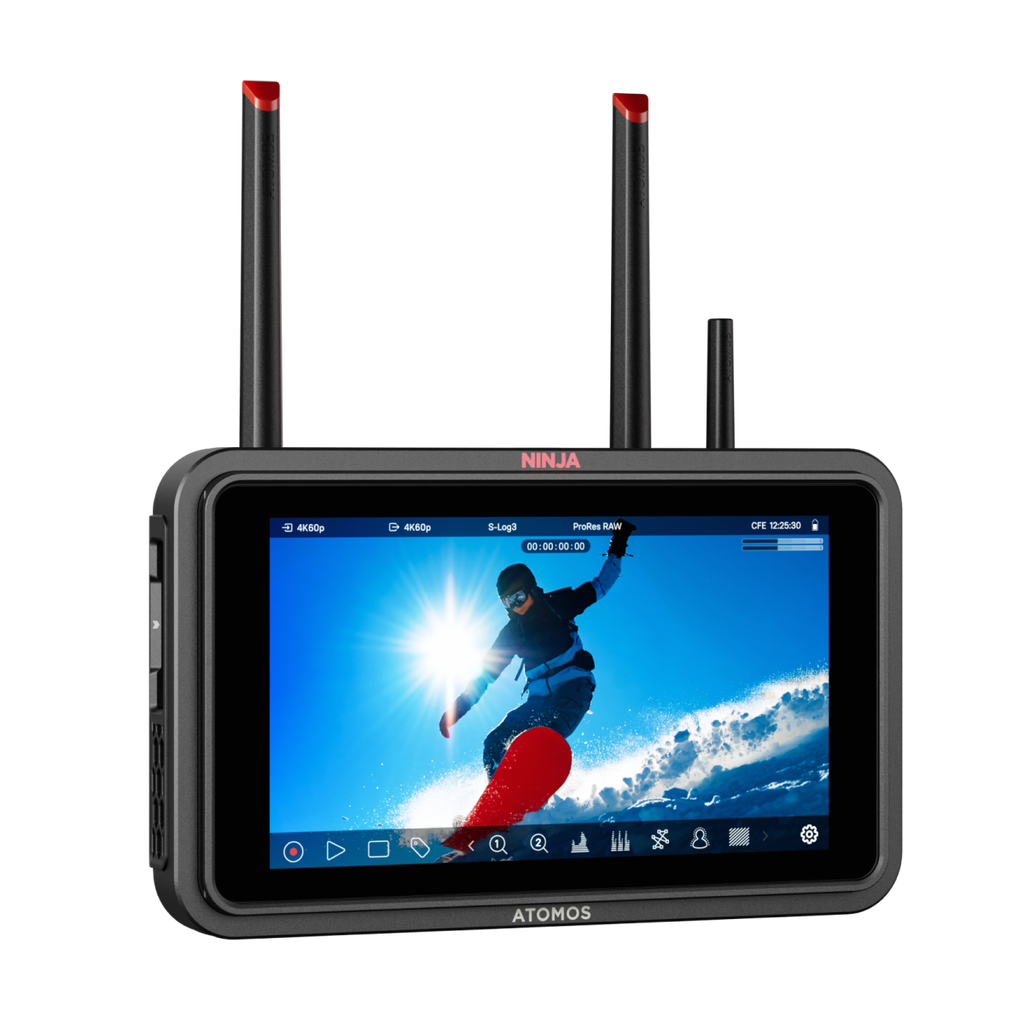

The 5-inch HDR touchscreen display delivers 1500 nits of brightness and 10-bit color depth, ensuring accurate image review even in bright daylight. Atomos' renowned suite of professional tools for exposure, focus, and framing help ensure you always get the perfect shot.
Robust, Portable, and Future-Proof

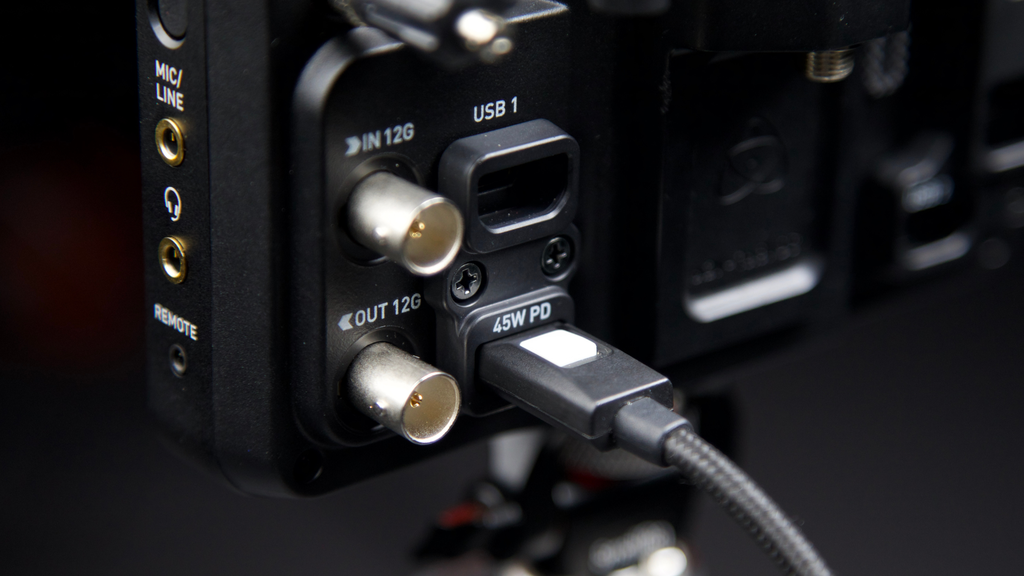

Ninja TX is built for durability and versatility. The new locking cable system for HDMI and USB-C ensures secure connections in challenging environments. Cross conversion from HDMI to SDI (and vice versa) offers unmatched flexibility in hybrid workflows. Over-the-air firmware updates, universal codec support (including Apple ProRes/RAW, DNx, H.265/H.264, and NDI), and the new AtomOS platform make the Ninja TX a future-ready choice.
- Record in Apple ProRes/RAW up to 8Kp30

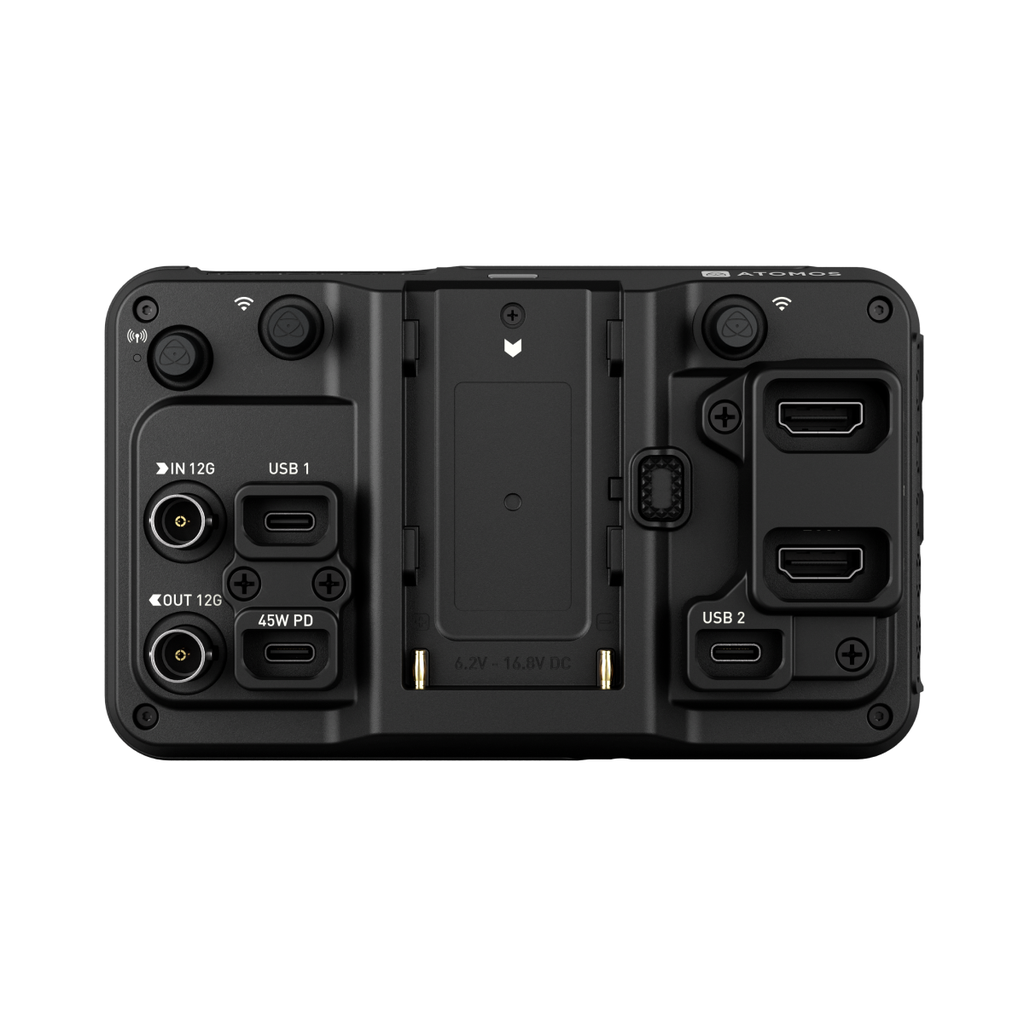

- HDMI 2.0 and 12G-SDI I/O with loop-through support
- Capture to CFexpress Type B or external USB-C storage
- Integrated NDI 6 HX3 TX/RX for broadcast workflows
- Built-in Wi-Fi 6E for cloud upload and timecode sync
- Improved cooling with significantly less fan noise and better overall performance
- AirGlu timecode over RF and Bluetooth
- 1500nit daylight-viewable HDR display
- Powered via USB-C PD, NP-F battery, or AC adaptor
- Includes locking HDMI and USB-C cable adaptors
| Dimensions (W x H x D mm) | 151mm x 92mm x 36mm |
| Weight | 400gms |
| Mount points | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
| Environmental | |
| Ambient operating temperature | Up to 40 degrees Celsius |
| Construction | |
| Body | Aluminium with ABS plastic |
| Cooling | Actively controlled fan and heat sink |
| Power | |
| Input voltage | 6.2V to 16.8V DC |
| Operating power | Up to 30W |
| Multi-function button | Power / lock screen |
| Continuous power | Via NP-F battery or USB-C PD Power |
| DC in connector | Via Battery Eliminator (optional) |
| DTAP | Up to 13W |
| USB PD IN | 45W capable, power supply required |
| USB PD OUT | Up to 13W |
| Display | |
| Size | 5.2-inch |
| Resolution | 1920 x 1080 |
| Backlight Type | Edge lit |
| Brightness (cdm2 / Nits) | 1500 |
| Aspect ratio | 16:9 |
| Color Gamut | Rec.709 |
| Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable |
| Color Pipeline | |
| Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube format |
| 3D LUT Down Stream | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | Native / HLG / PQ / 3D LUT |
| HDR Output Conversion | Log / HDR to HLG / PQ |
| Video Input | |
| HDMI | 1 x HDMI (2.0) up to 4K60P + RAW |
| Locking port | Optional |
| SDI | 12G |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
| Video Output | |
| HDMI | 1 x HDMI (2.0) up to 4K60P |
| Locking port | Optional |
| SDI | 12G |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
| Metadata | |
| HDMI | RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut |
| Network | |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 x USB-C 3.0 |
| Connectivity | |
| Bluetooth | Yes |
| LANC | Yes |
| Video Signal Conversion | |
| HDMI to SDI | Yes |
| SDI to HDMI | Yes |
| Audio In/Out | |
| HDMI | 8-channel, 24-bit |
| SDI | 12-channel, 24-bit |
| Analogue Audio Line In | 3.5mm headphone jack, 2-channel input |
| Headphone Out | 3.5mm headphone jack, 2-channel |
| Timecode | |
| Embedded | HDMI & SDI |
| Time of day | Yes |
| Reference / Genlock input | No |
| LTC | No |
| Wireless AirGlu RF Server and Client | Yes |
| Wireless AirGlu BT Server | Yes |
| Resolution & Frame Rates (Record, Monitor & Playback) | |
| RAW | Up to 6Kp60/8Kp30 |
| 4K DCI | 23.98/24/25/29.9/30/50/59.94/60p |
| 4K UHD | 23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2048 x 1080 | Yes |
| 1080p | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
| 1080 PsF | Converted to P and looped out PsF |
| 1080i | 50/59.94/60i |
| 720p | 50/59.94/60p |
| Supported Media | |
| CF Express | Atomos certified CF Express type B media |
| USB | Atomos certified USB 3.0 media |
| File System | ExFAT |
| Codecs | |
| Apple ProRes RAW | ProRes RAW, ProRes RAW HQ |
| Apple ProRes | LT, 422, 422 HQ |
| Avid DNxHD | DNxHD 220x, 220, 145, 36 |
| Avid DNxHR | LB, SQ, HQ, HQX |
| H.265 | LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0 |
| Playback | |
| Playlist | Yes - create customer playlists from full or sub-clips |
| Loop | Yes, with user-customizable in/out markers |
| Apple ProRes RAW | Yes - recorded clips |
| Apple ProRes | Yes, with linear PCM audio |
| Avid DNx | Yes, with linear PCM audio |
| H.265 | Yes |
| Recording | |
| Pre-roll | ProRes, DNxHD only |
| Timelapse | Yes |
| Simultaneous Proxy Record | Yes |
| On-screen Monitoring Tools | |
| Waveform | 3 sizes – adjustable opacity & brightness |
| RGB parade | 3 sizes – adjustable opacity & brightness |
| Vectorscope | 2 sizes – adjustable opacity & brightness |
| 1 x Zoom | Yes. 1:1 pixel mapping for 4K |
| 2 x Zoom | Yes |
| Focus peaking | Colour selected / threshold setting / colour / mono / edges only |
| Atomos False Color | Yes, with scale |
| ARRI False Color | Yes |
| EL ZONE | Yes |
| Zebra | Yes, adjustable |
| Isolate color channel | Blue Only |
| Cine Frame Guides | Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides | Presets for 9:16, 1:1, 191:1, 4:5 |
| Onion Skin | Yes |
| Safe areas | Action and graphic |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
| Display Flip | Vertical only |
| Onboard Signal Processing | |
| Pulldown removal | 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD | Loop out - 4K UHD to FHD |
| DCI Crop | Loop out - 17:9 to 16:9 crop |
| Remote Control | |
| HDMI | Auto HDMI trigger, supported protocols - Canon, Sony, Atomos |
| SDI | SDI trigger camera selectable |
| Serial 2.5mm Jack | Calibration via optional USB to serial cable |
| AirGlu BT | Yes |
| AirGlu RF | Yes |
| Camera to Cloud | |
| ATOMOSphere | Direct progressive upload supported (20GB free storage) |
| Adobe Frame.io | Direct progressive upload supported (separate purchase) |
| Dropbox | Direct progressive upload supported (separate purchase) |
| What’s in the Box | |
| Accessories included | Ninja TX monitor-recorder, USB-C locking cable adaptor, HDMI locking cable adaptor, Wi-Fi antenna, 5x antenna tips (black, white, yellow, green, red), AirGlu antenna, antenna caps, USB-C locking cable (45cm), Quick Start Guide. |
| Box dimensions (W x H x D mm) | 190mm x 130mm x 75mm |
| Box weight | 665gms |
- Ninja TX monitor-recorder,
- USB-C locking cable adaptor,
- HDMI locking cable adaptor,
- Wi-Fi antenna,
- 5x antenna tips
- (black, white, yellow, green, red),
- AirGlu antenna, antenna caps,
- USB-C locking cable (45cm)
- Quick start guide
