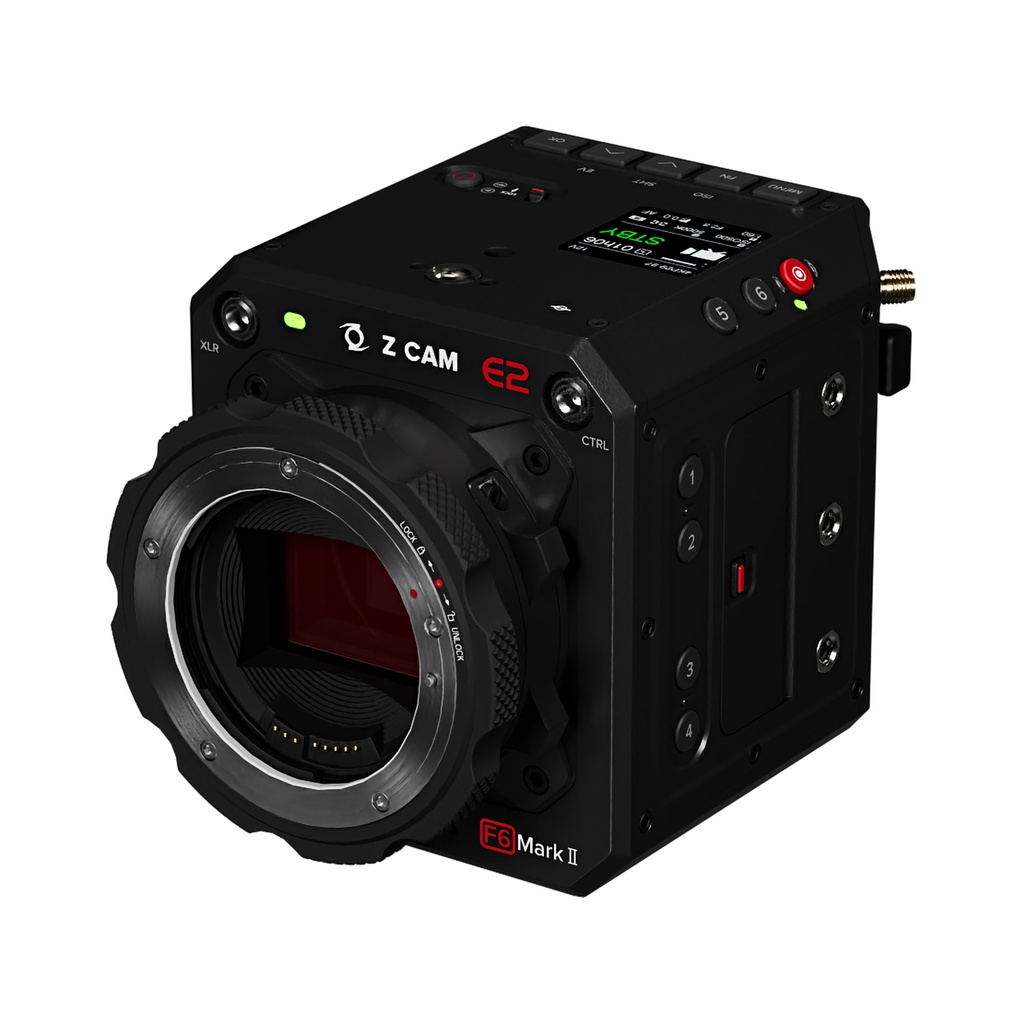

Z CAM E2-F6 Mark II FULL FRAME 6K CINEMA CAMERA
Art.Nr. ZCE2F6M2E2-F6 Mark II Full Frame 6K Cinema Camera
Die Z CAM E2 Mark II Serie repräsentiert die neueste Generation professioneller Cinema-Kameras und überzeugt durch herausragende Bildqualität, robuste Bauweise und vielseitige Einsatzmöglichkeiten. Mit ihrer kompakten und modularen Konstruktion lassen sich die Kameras flexibel an unterschiedlichste Anforderungen anpassen. Sie bieten Unterstützung für eine Vielzahl von Aufnahmeformaten, darunter ProRes 4:2:2, H.265 und ZRAW, und sind mit fortschrittlichen Konnektivitätsfunktionen wie HDMI 2.0 und Gigabit-Ethernet ausgestattet, was Live-Streaming und Fernsteuerung ermöglicht.
Die Z CAM E2-F6 Mark II ist mit einem Vollformat-CMOS-Sensor ausgestattet, der eine beeindruckende Auflösung und Vielseitigkeit bietet. Sie ermöglicht 6K-Aufnahmen mit bis zu 60 Bildern pro Sekunde und 4K mit bis zu 120 Bildern pro Sekunde. Mit einem Dynamikumfang von 15 Blendenstufen liefert sie außergewöhnliche Details in Schatten und Lichtern.
Der native ISO-Bereich ab 400 macht die Kamera besonders leistungsstark bei schwachem Licht. Standardmäßig mit einem EF-Mount ausgestattet, unterstützt sie optionale Objektivanschlüsse wie PL, M und MFT, um eine breite Palette an Cine- und Fotoobjektiven zu nutzen.
Die Kameras der E2 Mark II Serie zeichnen sich durch einen erweiterten Dynamikumfang, native Dual-ISO-Funktionalität und die Möglichkeit aus, 6K- und 4K-Videos mit hohen Bildraten aufzunehmen. Sie verfügen über eine präzise Genlock-Synchronisation für Mehrkamera-Setups und nutzen CFexpress Typ-B-Karten für schnelle und zuverlässige Datenspeicherung. Dank der Unterstützung von Power over Ethernet (PoE+) und eines integrierten Gyroskopsensors für Stabilisierung sind sie eine optimale Wahl für anspruchsvolle Filmprojekte.
- Vollformat-CMOS-Sensor für herausragende Bildqualität
- 6K-Videoaufnahme mit bis zu 60 fps, 4K mit bis zu 120 fps
- Dynamikumfang von 15 Blendenstufen
- Unterstützung von ProRes 4:2:2, H.265 und ZRAW
- Nativer ISO-Bereich ab 400 für ausgezeichnete Leistung bei schwachem Licht
- Standardmäßiger EF-Mount, kompatibel mit optionalen PL-, M- und MFT-Mounts
- Integrierter Gyroskopsensor für verbesserte Stabilisierung
- Unterstützung von Power over Ethernet (PoE+) und Genlock für Mehrkamera-Setups
- Speicherung auf CFexpress Typ-B-Karten
Camera
Sensor Type
Full Frame CMOS Sensor
Sensor Size
35.9 x 24.0 mm (Diagonal 43.3mm)
Effective Pixels
24.63M
Dynamic Range
15 stops
Lens Mount
EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone
Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate
"30fps max at Open Gate (6064x4040)
48fps max at C6K (6064x3196)
60fps max at 6K 2.4:1 (6064x2560 )
48fps max at 6K (5760x3240)
30fps max at 5K 4:3 (5376x4032)
60fps max at C5K (5120x2700)
30fps max at 5K 6:5 (4848x4040)
60fps max at 5K (4800x2700)
50fps max at 4K 4:3 (4096x3072)*
30fps max at C4K 3:2 (4096x2732)
90fps max at C4K (4096x2160) *
120fps max at C4K 2.4:1 (4096x1728)
30fps max at 4K 6:5 (4080x3400)
90fps max at 4K (3840x2160)
170fps max at S16 16:9 (2112x1188)
170fps max at 1080P (1920x1080)
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode."
Video Encoder
H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI
ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth
10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture
Settings
ISO
Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 2500
Shutter
"Shutter Speed: Auto, Manual (1”~ 1/8000”)
Shutter Angle: Auto, Manual (1° ~ 360°)"
White Balance
Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness / Gamma Setting
Image Config
Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code
Current Time / Manual Input / External Input
Connectivity
HDMI
HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI
3G-SDI
Timecode In
LTC Timecode Input via BNC
Genlock
BB/Tri-Level Genlock Input via BNC
USB
USB 3.0 Type C for camera control & data transfer only
Remote Port
2.5 mm jack socket (Sony LANC compatible)
Audio In
3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out
3.5 mm stereo jack socket
Wi-Fi
5G, up to 802.11n, external antenna port
CTRL
Serial port
Ethernet
Gigabit Ethernet port for control, setting & live streaming
Power
Battery
Mini V-Lock 14.8V (Battery not included)
Power Input
DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX)
DC 12V 3A max (2-pin LEMO socket)
Power Consumption
50W maximum, not inclusive of AUX power consumption
Physical
Camera Body
Aluminum Alloy
Weight - Camera (w/o Lens)
1.21kg (with EF mount)
Weight - Full Package
1.55kg
Dimensions (HxWxL) - Camera
105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (EF Mount)
Dimensions (HxWxL) - Package
145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
1 x Z CAM E2-F6 Mark II
1 x LEMO Power Cable
1 x Lens Mount Cap
