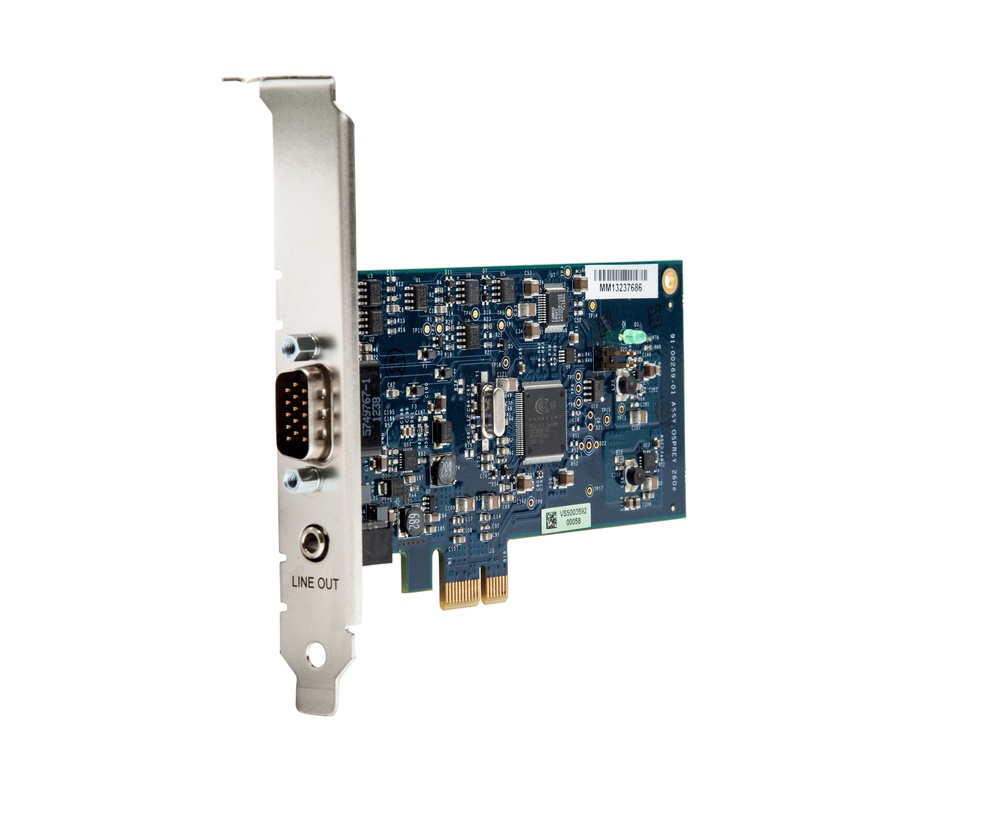

OSPREY 260e
Art.Nr. VS-OS-95-00473Osprey 260e Analoge Video mit Stereo Audio Capture PCIe-Karte
Die Osprey 260e Video-Capturekarte ist eine Single-Channel-Karte, die Composite, Component und S-Video Inputs unterstützt. Außerdem kann Audio in balanced oder unbalanced Stereo mit aufgezeichnet werden.
Single Channel mit Switchable Inputs
- 1x Composite (BNC x 1)
- 1x S-Video (mini-DIN)
- 1x Component (BNC x 3)
Audio Inputs
- Balanced stereo (XLR x 2)
- Unbalanced stereo (RCA x 2)
Audio Loop out
- Stereo (3.5 mm)
Lieferumfang:
- Osprey 260e Videokarte
- Y/C zu S-Video Adapter
- Breakoutkabel
- Low-Profile Bracket
Single Channel with Switchable Inputs
1x S-Video (mini-DIN)
1x component (BNC x3)
Balanced Stereo (XLR x2)
Stereo (3.5mm)
Multiple Card Support
Deploy two or more cards in a single PC chassis for maximum versatility.
Driver Support
Microsoft® DirectShow® drivers are available for compability with most software.
Open Source Linux V4L drivers available
Windows SDK lets you create custom applications.
Driver Based Pre-Processing
Closed-caption extracting/rendering
Logo/bitmap overlay
Scaling, cropping, de-interlacing and inverse telecine
*Windows DirectShow only
Slots: x1, x4, x8, x16
PCIe 1.1
Video Input
Component
S-Video
Video Connector
Y/C (BNCx2) (BNC to min-DIN adapter included)
Component (BNC x3)
Video Modes
NTSC/PAL
720x480 29.97, 30/i (NTSC)
852x480, 29.97, 30/i (NTSC Wide Screen)
720x576 25/i (PAL)
Wide Screen Signaling (WSS)
Audio Input
Unbalanced Stereo line (3.5mm)
Audio Connector
Unbalanced (3.5 mini phono) stereo
Dimensions
Low profile/ half length
Weight
Power Consumption
Temperature
Operating: 0°C – 40°C
Non operating: -40°C – 75°C
Rel
Humidity
Operating: Between 5% and 80% (noncondensing)
Non operating: 95% RH (noncondesning); gradient 30% per hour
Warranty
1 year limited hardware warranty
Compliance
DE, FCC, ROHS, WEEE
1x Y/C to S-Video adapter
1x Breakout Cable
1x Low Profile Bracket
