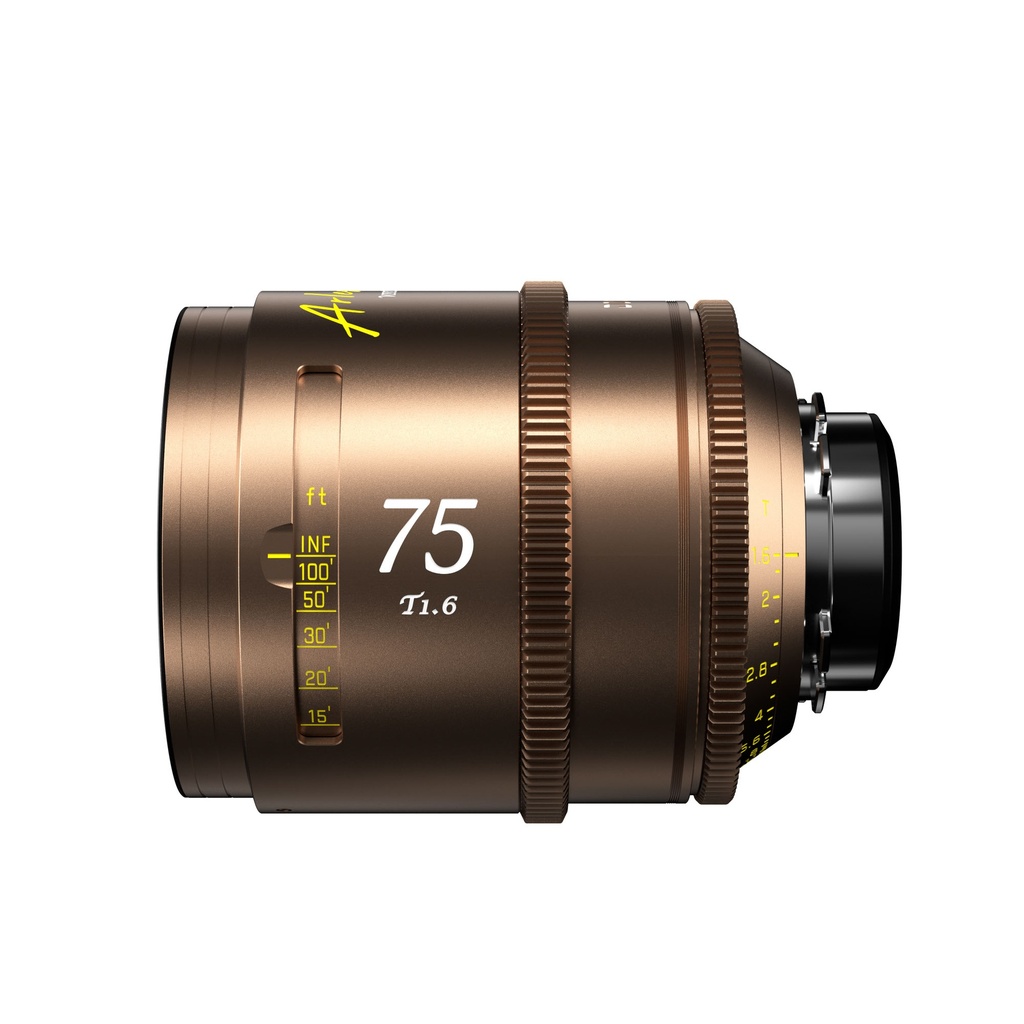

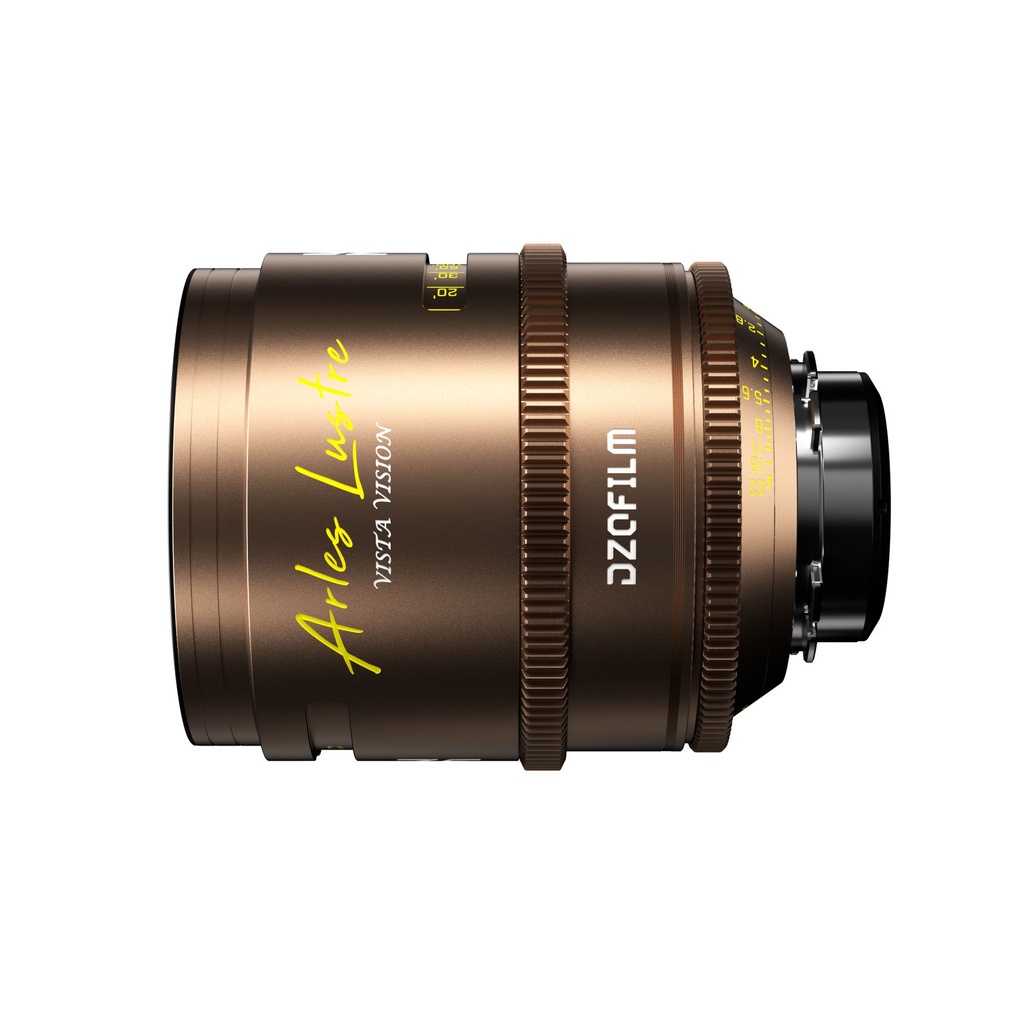

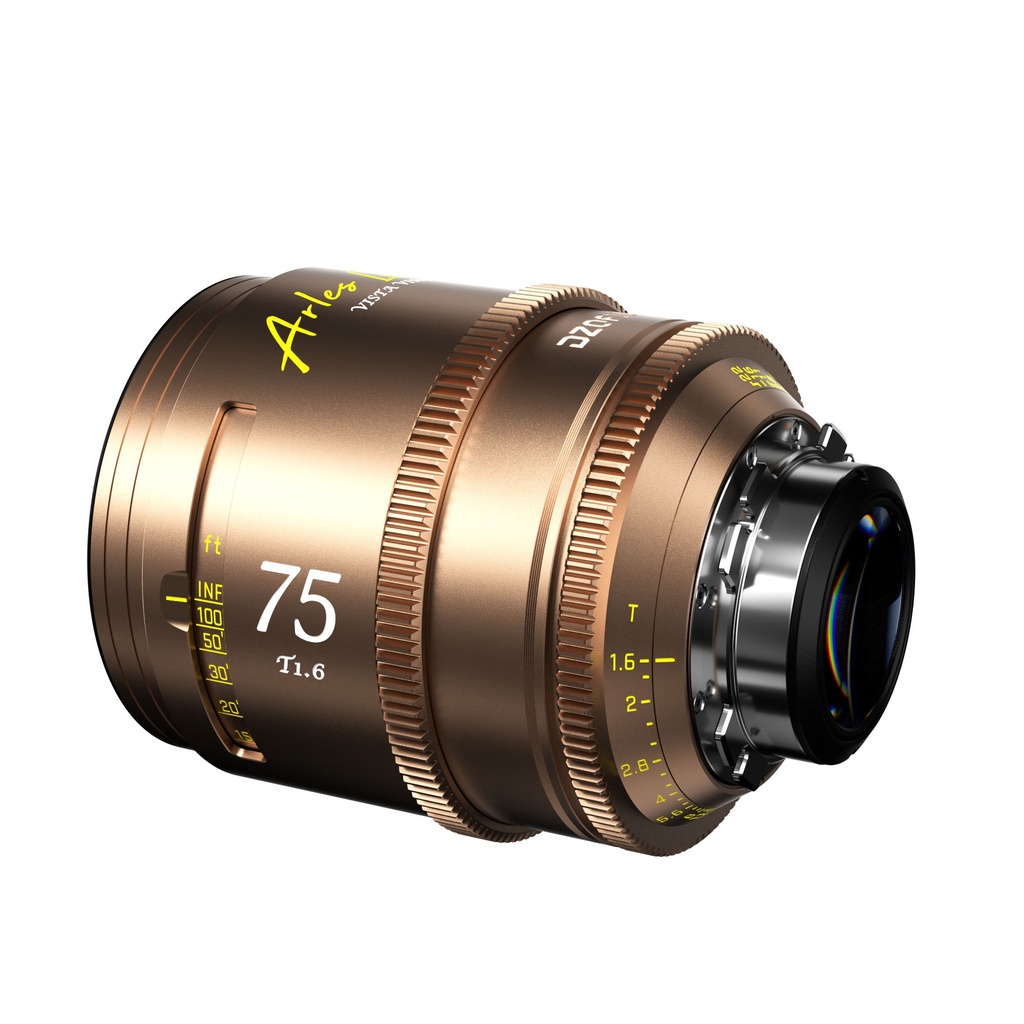

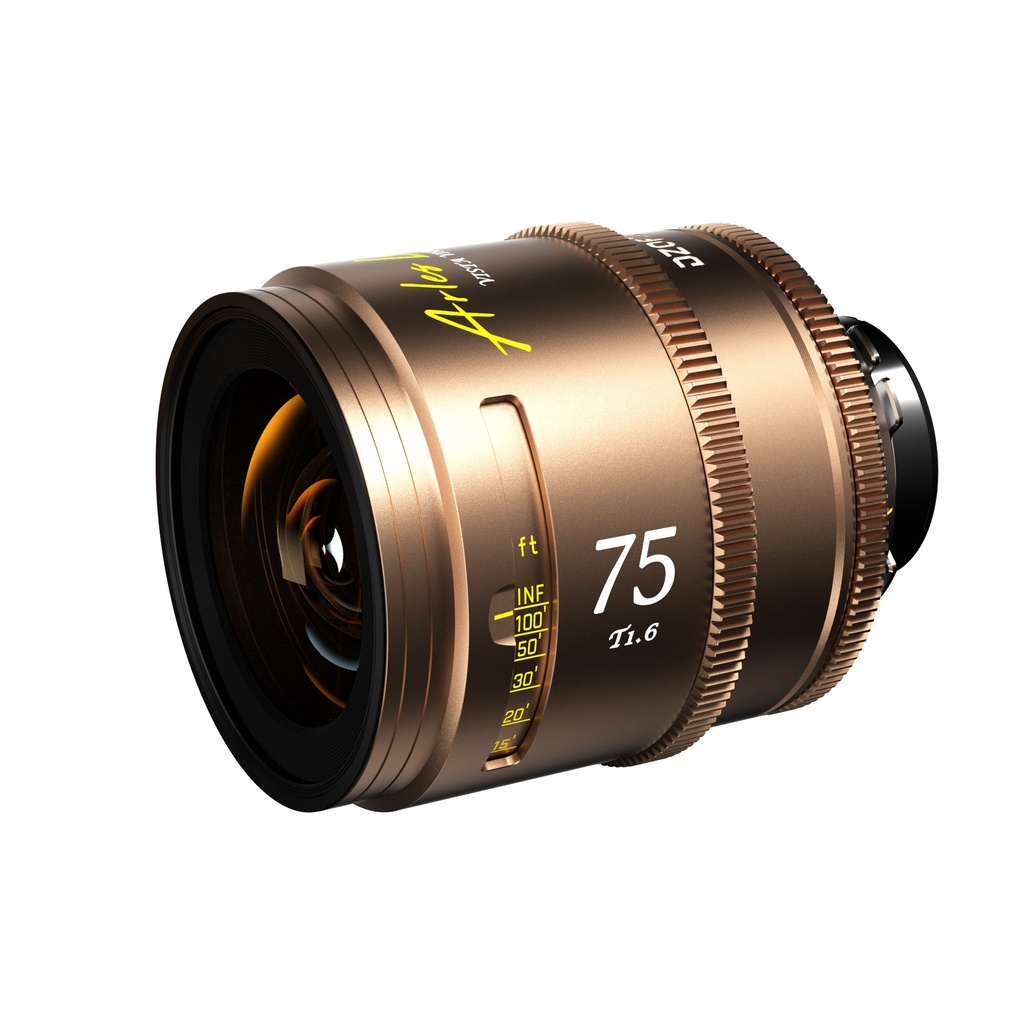

DZOFILM Arles Lustre 75mm T1.6 FF/VV Prime Cine Lens for PL (metric)
Art.Nr. DZO-APG75PLMDZOFILM Arles Lustre 75mm T1.6 FF/VV Prime Cine Objektiv mit PL-Mount und metrischer Skala
| Focal Length | 14mm | 21mm | 25mm | 35mm | 40mm | 50mm | 75mm | 100mm | 135mm | 180mm |
|---|---|---|---|---|---|---|---|---|---|---|
| Colour |
Desert Gold |
|||||||||
| Mount |
PL / EF |
|||||||||
| Aperture |
T2.2–T22 |
T1.6–T22 |
T2.2–T22 |
T2.2–T22 |
T2.8–T22 | |||||
| Image Circle |
⌀ 46.5mm (VV/FF) |
|||||||||
| Construction of Optics | 15 Elements in 12 Groups | 14 Elements in 12 Groups | 14 Elements in 12 Groups | 13 Elements in 11 Groups | 13 Elements in 11 Groups | 13 Elements in 9 Groups | 13 Elements in 9 Groups | 13 Elements in 8 Groups | 12 Elements in 8 Groups | 12 Elements in 9 Groups |
| Flange Distance |
52mm (PL) / 44mm (EF) |
|||||||||
|
Angle of view (diagonal, horizontal, vertical) |
116° / 109° / 72° | 96° / 89° / 54° | 87° / 80° / 47° | 67° / 61° / 34° | 61° / 56° / 31° | 50° / 45° / 25° | 34° / 30° / 16° | 26° / 23° / 12° | 19° / 17° / 9° | 15° / 13° / 7° |
|
Close Focus (from sensor plane) |
0.28m / 11in | 0.33m / 1ft1in | 0.35m / 1ft2in | 0.4m / 1ft4in | 0.5m / 1ft7in | 0.75m / 2ft6in | 0.75m / 2ft6in | 0.9m / 2ft11in | 0.98m / 3ft3in | 1.07m / 3ft6in |
| Iris Control | Manual (65°) | Manual (77°) | Manual (77°) | Manual (80°) | Manual (83°) | Manual (80°) | Manual (82°) | Manual (90°) | Manual (88°) | Manual (88°) |
| Focus Control |
Manual (270°) |
|||||||||
| Front Dia. |
⌀ 95mm / 3.74" |
|||||||||
|
Length (from lens front to flange plane) |
121.8mm / 4.79" (PL) |
130.8mm / 5.18" (PL) |
||||||||
| Iris Blade |
16 |
|||||||||
| Filter Size |
M86 |
|||||||||
| Gear Pitch |
0.8 Mod |
|||||||||
| Weight (Product) | ≈1646g | ≈1500g | ≈1490g | ≈1650g | ≈1633g | ≈1688g | ≈1662g | ≈1830g | ≈1846g | ≈1675g |
1 x DZOFILM Arles Lustre 75mm
1 x Bayonet replacement tool kit
1 x Shim kit
1 x Y-type support base
2 x Support base extension rod
