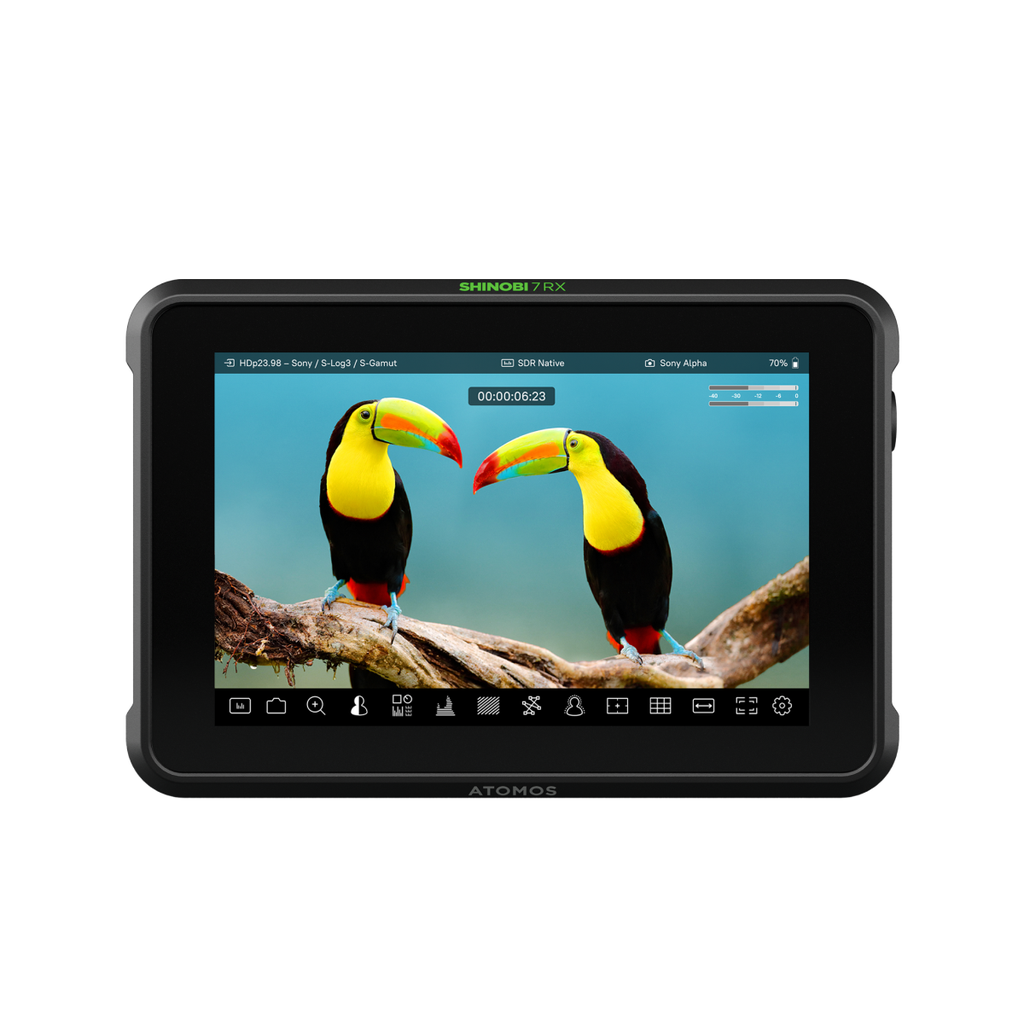

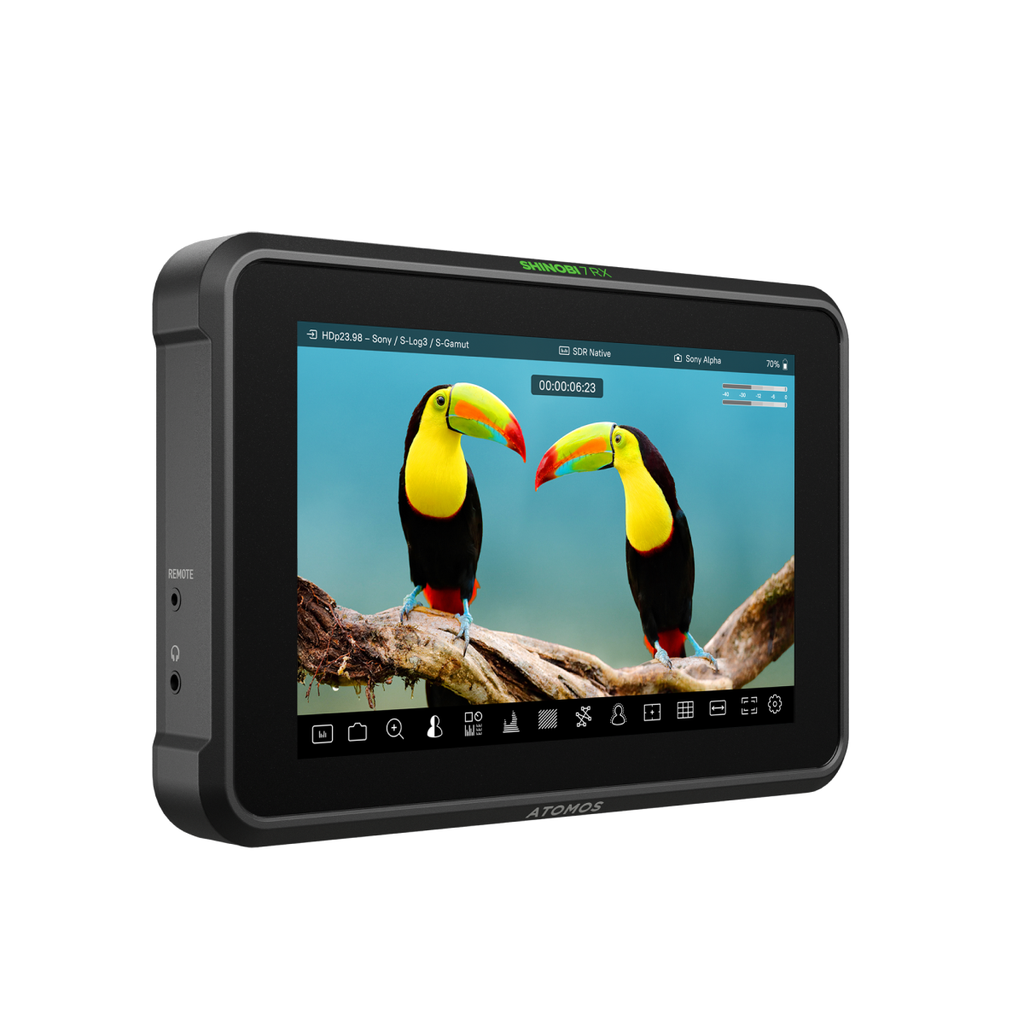

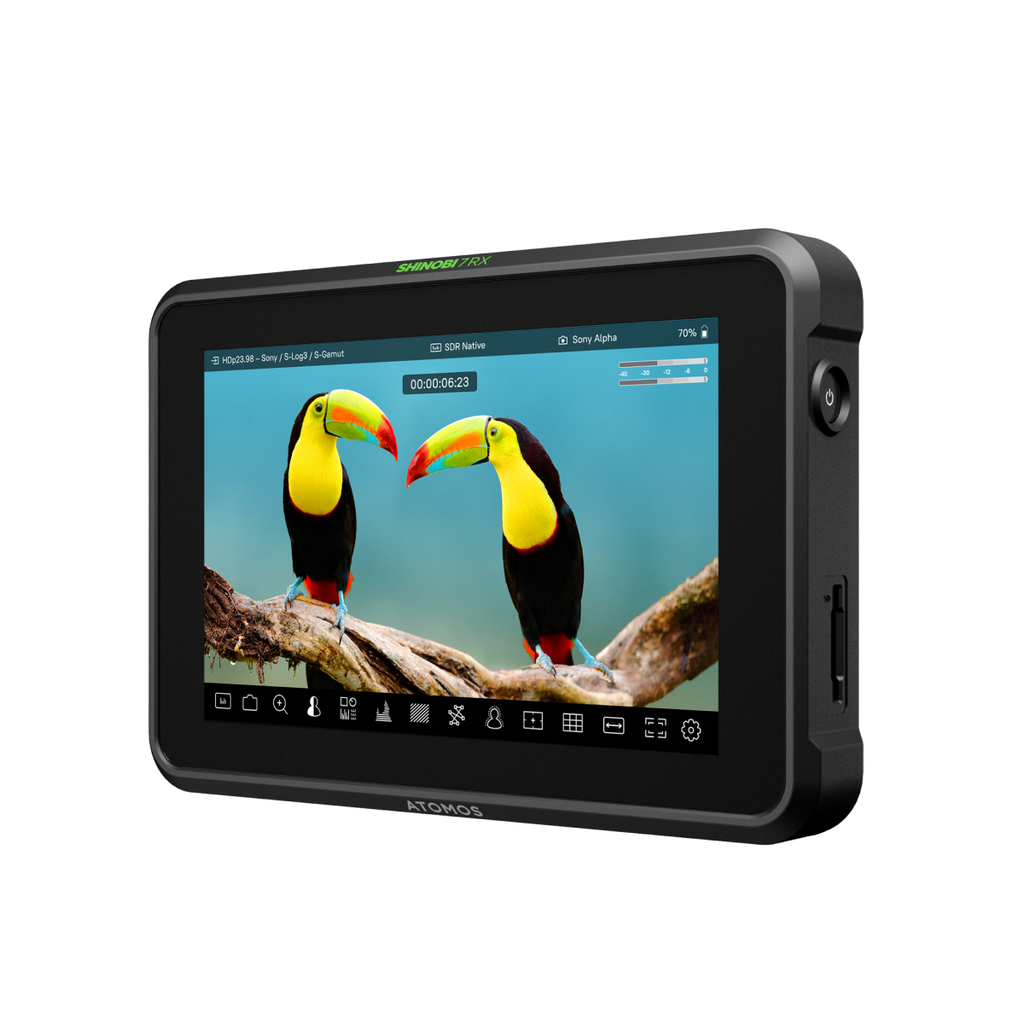

SHINOBI 7 RX
Art.Nr. ATOMSHBRX17-Zoll HDR-Monitor mit 2200 nits und Kamerasteuerung
Der Shinobi 7RX kombiniert ein großes 7" HDR-Display mit 2200 nits Spitzenhelligkeit und den leichten Monitorfunktionen der Shinobi-Reihe. Er eignet sich perfekt für den Einsatz in hellsten Umgebungen und unterstützt Signalübertragung bis 4Kp60 via HDMI oder HDp60 via 3G-SDI.
Dank USB-C lassen sich Kameras von Canon, Fujifilm, Nikon, Panasonic und Sony direkt steuern, Z CAM-Kameras über ein optionales USB-C-zu-Serial-Kabel.

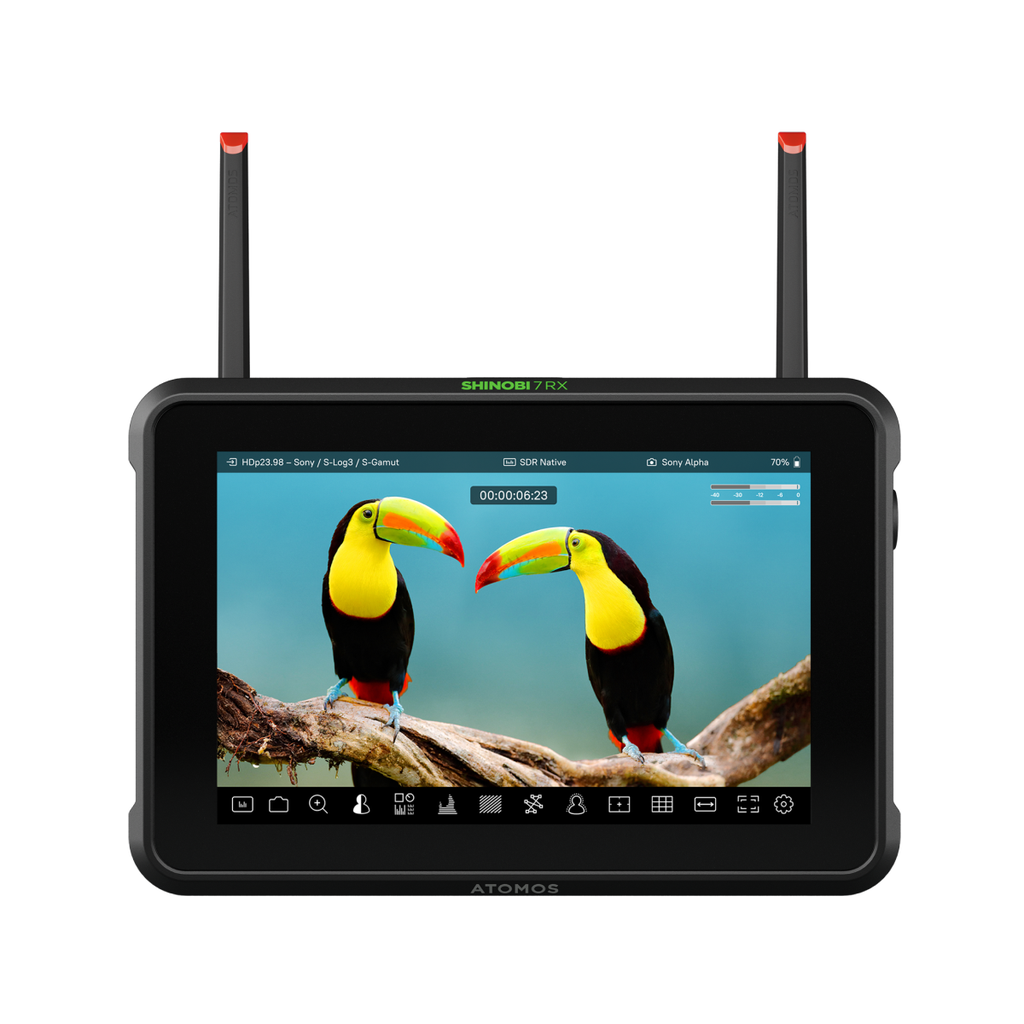

Die integrierte Wi-Fi-Konnektivität erlaubt die Nutzung mit dem Atomos TX-RX-System oder als RTSP H.264 Stream – ideal als Regie-, Focus Puller- oder Programmonitor.
- 7" HDR-Display mit 2200 nits Spitzenhelligkeit – auch im Sonnenlicht klar sichtbar
- Unterstützt 4Kp60 über HDMI und HDp60 über 3G-SDI
- Kamerasteuerung via USB-C für Canon, Fujifilm, Nikon, Panasonic, Sony + Z CAM (optional)
- Wi-Fi 6E für TX-RX-Systeme von Atomos oder RTSP H.264 Streaming
- Vielfältige Monitoring-Tools: Waveform, Vectorscope, Histogram, RGB Parade
- 3D LUTs (.cube, 17/33 Punkte) + HDR-Modi (HLG/PQ)
- Anamorphic Desqueeze & Frame Guides (Kino + Social Media)
- Kompakte Bauweise (198 × 133 × 39 mm, 580 g) mit passiver Kühlung
- Flexible Stromversorgung: NP-F Akku, USB-C PD, DC-In (optional)
General
- Dimensions (W × H × D)
- 198 × 133 × 39 mm
- Weight
- 580 g (excluding batteries & antennas)
- Mount Points
- 1 × anti-rotation 1/4-inch / 3/8-inch (top & bottom)
Environmental
- Operating Temperature
- Up to 40 °C
Construction
- Body
- ABS polycarbonate
- Cooling
- Passive heat sink
Power
- Input Voltage
- 6.2V – 16.8V
- Operating Power
- 5.8V – 7.2V
- Multi-Function Button
- Power / Lock screen
- Continuous Power
- Via NP-F battery or USB-C PD
- DC-In Connector
- Battery Eliminator (optional)
- DTAP
- Up to 13W
- USB PD IN
- 45W capable (requires power supply)
- USB PD OUT
- Up to 13W
Display
- Size
- 7-inch HDR screen, 2200 nits calibrated brightness
- Resolution
- 1920 × 1080
- Backlight
- Edge-lit
- Brightness (cd/m² / nits)
- 2200
- Aspect Ratio
- 16:9
- Color Gamut
- Rec.709
- Calibration Support
- Calibrite Display Pro / Display Plus (PC/Mac) via Atomos LANC cable
Color Pipeline
Gamma
Sony S-Log / S-Log2 / S-Log3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160–1600, Panasonic V-Log / HLG, JVC J-Log, RED RedLogFilm / Log3G10 / Log3G12, Fujifilm F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut
BT.2020, DCI-P3, DCI-P3 D65, Rec.709, plus manufacturer gamuts (Sony S-Gamut / S-Gamut3 / S-Gamut3.cine, Canon Cinema: DCI P3 / DCI P3plus / Rec.709, Panasonic V Gamut, ARRI Alexa Wide Gamut, JVC LS300, RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut)
- 3D LUT Display
- .cube (17 & 33 points supported)
- 3D LUT Downstream
- Loop out
- 3D LUT Split Screen
- 50/50
- Monitoring Modes
- SDR Native, HDR HLG, HDR PQ, Rec.709 LUT, User LUT

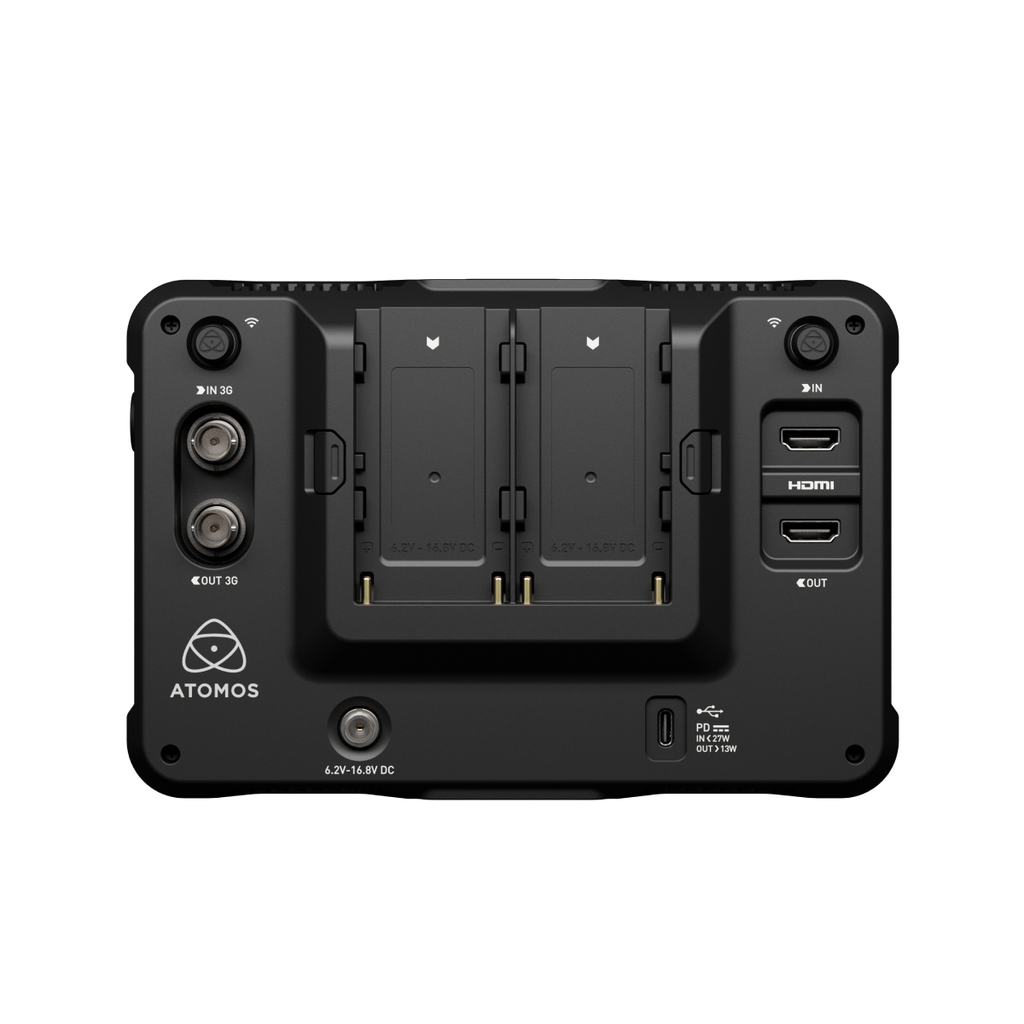

Video Input
- HDMI
- 1 × HDMI (2.0)
- SDI
- 3G
- Wi-Fi
- Wi-Fi 6E
- USB
- 1 × USB-C 2.0/3.0
- Bit Depth
- 8/10-bit video
- Video Chroma Subsampling
- 4:2:2
Video Output
- HDMI
- 1 × HDMI (2.0)
- SDI
- 12G
- Wi-Fi
- Wi-Fi 6E
- USB
- 2 × USB-C 2.0/3.0
- Bit Depth
- 8/10-bit video
- Video Chroma Subsampling
- 4:2:2
Metadata
- HDMI
- N/A
Network
- Wi-Fi
- Wi-Fi 6E
- USB
- 1 × USB-C 3.0
Connectivity
- LANC
- Yes
Audio In / Out
- HDMI
- 8-channel, 24-bit
- SDI
- 12-channel, 24-bit
- Analogue Audio Line In
- 3.5 mm headphone jack, 2-channel input
- Headphone Out
- 3.5 mm headphone jack, 2-channel
Timecode
- Embedded
- HDMI (display only)
- Time of Day
- Yes
- Reference / Genlock Input
- No
- LTC
- No
Resolution & Frame Rates
- 4K DCI
- 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
- 4K UHD
- 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p
- 2K DCI (2048 × 1080)
- Yes
- 1080p
- 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 / 100 / 120p
- 1080 PsF
- Converted to P and looped out PsF
- 1080i
- 50 / 59.94 / 60i
- 720p
- 50 / 59.94 / 60p
Supported Media
- SD
- To update firmware and upload LUTs
- File System
- FAT32, NTFS
Shinobi 7 RX monitor, Wi-Fi antenna, 5x antenna tips (black, white, yellow, green, red), 2 x antenna caps, USB-C 2.0 cable (1m), Quick Start Guide.
