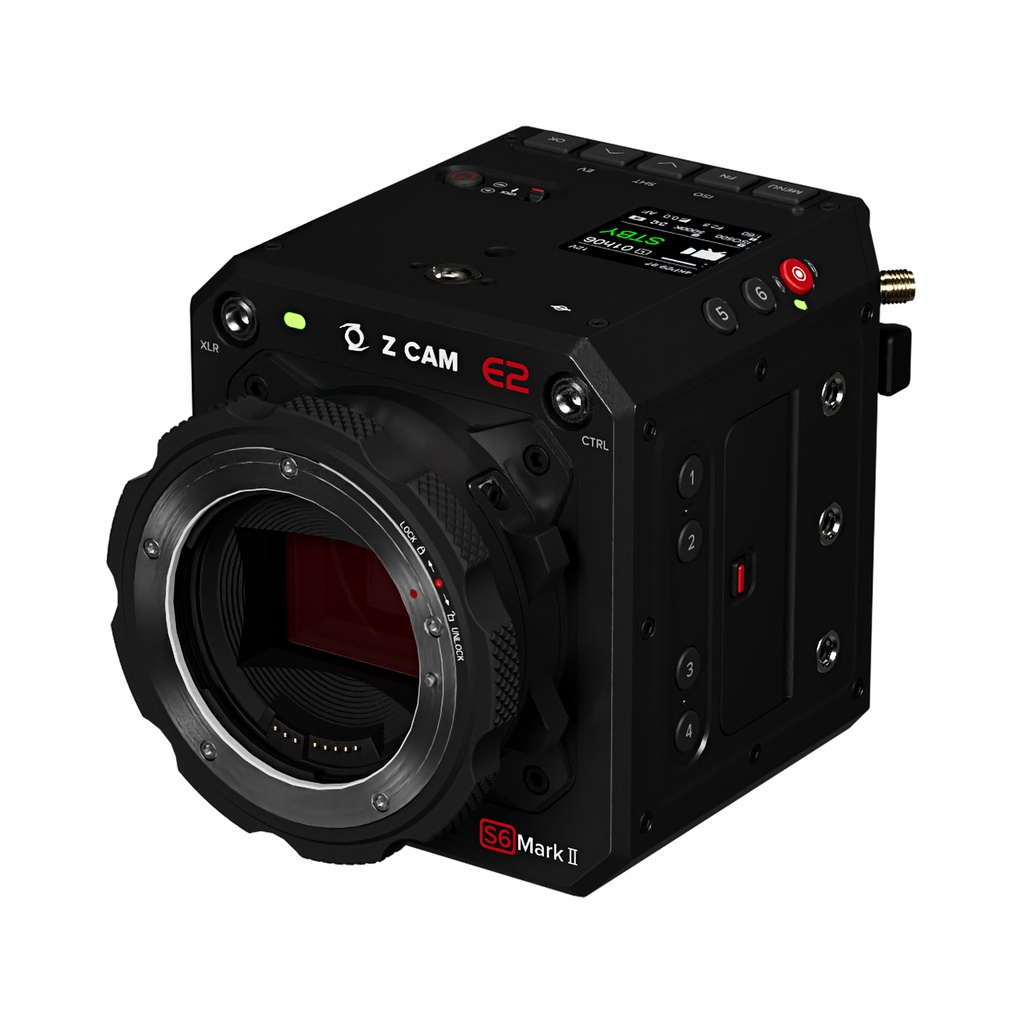

Z CAM E2-S6 Mark II SUPER 35mm 6K CINEMA CAMERA
Art.Nr. ZCE2S6M2E2-S6 Mark II Super35mm 6K Cinema Camera
The Z CAM E2 Mark II series represents the latest generation of professional cinema cameras, renowned for their exceptional image quality, robust design, and versatile functionality. With their compact and modular construction, these cameras can be easily adapted to meet a wide range of creative needs. They support various recording formats, including ProRes 4:2:2, H.265, and ZRAW, and feature advanced connectivity options like HDMI 2.0 and Gigabit Ethernet for live streaming and remote control.
The Z CAM E2-S6 Mark II comes with a Super 35mm CMOS sensor, offering flexibility in professional production settings. It supports 6K recording at up to 60 frames per second and 4K at up to 100 frames per second. With its dynamic range of 14 stops, it delivers exceptional image quality for artistic and commercial projects.
This model also features a native ISO range starting at 400, making it suitable for a variety of lighting conditions. The EF mount is standard but can be replaced with PL, M, or MFT mounts for maximum compatibility with different lenses.
The E2 Mark II series cameras boast extended dynamic range, native dual-ISO capabilities, and the ability to record 6K and 4K video at high frame rates. They include precise Genlock synchronization for multi-camera setups and utilize CFexpress Type-B cards for fast and reliable data storage. With Power over Ethernet (PoE+) support and an integrated gyroscope sensor for stabilization, they are an excellent choice for demanding film projects.
- Super 35mm CMOS sensor for professional use
- 6K video recording at up to 60 fps, 4K at up to 100 fps
- Dynamic range of 14 stops
- Supports ProRes 4:2:2, H.265, and ZRAW formats
- Native ISO range starting at 400 for versatile lighting conditions
- Standard EF mount, compatible with optional PL, M, and MFT mounts
- Built-in gyroscope sensor for enhanced stabilization
- Power over Ethernet (PoE+) and Genlock support for multi-camera setups
- Storage on CFexpress Type-B cards
Camera
Sensor Type
Super 35mm CMOS Sensor
Sensor Size
23.5 x 15.7 mm (Diagonal 28.3mm)
Effective Pixels
26.11M
Dynamic Range
14 stops
Lens Mount
EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone
Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate
30fps max @ Open Gate (6244x4168)
48fps max @ C6K (6144x3240)
60fps max @ 6K 2.4:1 (6144x2592)
48fps max @ 6K (5760x3240)
30fps max @ 5K 4:3 (5552x4164)
50fps max @ 5528x3112
60fps max @ C5K (5120x2700)
30fps max @ 5K 6:5 (4992x4160)
60fps max @ 5K (4800x2700)
30fps max @ C4K 3:2 (4096x2732)
30fps max @ C4K Low Noise (4096x2160)
75fps max @ C4K (4096x2160)
100fps max @ C4K 2.4:1 (4096x1728)
30fps max @ 4000x4000
30fps max @ 3840x3840
30fps max @ 4K Low Noise (3840x2160)
75fps max @ 4K (3840X2160)
50fps max @ 3456x3456
90fps max @ S16 16:9 (3392x1908)
120fps max @ 2.8K (2868x1512)
120fps max @ 1920x1080
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode.
Video Encoder
H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI
ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth
10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture
Settings
ISO
Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 1250
Shutter
Shutter Speed: Auto, Manual (1”~ 1/8000”)
Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance
Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness /
Gamma Setting
Image Config
Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code
Current Time / Manual Input / External Input
Connectivity
HDMI
HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI
3G-SDI
Timecode In
LTC Timecode Input via BNC
Genlock
BB/Tri-Level Genlock Input via BNC
USB
USB 3.0 Type C for camera control & data transfer only
Remote Port
2.5 mm jack socket (Sony LANC compatible)
Audio In
3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out
3.5 mm stereo jack socket
Wi-Fi
5G, up to 802.11n, external antenna port
CTRL
Serial port
Ethernet
Gigabit Ethernet port for control, setting & live streaming
Power
Battery
Mini V-Lock 14.8V (Battery not included)
Power Input
DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX)
DC 12V 3A max (2-pin LEMO socket)
Power Consumption
50W maximum, not inclusive of AUX power consumption
Physical
Camera Body
Aluminum Alloy
Weight - Camera (w/o Lens)
1.21kg (with EF mount)
Weight - Full Package
1.55kg
Dimensions (HxWxL) - Camera
105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (EF Mount)
Dimensions (HxWxL) - Package
145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
1 x Z CAM E2-S6 Mark II
