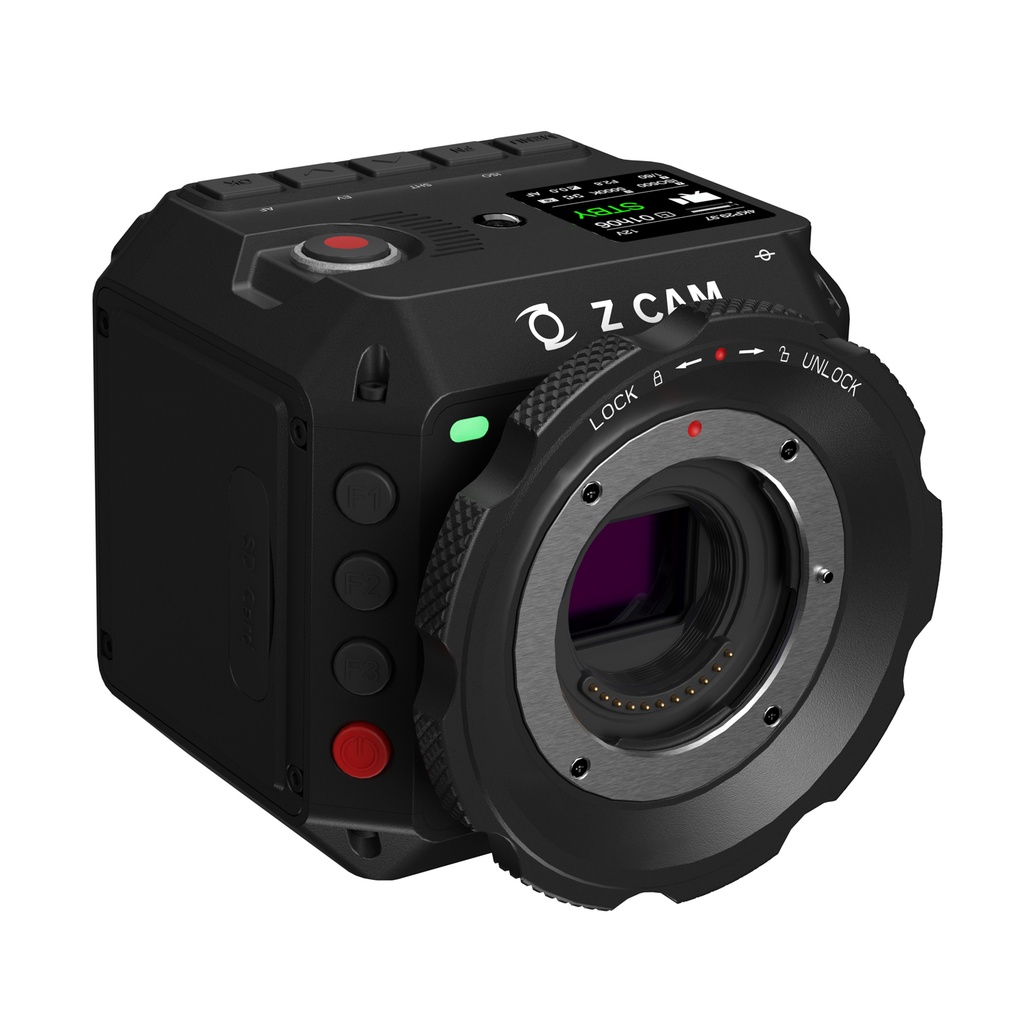

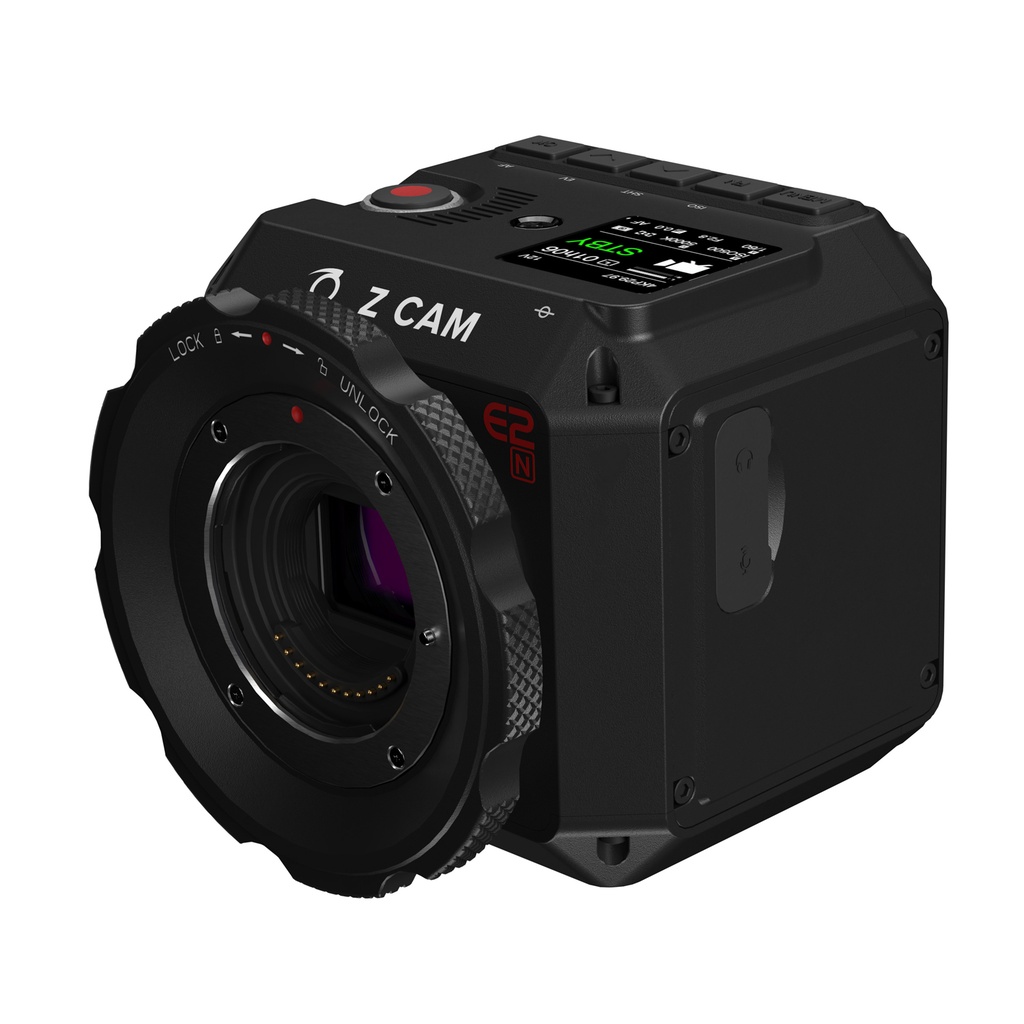

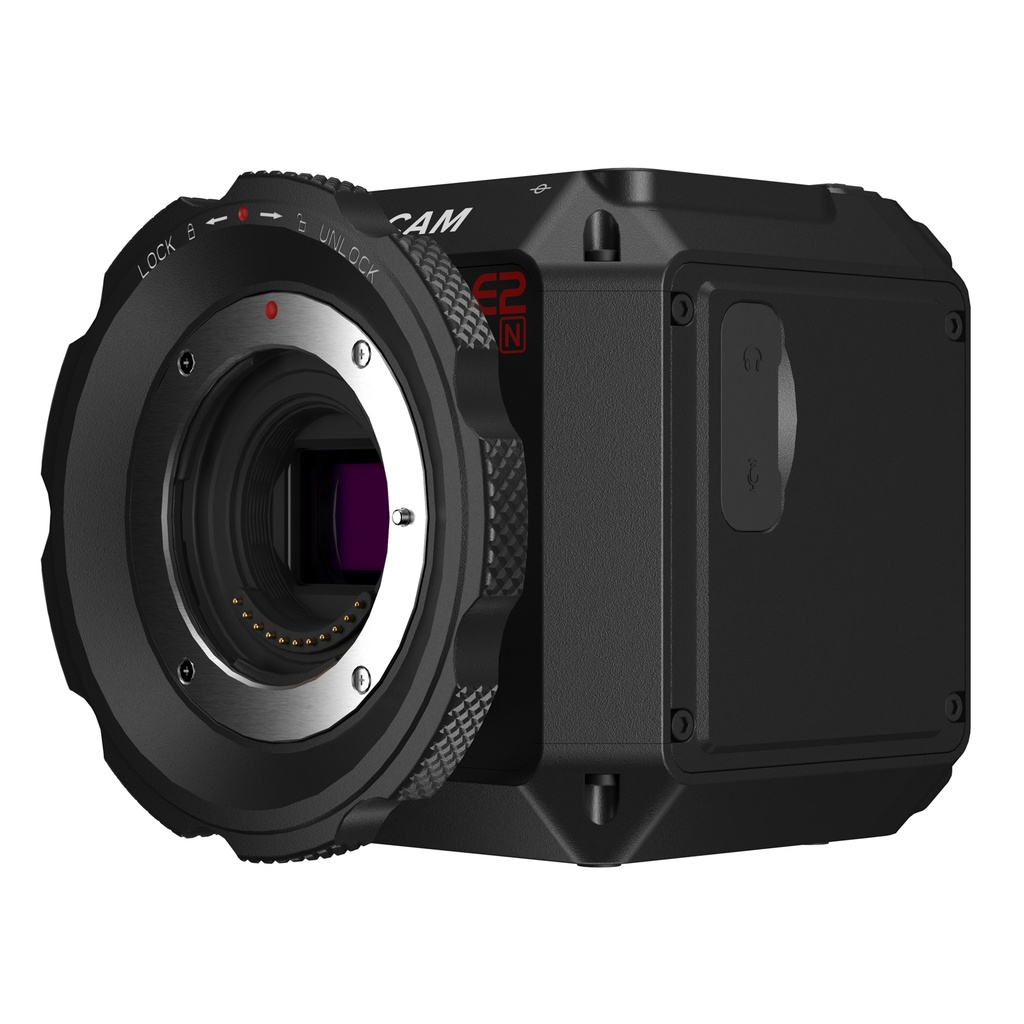

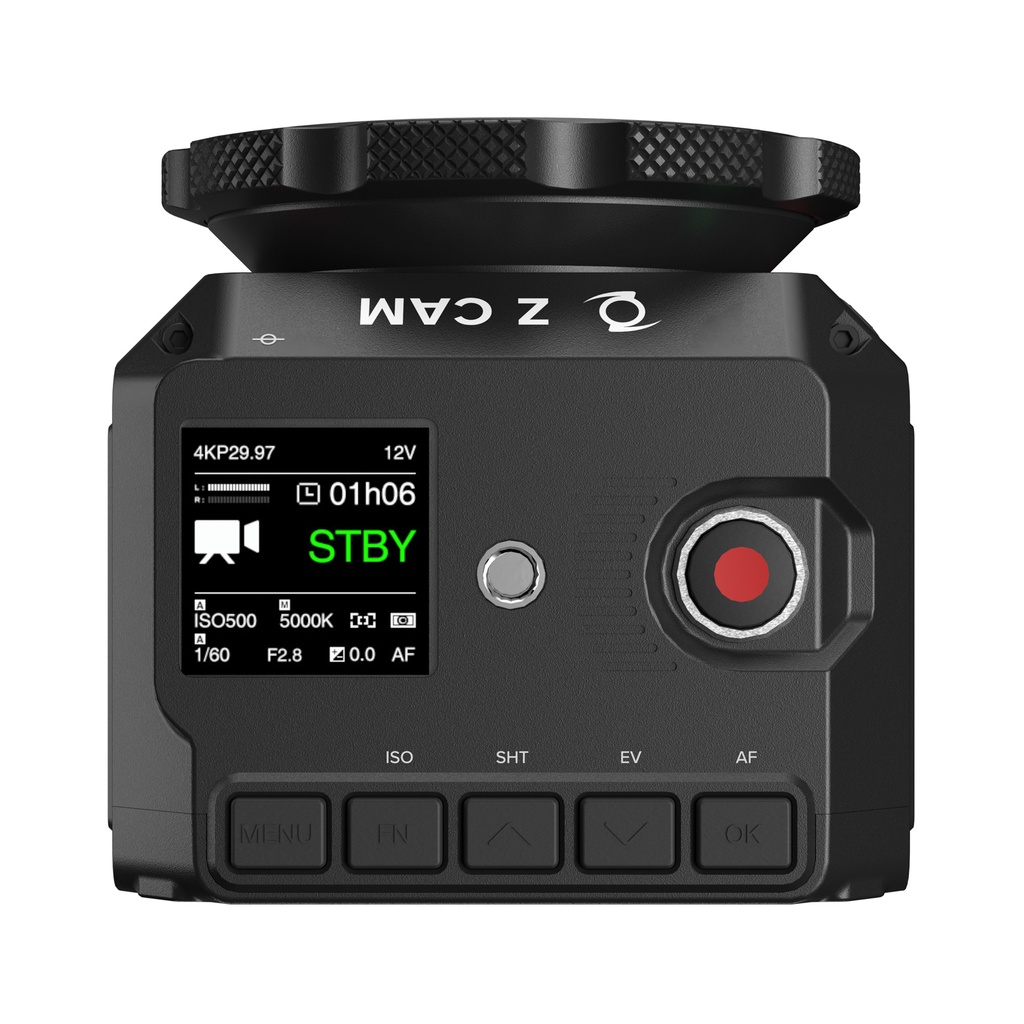

Z CAM E2N 4K NDI CAMERA

Art.Nr. ZCE2N

E2N 4K NDI Camera MFT

 https://www.riwit.de/web/image/product.template/12647/image_1920?unique=28aa613

1,133.61 € 1,133.61 € 1133.6100000000001 EUR netto UVP

1,349.00 € 1,349.00 € 1348.9959000000001 EUR brutto UVP

Option nicht verfügbar

Not Available For Sale

This combination does not exist.

Contact Us

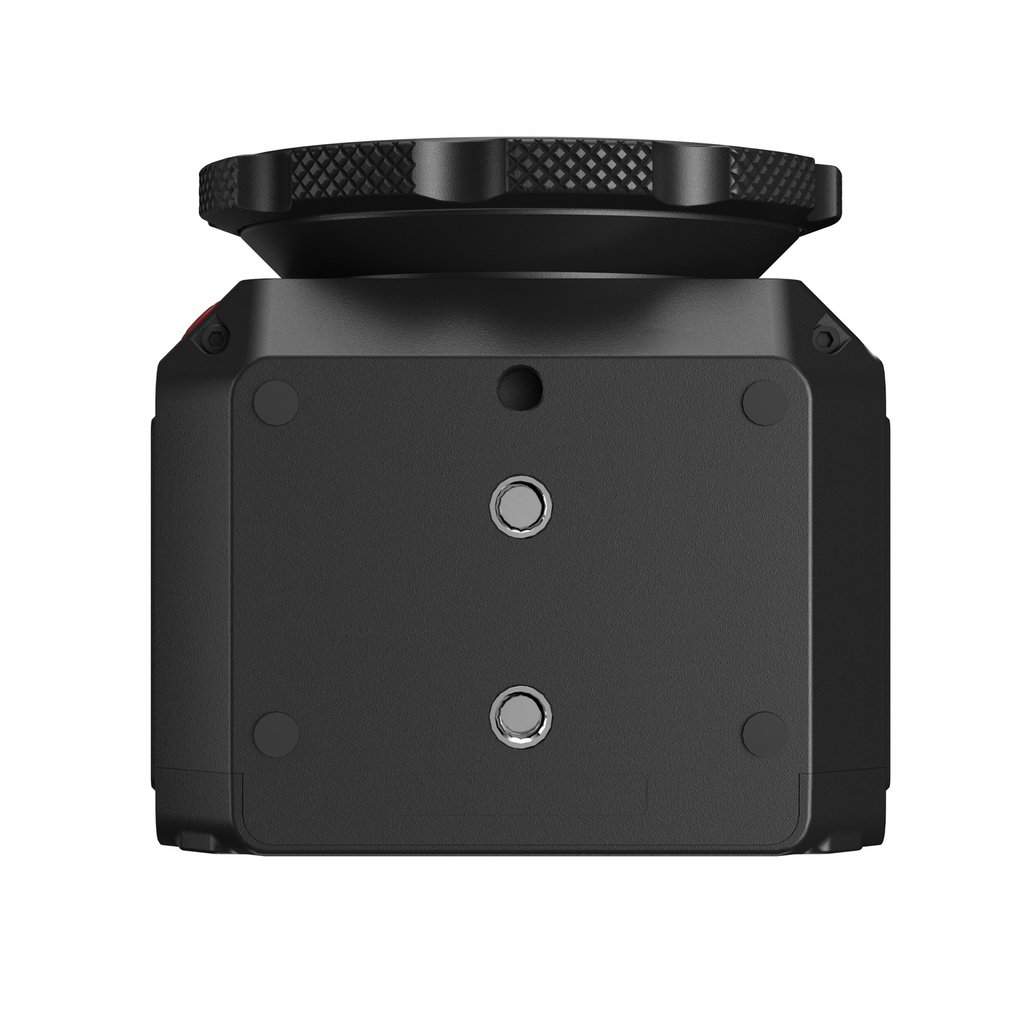

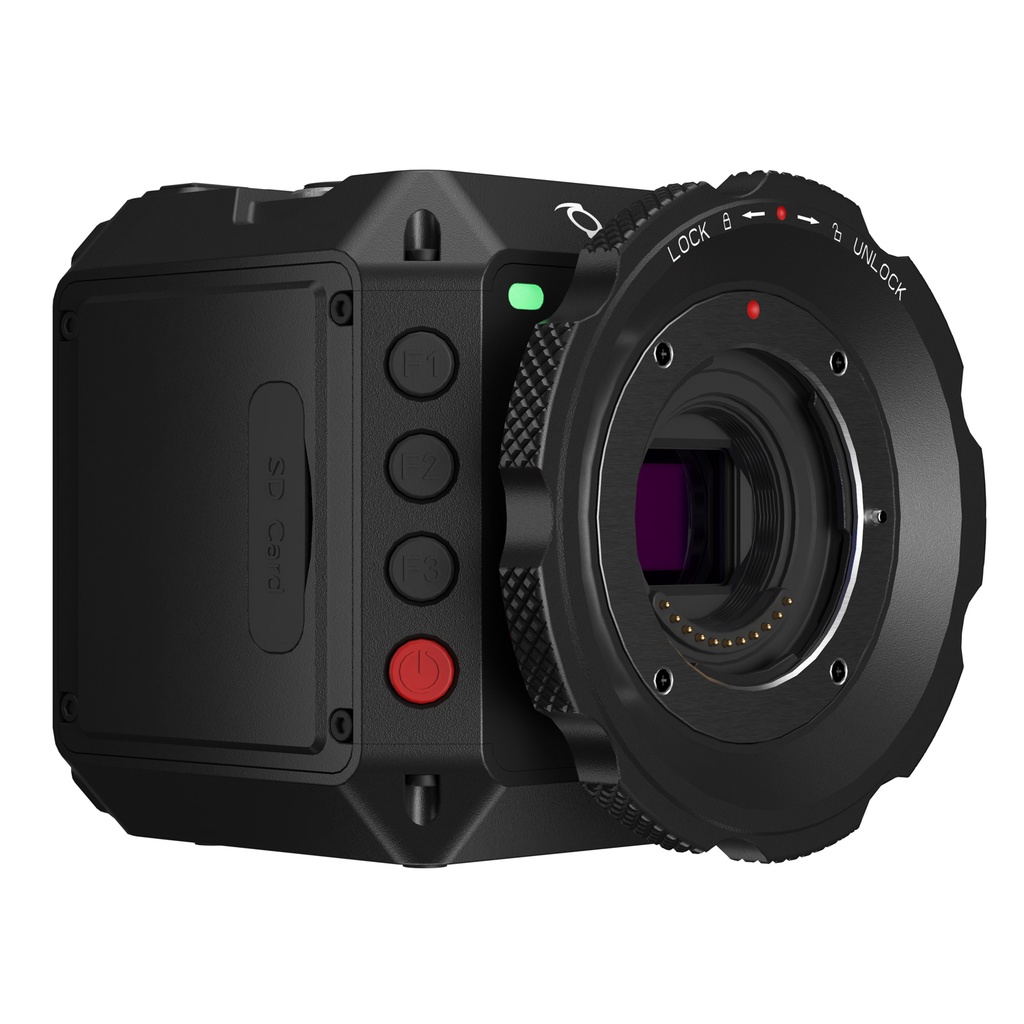

Add the E2N 4K NDI Camera from Z CAM to your NDI ecosystem and enjoy NDI and SSP support on a compact box camera that features an MFT lens mount and a 4/3" dual native ISO CMOS sensor with the capability of capturing resolutions up to 4K60. The E2N can handle H.265 and H.264 via NDI|HX3 and NDI|HX formats, as well as via SSP. The camera offers tally control via NDI and PoE+ (Power over Ethernet). An SD card slot provides internal recording options, but you can also record to an external recording system using the HDMI output. A web-based user interface and a full set of open API can be employed for control and monitoring.

  • Certified for NDI|HX3 Support
  • 4/3" Dual Native ISO CMOS Sensor
  • Captures up to 4K60
  • PoE+ & Tally Control via NDI

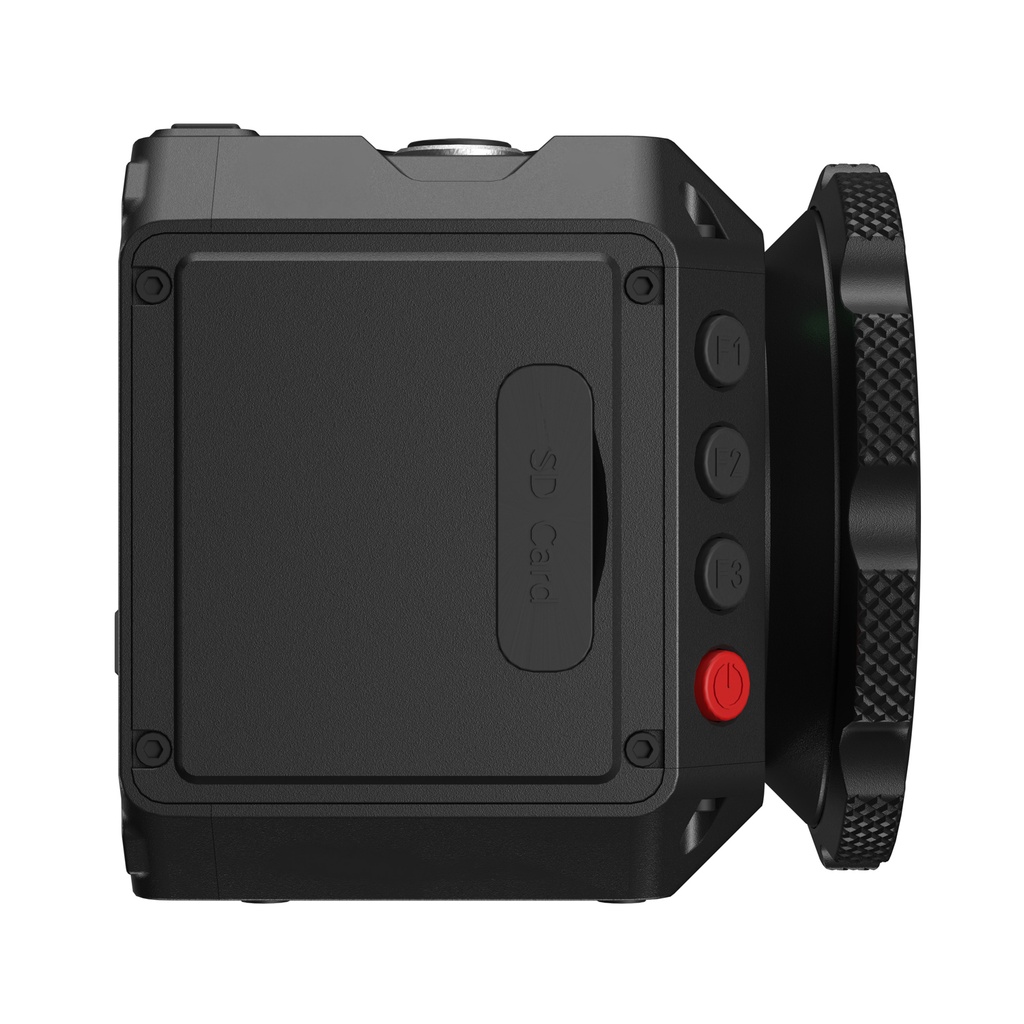

  • SD Card Slot for Recording

Camera

Camera model
Z CAM E2N

Sensor Type
4/3" CMOS sensor

Effective Pixels
10.71 mega pixels

Dynamic Range
11.5 Stops

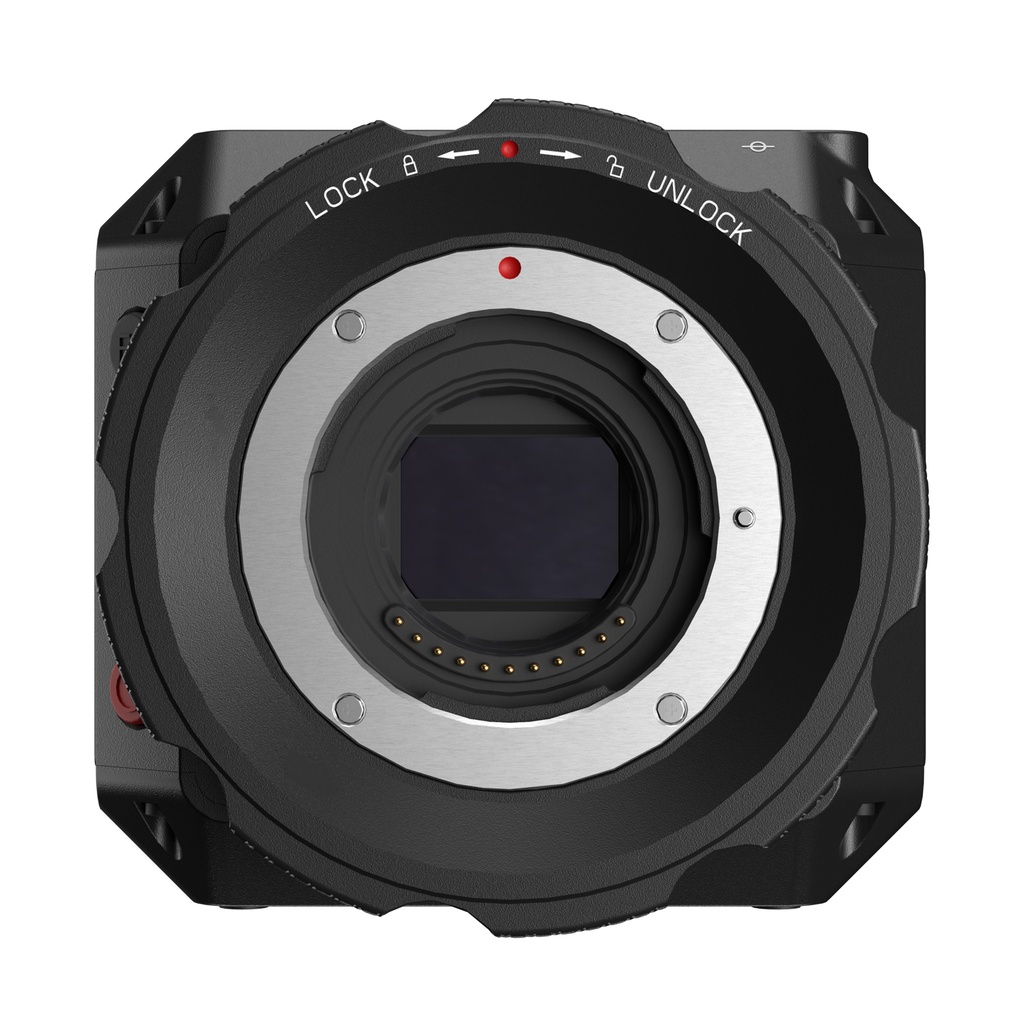

Lens Mount
Micro Four Thirds (with Active Lock)

Microphone
Built-in Stereo Microphone


Recording

Recording Resolution
4K, 3696x2772
1080p		 Recording Frame Rate
23.98 / 24 / 25 / 29.97 / 50 / 59.94
23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120 / 240
Streaming Resolution
4K, 3696x2772
1080p		 Streaming Frame Rate
23.98 / 24 / 25 / 29.97 / 50 / 59.94
23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120
Color Bit-depth
8-bit		 Video Encoder
H.265 / H.264
Streaming Protocol
NDI_HX3, SSP		 Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)		 File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture


Settings

ISO
Auto, Manual (500 ~ 102400), Native ISO: 500 / 2500

Shutter
Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°)

White Balance
Auto, Preset, Manual (2300K ~ 7500K)

Focus Mode
MF / AF / CAF

Image Profile
Rec.709 / Concert / Vivi 0 / Vivi 1 / Vivi 2

Audio
Audio In / Out Level

Time Code
Current Time / Manual Input




Storage

Recording Media
SDXC Class 10 SD card, recommend to use UHS-I Speed Class 3 (U3) type for 4K recording

File System
exFAT

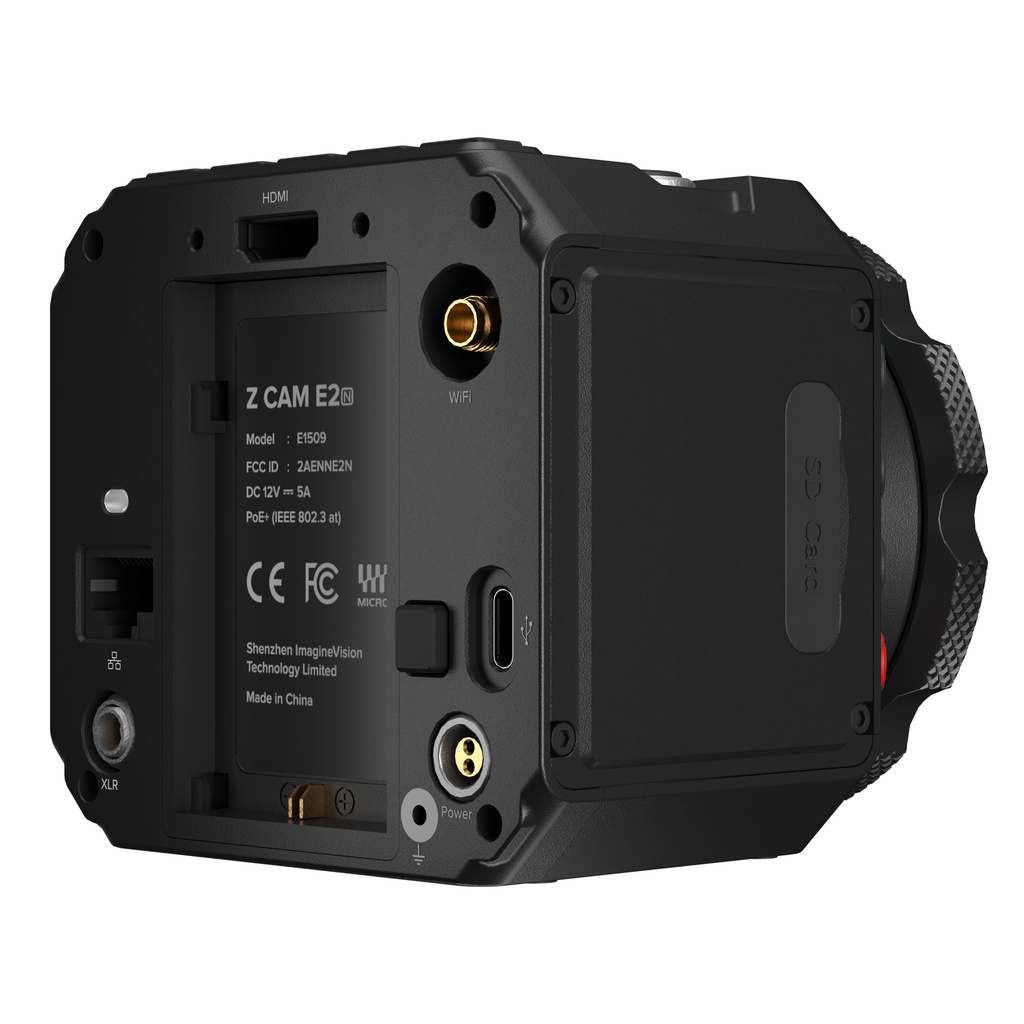

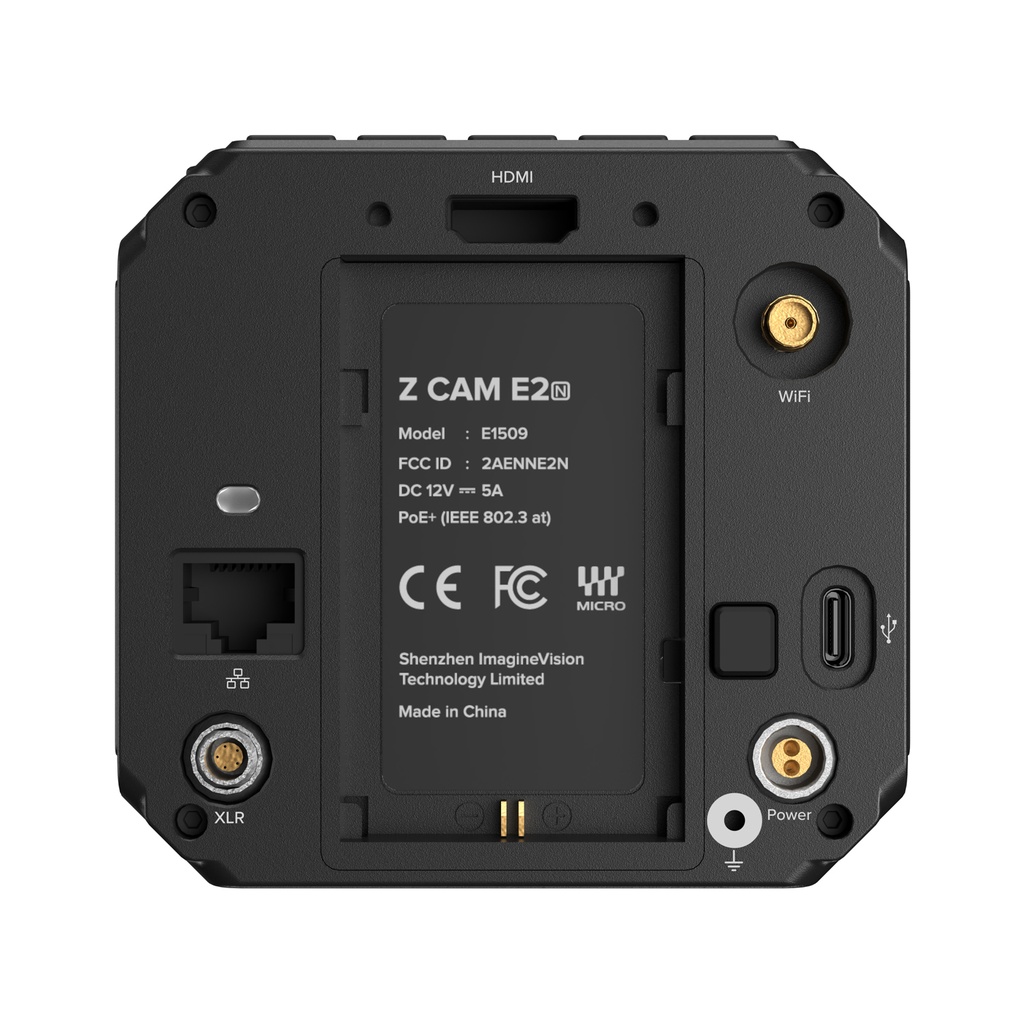

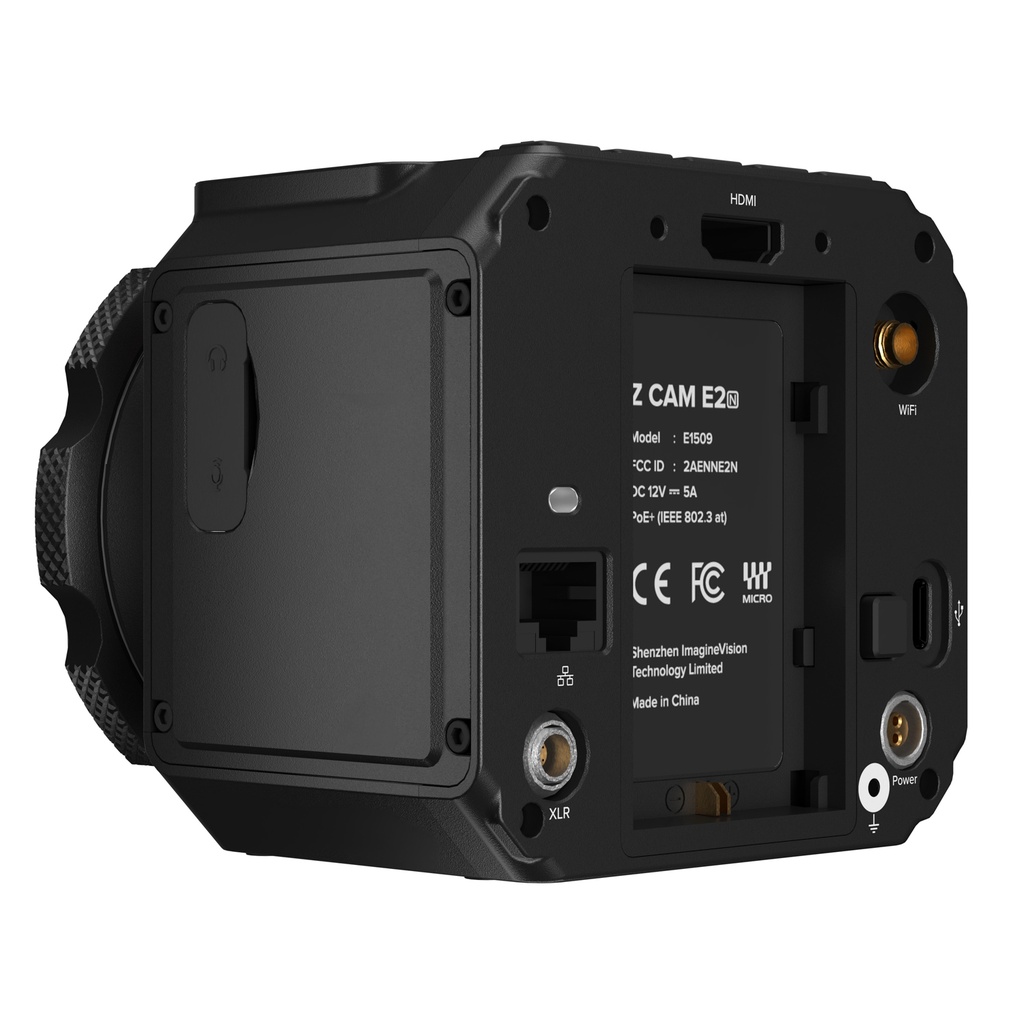

Connectivity

HDMI
HDMI 2.0 Type A, up to 4K 60fps

USB
USB 3.0 Type C

Audio-in
3.5 mm stereo jack socket

Audio-out
3.5 mm stereo jack socket

Wi-Fi
5G band, 802.11ac, external antenna port

Ethernet
Gigabit Ethernet port for control, setting & live streaming


Power

Power Input
DC 12V 5A (2-pin LEMO socket), PoE+ (IEEE 802.3 at)

Battery
LP-E6 series compatible (Battery not included)


Physical

Weight
660g (without lens)

Dimensions (HxWxL)
85.3 x 91 x 86mm (without lens)


Environment

Storage Temperature
-20 °C ~ 60 °C

Operation Temperature
0 °C ~ 40 °C

1 x Z CAM E2N 4K NDI Camera
