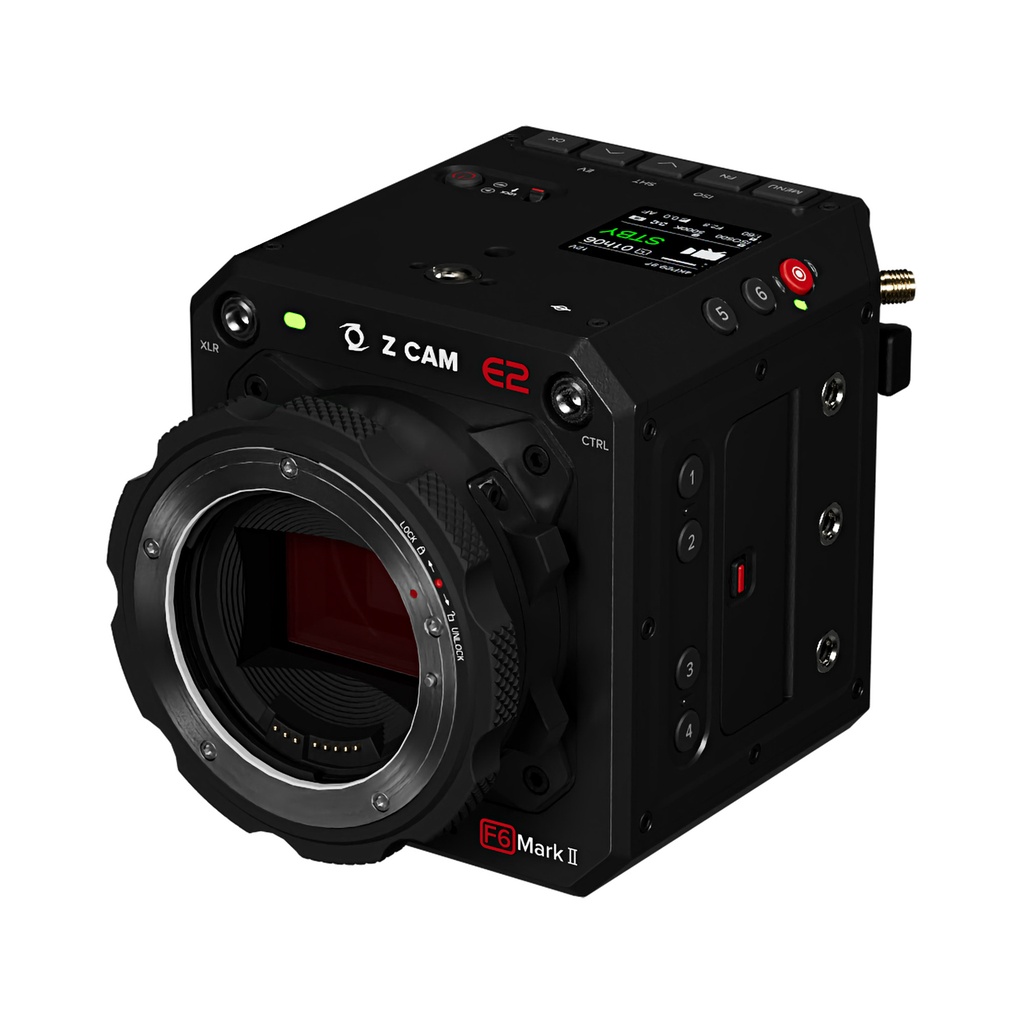

Z CAM E2-F6 Mark II FULL FRAME 6K CINEMA CAMERA
Art.Nr. ZCE2F6M2E2-F6 Mark II Full Frame 6K Cinema Camera
The Z CAM E2 Mark II series represents the latest generation of professional cinema cameras, renowned for their exceptional image quality, robust design, and versatile functionality. With their compact and modular construction, these cameras can be easily adapted to meet a wide range of creative needs. They support various recording formats, including ProRes 4:2:2, H.265, and ZRAW, and feature advanced connectivity options like HDMI 2.0 and Gigabit Ethernet for live streaming and remote control.
The Z CAM E2-F6 Mark II features a full-frame CMOS sensor, offering impressive resolution and versatility. It supports 6K recording at up to 60 frames per second and 4K at up to 120 frames per second. With a dynamic range of 15 stops, it captures incredible detail in both shadows and highlights.
The native ISO range starts at 400, making the camera particularly effective in low-light environments. Equipped with a standard EF mount, it also supports optional lens mounts such as PL, M, and MFT to accommodate a wide range of cine and photography lenses.
The E2 Mark II series cameras boast extended dynamic range, native dual-ISO capabilities, and the ability to record 6K and 4K video at high frame rates. They include precise Genlock synchronization for multi-camera setups and utilize CFexpress Type-B cards for fast and reliable data storage. With Power over Ethernet (PoE+) support and an integrated gyroscope sensor for stabilization, they are an excellent choice for demanding film projects.
- Full-frame CMOS sensor for exceptional image quality
- 6K video recording at up to 60 fps, 4K at up to 120 fps
- Dynamic range of 15 stops
- Supports ProRes 4:2:2, H.265, and ZRAW formats
- Native ISO range starting at 400, excellent for low-light performance
- Standard EF mount, compatible with optional PL, M, and MFT mounts
- Built-in gyroscope sensor for enhanced stabilization
- Power over Ethernet (PoE+) and Genlock support for multi-camera setups
- Storage on CFexpress Type-B cards
Camera
Sensor Type
Full Frame CMOS Sensor
Sensor Size
35.9 x 24.0 mm (Diagonal 43.3mm)
Effective Pixels
24.63M
Dynamic Range
15 stops
Lens Mount
EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone
Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate
"30fps max at Open Gate (6064x4040)
48fps max at C6K (6064x3196)
60fps max at 6K 2.4:1 (6064x2560 )
48fps max at 6K (5760x3240)
30fps max at 5K 4:3 (5376x4032)
60fps max at C5K (5120x2700)
30fps max at 5K 6:5 (4848x4040)
60fps max at 5K (4800x2700)
50fps max at 4K 4:3 (4096x3072)*
30fps max at C4K 3:2 (4096x2732)
90fps max at C4K (4096x2160) *
120fps max at C4K 2.4:1 (4096x1728)
30fps max at 4K 6:5 (4080x3400)
90fps max at 4K (3840x2160)
170fps max at S16 16:9 (2112x1188)
170fps max at 1080P (1920x1080)
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode."
Video Encoder
H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI
ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth
10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture
Settings
ISO
Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 2500
Shutter
"Shutter Speed: Auto, Manual (1”~ 1/8000”)
Shutter Angle: Auto, Manual (1° ~ 360°)"
White Balance
Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness / Gamma Setting
Image Config
Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code
Current Time / Manual Input / External Input
Connectivity
HDMI
HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI
3G-SDI
Timecode In
LTC Timecode Input via BNC
Genlock
BB/Tri-Level Genlock Input via BNC
USB
USB 3.0 Type C for camera control & data transfer only
Remote Port
2.5 mm jack socket (Sony LANC compatible)
Audio In
3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out
3.5 mm stereo jack socket
Wi-Fi
5G, up to 802.11n, external antenna port
CTRL
Serial port
Ethernet
Gigabit Ethernet port for control, setting & live streaming
Power
Battery
Mini V-Lock 14.8V (Battery not included)
Power Input
DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX)
DC 12V 3A max (2-pin LEMO socket)
Power Consumption
50W maximum, not inclusive of AUX power consumption
Physical
Camera Body
Aluminum Alloy
Weight - Camera (w/o Lens)
1.21kg (with EF mount)
Weight - Full Package
1.55kg
Dimensions (HxWxL) - Camera
105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (EF Mount)
Dimensions (HxWxL) - Package
145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
1 x Z CAM E2-F6 Mark II
