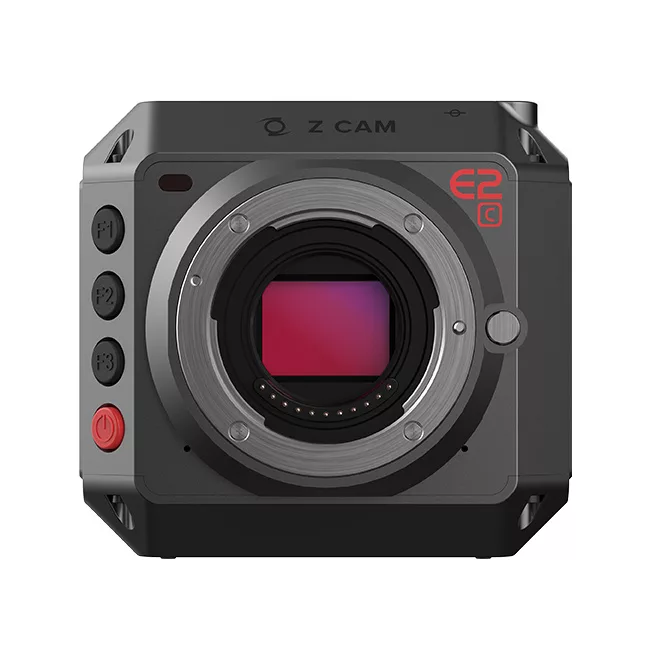

Z CAM E2C 4K Cinema Camera
Art.Nr. ZCE2CProfessional 4K Cinema Camera Z CAM E2C
The Z CAM E2C Professional 4K Cinema Camera shoots UHD 4K up to 29.97 fps, as well as HD up to 59.94 fps, and records to an SDXC Class 10 card (not included). The camera features a 4/3" sensor with 10-bit color support and nominal 11.5 stops of dynamic range. The camera supports recording video in MOV/MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and a recent firmware update allows the camera to record in the ZRAW format. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only).
You can use an available iOS app to control the camera via Wi-Fi and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers via PoE, an LP-E6-series battery (not included), or via a DC input port. An included LEMO to D-Tap power cable allows you to power the camera from a D-Tap source. An optional AC to DC power adapter can also power the camera.
- 12-Bit ProRes RAW recording over HDMI to the Ninja V 5” HDR monitor-recorder
- 4K @ 30fps, 10-bit color
- 4/3" CMOS sensor
- 11.5 stops dynamic range
- iOS app for control setting & live preview
- POE supported
| Sensor Type | 4/3" WDR CMOS Sensor |
| Sensor Size | 19.0 x 13.0 mm |
| Effective Pixels | 10.28M |
| Dynamic Range | 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated) |
| Lens Mount | Micro Four Thirds |
| Microphone | Built-in Stereo Microphone |
| Resolution | 4096 x 2160 (C4K) / 3840 x 2160 (4K) 4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1) 3696 x 2772 / 3312 x 2760 2704 x 1600 / 1920 x 1080 |
| Frame Rate | 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps |
| Max Variable Frame Rate | 120 fps for 4096 x 2160 (H.265 only) 120 fps for 3840 x 2160 (H.265 only) 150 fps for 4096 x 1728 (H.265 only) 160 fps for 3840 x 1620 (H.265 only) 240 fps for 1920 x 1080 (H.265 only) |
| Max Bit Rate | H.265 / H.264: 300 Mbps for 4K resolutions 200 Mbps for 1920 x 1080 |
| Media | CFAST 2.0 |
| File System | exFAT |
| HDMI | HDMI 2.0 Type A (video output up to C4K @60fps) |
| USB | USB 3.0 Type C |
| Wi-Fi | 802.11n, 2.4G with external antenna port |
| Ethernet | Gigabit Ethernet port for control, setting & live streaming |
| Battery | Sony NP-F series compatible |
| External Power Supply | DC 12V 5A (4-pin LEMO socket) |
| Material | Aluminum Alloy |
| Weight | 757 g (without lens) |
| Dimensions (W x H x D) | 91.2 mm x 99.2 mm x 89.1 mm (without lens) |
| Storage Temperature | -20 °C ~ 60 °C |
| Operation Temperature | 0 °C ~ 40 °C |
1 x Z CAM E2 Professional 4K Cinema Camera
1 x LEMO Power Cable with D-Tap Plug
1 x D-Tap Connector
1 x AC/DC Power Adapter
1 x Power Cable
1 x Lens Mount Cap
