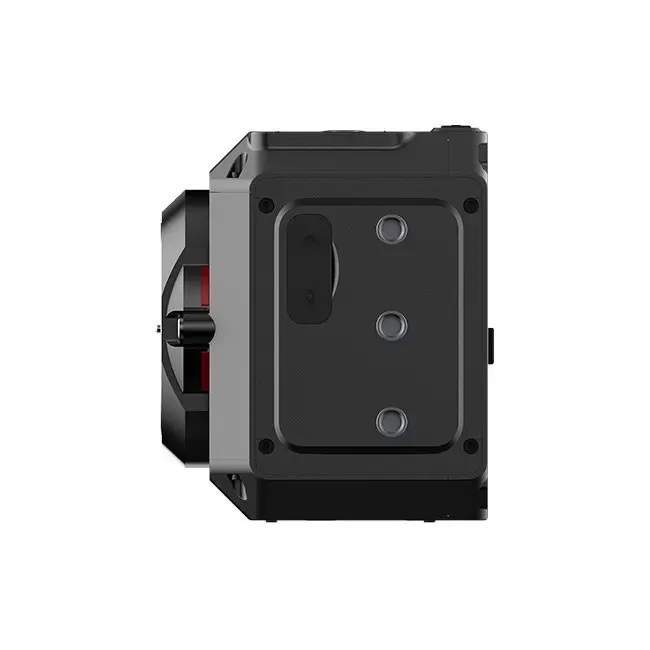

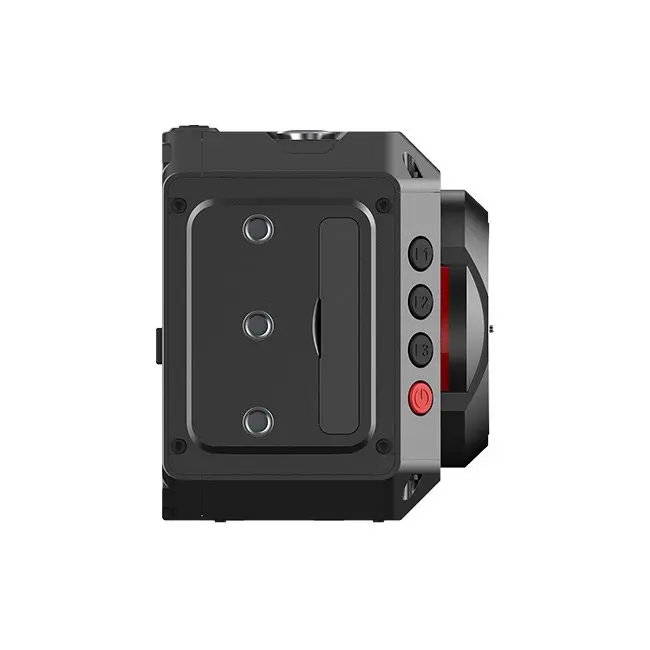

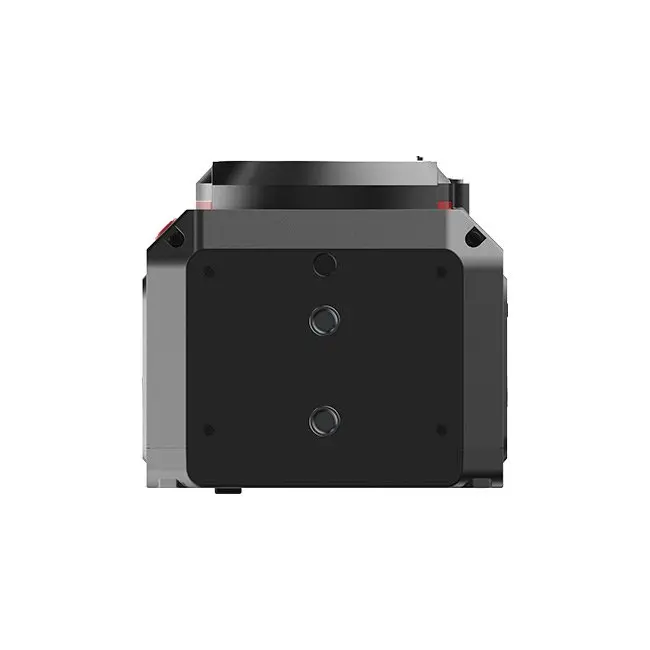

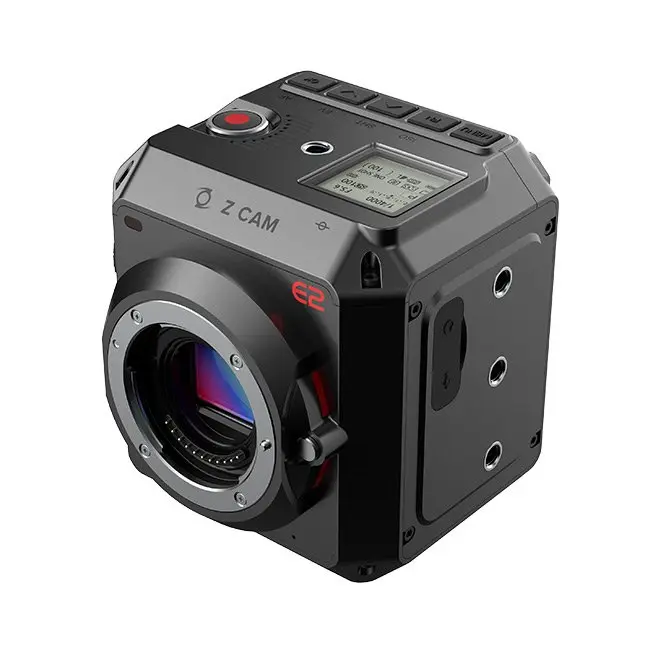

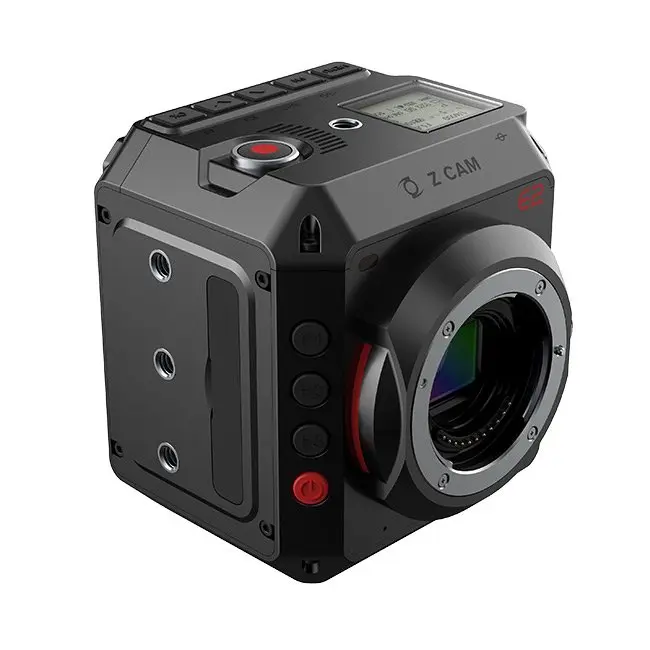

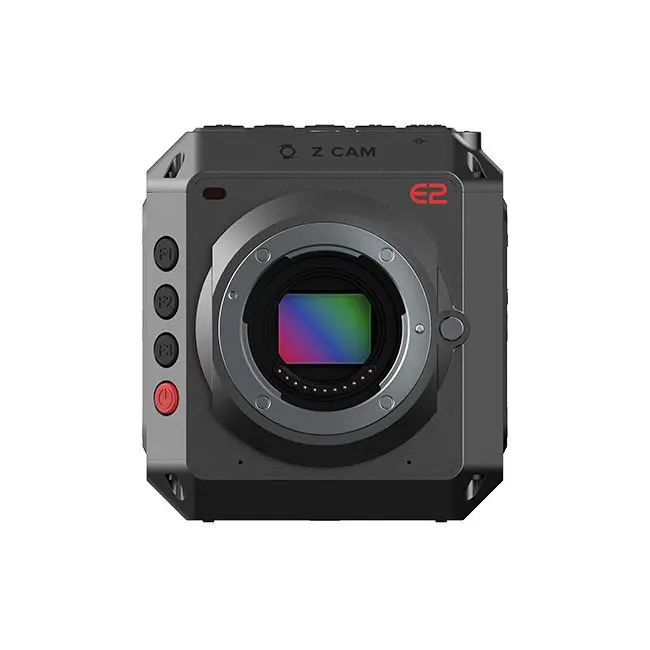

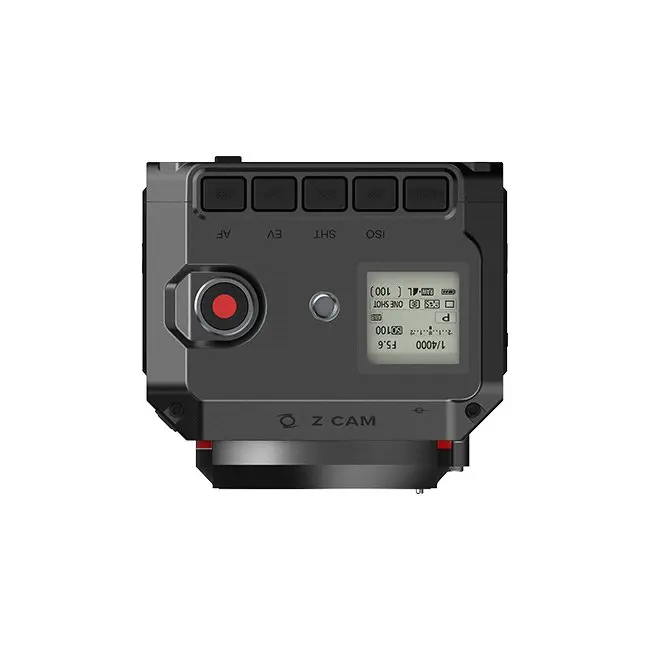

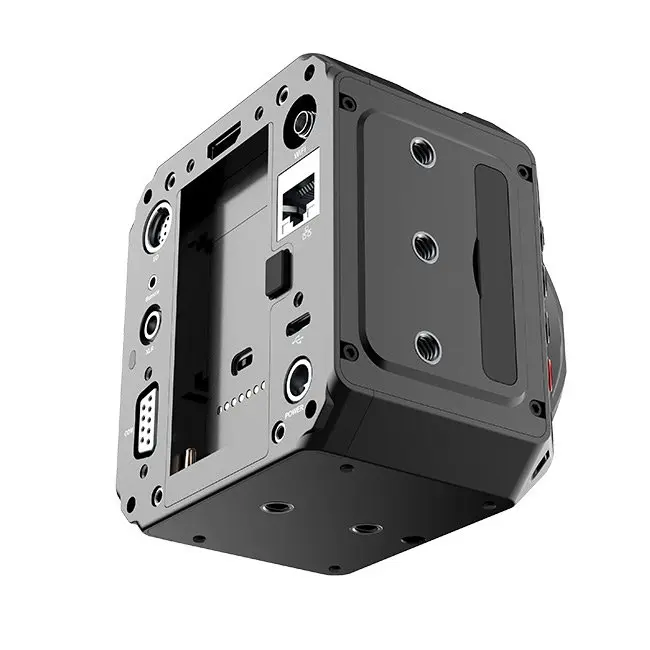

Z CAM E2 4K CINEMA CAMERA
Art.Nr. ZCE2Professional 4K Cinema Camera Z CAM E2
The Z CAM E2 Professional 4K Cinema Camera shoots DCI and UHD 4K at up to 160 fps, as well as HD up to 240 fps, and records to a CFast 2.0 card (not included). An optional cable enables syncing two E2 cameras together, and the system supports syncing up to 100 cameras. The camera features a 4/3" sensor with 10-bit color support and nominal 13 stops of dynamic range with 16 stops when set to WDR. The camera supports recording in ProRes 422 in 10-bit, as well as H.265 and H.264 codecs for efficient compressing of your image.
An included Gigabit connector provides data transfer and control of the camera, and you can also use an available iOS app to control the camera and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers from an L-series battery (not included) or via the included AC adapter.
- DCI and UHD 4K up to 160 fps
- 13-Stop Dynamic Range (16 WDR Enabled)
- 10-Bit Color Recording, Supports ProRes
- 4/3" WDR CMOS Sensor
- Multicamera Synchronization (E2 sync cable required (not included)
- Gigabit Ethernet for Data, Control
- Live Streaming via Ethernet (requires Z CAM Sorftware)
- iOS App for Control and Live Preview
- Accepts Optional L-Series Batteries
- AC Power Adapter Included
| Sensor Type | 4/3" WDR CMOS Sensor |
| Sensor Size | 19.0 x 13.0 mm |
| Effective Pixels | 10.28M |
| Dynamic Range | 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated) |
| Lens Mount | Micro Four Thirds |
| Microphone | Built-in Stereo Microphone |
| Resolution | 4096 x 2160 (C4K) / 3840 x 2160 (4K) 4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1) 3696 x 2772 / 3312 x 2760 2704 x 1600 / 1920 x 1080 |
| Frame Rate | 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps |
| Max Variable Frame Rate | 120 fps for 4096 x 2160 (H.265 only) 120 fps for 3840 x 2160 (H.265 only) 150 fps for 4096 x 1728 (H.265 only) 160 fps for 3840 x 1620 (H.265 only) 240 fps for 1920 x 1080 (H.265 only) |
| Max Bit Rate | H.265 / H.264: 300 Mbps for 4K resolutions 200 Mbps for 1920 x 1080 |
| Media | CFAST 2.0 |
| File System | exFAT |
| HDMI | HDMI 2.0 Type A (video output up to C4K @60fps) |
| USB | USB 3.0 Type C |
| Wi-Fi | 802.11n, 2.4G with external antenna port |
| Ethernet | Gigabit Ethernet port for control, setting & live streaming |
| Battery | Sony NP-F series compatible |
| External Power Supply | DC 12V 5A (4-pin LEMO socket) |
| Material | Aluminum Alloy |
| Weight | 757 g (without lens) |
| Dimensions (W x H x D) | 91.2 mm x 99.2 mm x 89.1 mm (without lens) |
| Storage Temperature | -20 °C ~ 60 °C |
| Operation Temperature | 0 °C ~ 40 °C |
1 x Z CAM E2 Professional 4K Cinema Camera
1 x LEMO Power Cable with D-Tap Plug
1 x D-Tap Connector
1 x AC/DC Power Adapter
1 x Power Cable
1 x Lens Mount Cap
