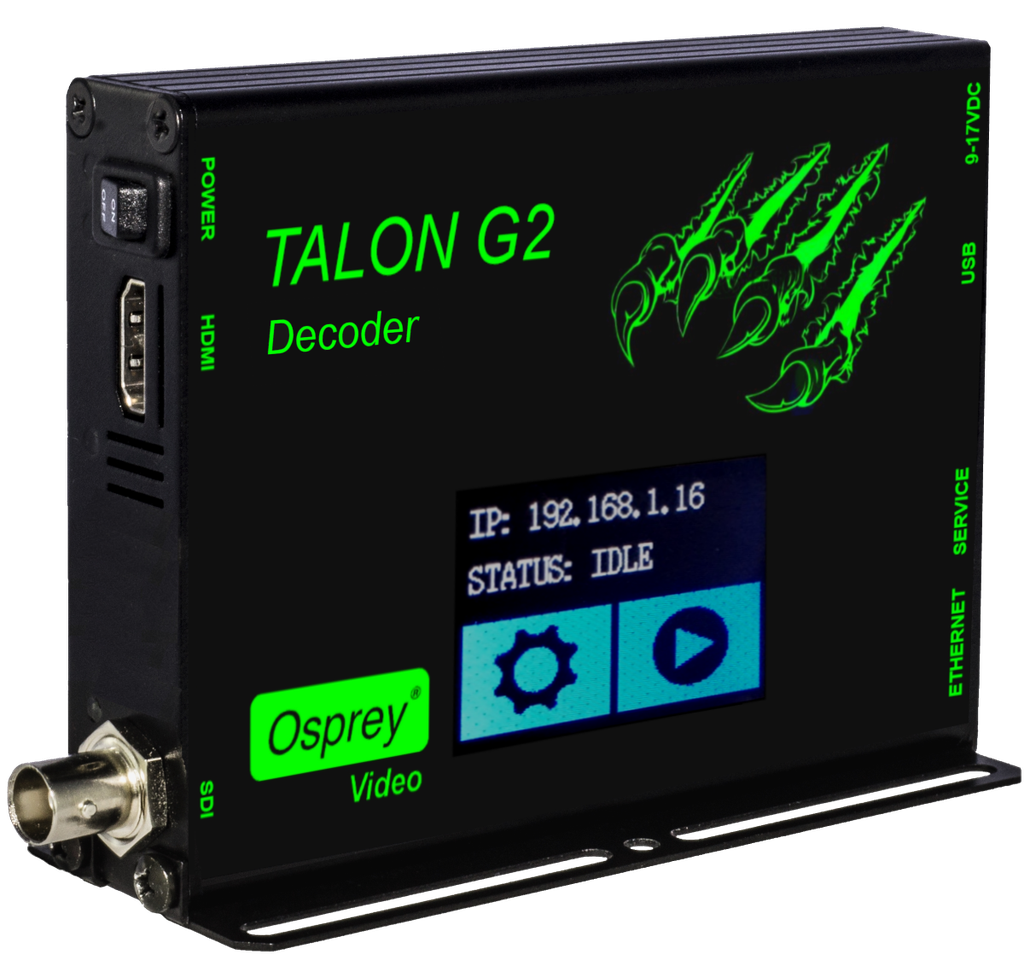

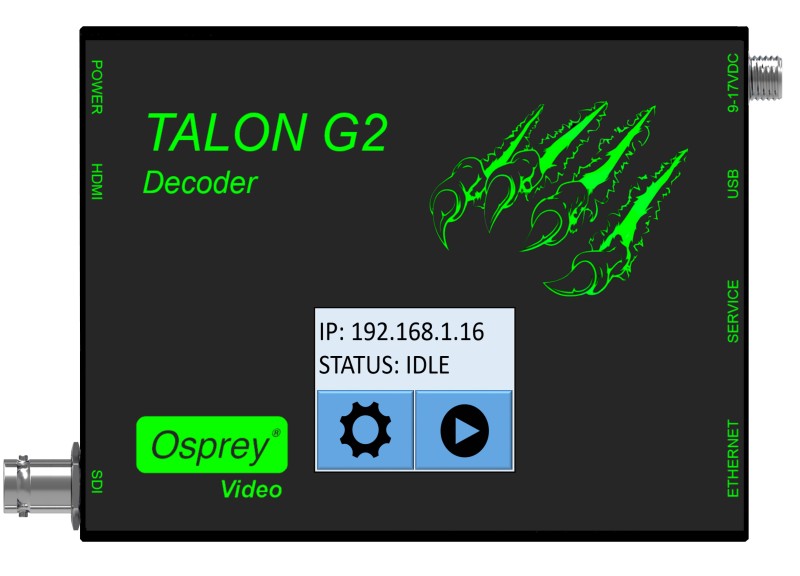

OSPREY Talon G2 Decoder
Art.Nr. VS-OS-96-02021Osprey Talon G2 Decoder with Dual outputs and LCD-Display
Osprey Talon is a small form-factor H.264 video decoder designed to be easy to use and portable. Using its GigE Ethernet port, Talon can decode up to 4 RTP or UDP streams (Unicast/Multicast) and display them in a resolution of up to 1080p60 via the HDMI / SDI outputs. Talon can also play .TS files from an external flash drive via its USB 2.0 port. It features a fanless design with a low power consumption of <6W. The wide input voltage range of 9VDC to 17VDC also make it the perfect candidate for battery operated installations.
A perfect complement for the Encoder Line, the Talon Decoders can accept up to 4 input streams via RTP/UDP/.TS for point to point delivery.
HDMI Output
DEcodes H.264 RTP, UDP Streams and .TS Files
Touch Display
Video Input
H.264 RTP/UDP multicast and unicast stream
H.264 .TS file
Max. Video Input Capacity
1x 1080p60
2x 1080p30
2x 720p60
3 or 4x 720p30
Video Output Mode HDMI and SDI (Parallel)
720P 50, 60
1080P 25, 30 50, 60
Closed Caption
SDI Output with EIA-608 & EIA-708 Closed Caption Support
Touch Display
IP Address
Status Indicator Decoding/Idle
Decoding Start/Stop
Change Output Resolution
Change Output Configuration
LED Indicators
Power
Unit Ready
Unit Decoding
Dimensions
9,31 x 12,02 x 2,475cm
Weight:
Ca. 0,26kg
Power Consumption:
6W
Warranty:
2 years
1x International Power Supply
1x Mounting Brackets
