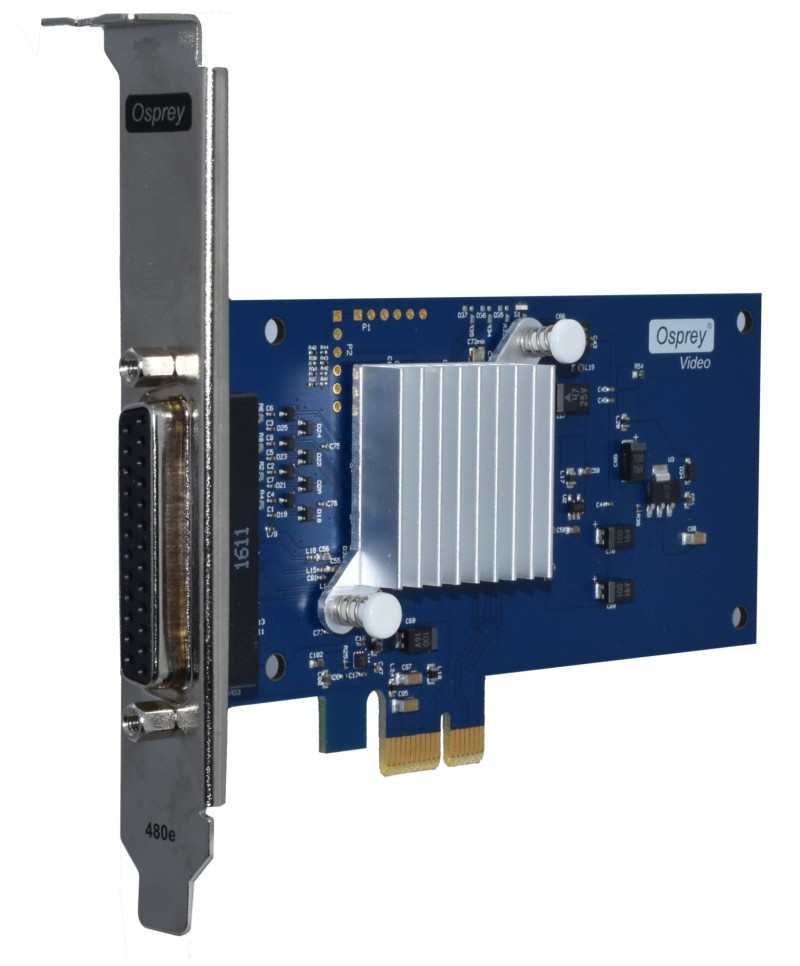

OSPREY 480e

• Medialooks SDK Support

• Independent Scaling and Frame Rate Conversion for each Input

Osprey Simulstream®

SimulStream lets you extract multiple streams with independent resolutions and frame rates from a single input.

Video Processing

• Frame Rate Conversion

• Text Overlay Watermarking

• Scaling

• De-Interlacing

Driver Support

• Windows

• Linux

Video Input

• 8x Composite/CVBS

Video Connector

• 8x BNC -RCA adapters included

Video Modes

• 720 x 480 29.97 30/i (NTCS)

• 720 x 576 25/i (PAL)

Weight

• Ca. 0,048kg

Power Consumption

• 12W

Temperature

• Operating: 0°C-40°C

• Non Operationg -40°C – 75°C

Rel Humidity

• Operating: Between 5% and 80% (non condensing)

• Non Operating: 95% RH (non condensing); gradient 30% per hour

Warranty

• 1x 480e Video Capture Card

• 1x Full and Half height Bracket

• 1x Breakout Cable and 8x BNC to RCA Adapters
