OSPREY 210e

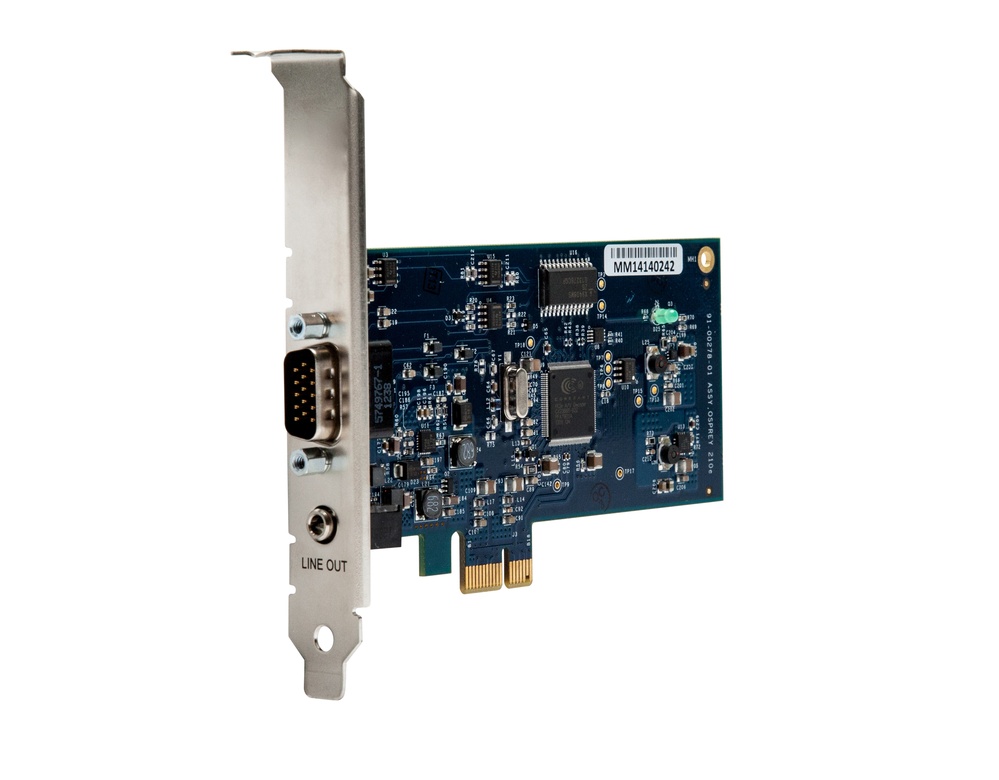

Art.Nr. VS-OS-95-00477Osprey 210e Video Capture Card with PCIe Analog Video Capture with Stereo Audio
The Osprey 210e video capture card offers legendary Osprey dependability in a single channel analog video card with unbalanced stereo audio input. It´s proven liability makes this a perfect card for mission critical video on PC´s with modern PCIe architecture.
Single Channel with Switchable Inputs
1x Composite (RCA)
1x S-Video (mini-DIN)
Audio
Unbalanced stereo (RCA x2) or Mini Phono (3.5mm)
Multiple Card Support
Deploy two or more cards in a single PC chassis for maximum versatility.
Driver Support
Microsoft® DirectShow® drivers are available for compatibility with most software
Windows SDK lets you create custom applications
Driver Based Pre-Processing
Closed-Caption extracting and rendering
Logo/Bitmap overlay
Scaling, cropping, De-interlacing and inverse telecine
Mission Critical Video Capture
Security such as ATM machines
Medical and scientific equipment
Surveillanve equipment
Format
PCIe x1
Slots: x1, x4, x8, x16
PCIe 1.1
Video Input
Composite
S-Video
Video Connector
Composite (BNC x1) (RCA adapter included)
S-Video (mini-DIN)
Video Modes
NTSC/PAL
720 x 480 29.97, 30/i (NTSC)
852 x 480, 29.97, 30/i (NTSC Wide Screen)
720 x 576 25/i (PAL)
Wide Screen Signaling (WSS)
Audio Input
Unbalanced Stereo (3.5 mini phono)
Audio Output
Unbalanced stereo line (3.5mm)
Audio Connector
Unbalanced stereo (RCA x2)
Unbalanced (3.5 mini phono) stereo
Dimensions
12,70 x 6,88cm
Low Profile/half length
Weight
Ca. 0,042kg
Power Consumption
2,62W
Temperature
Operating: 0°C-40°C
Non Operationg -40°C – 75°C
Rel Humidity
Operating: Between 5% and 80% (non condensing)
Non Operating: 95% RH (non condensing); gradient 30% per hour
Warranty
1 Year limited hardware warranty
Compliance
CEE, FCC, ROHS, WEEE

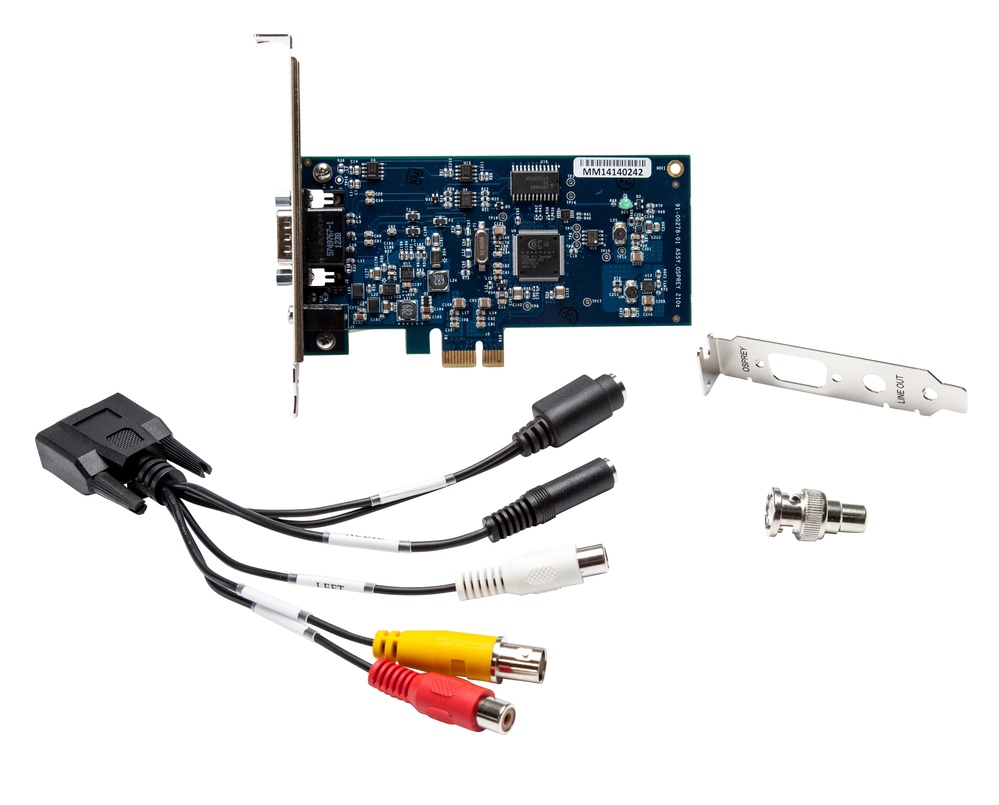

1x 210e Video Capture Card
1x Low Profile Bracket
