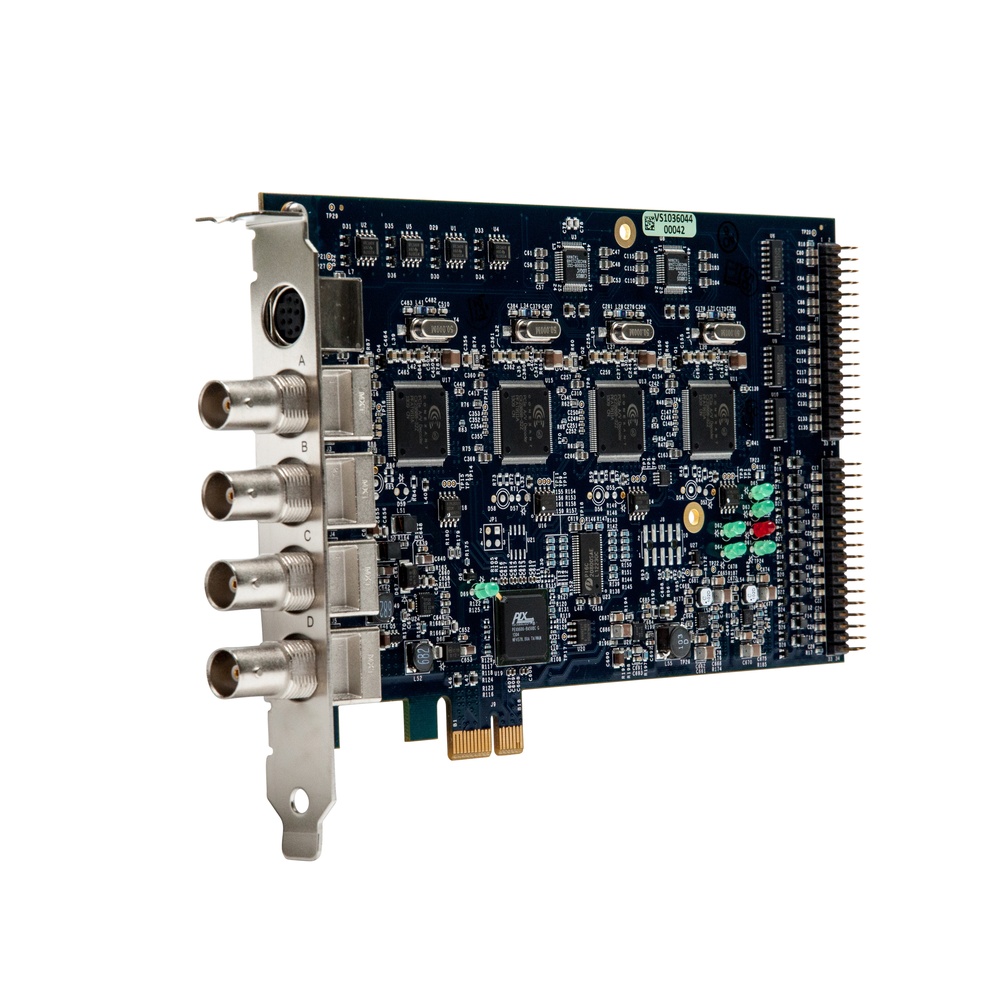

OSPREY 460e with SimulStream
Art.Nr. VS-OS-95-00472Osprey 460e Video Capture Card with PCIe 4 Channel Analog Video Capture with expansion option and SimulStream
The Osprey 460e video capture card features four channels of analog composite video. For it is an excellent choice for high density capture on modern PC platforms. The unique A/V expansion option opens a whole world of possibilities for this high-quality capture card.
Four Channel Analog Video
Multiple Card Support
Deploy two or more cards in a single PC chassis for maximum versatility.
Driver Support
Microsoft® DirectShow® drivers are available for compability with most software.
Open Source Linux V4L drivers available
Windows SDK lets you create custom applications.
Driver Based Pre-Processing *
Closed-caption extracting/rendering
Logo/bitmap overlay
Scaling, cropping, de-interlacing and inverse telecine
*Windows DirectShow only
AV Expansion Option
The Osprey 460e AV option (pictured below) provides additional video inputs and four stereo balanced audio inputs to the rear panel connectors. The optional video inputs include the selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs for a total of 16 switchable composite inputs per card.
Osprey SimulStream®
SimulStream is an optional Osprey feature thatallows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.
Format
Slots: x1, x4, x8, x16
PCIe 2.0
Video Input
Component
S-Video
Video Connector
(BNC – RCA adapters included)
(Additional BNC x12 optional)*
Y/C x 4 (BNCx8) (optional)*
*Requires AV option board
Video Modes
NTSC/PAL
720x480 29.97, 30/i (NTSC)
852x480, 29.97, 30/i (NTSC Wide Screen)
720x576 25/i (PAL)
Wide Screen Signaling (WSS)
Audio Input
Balanced Stereo x4 (XLR x8) (optional)*
*Requires AV option board
Audio Connector
RCA via breakout cable
Dimensions
Weight
Power Consumption
Temperature
Operating: 0°C – 40°C
Non operating: -40°C – 75°C
Rel Humidity
Operating: Between 5% and 80% (noncondensing)
Non operating: 95% RH (noncondesning); gradient 30% per hour
Warranty
1 year limited hardware warranty
Compliance
DE, FCC, ROHS, WEEE

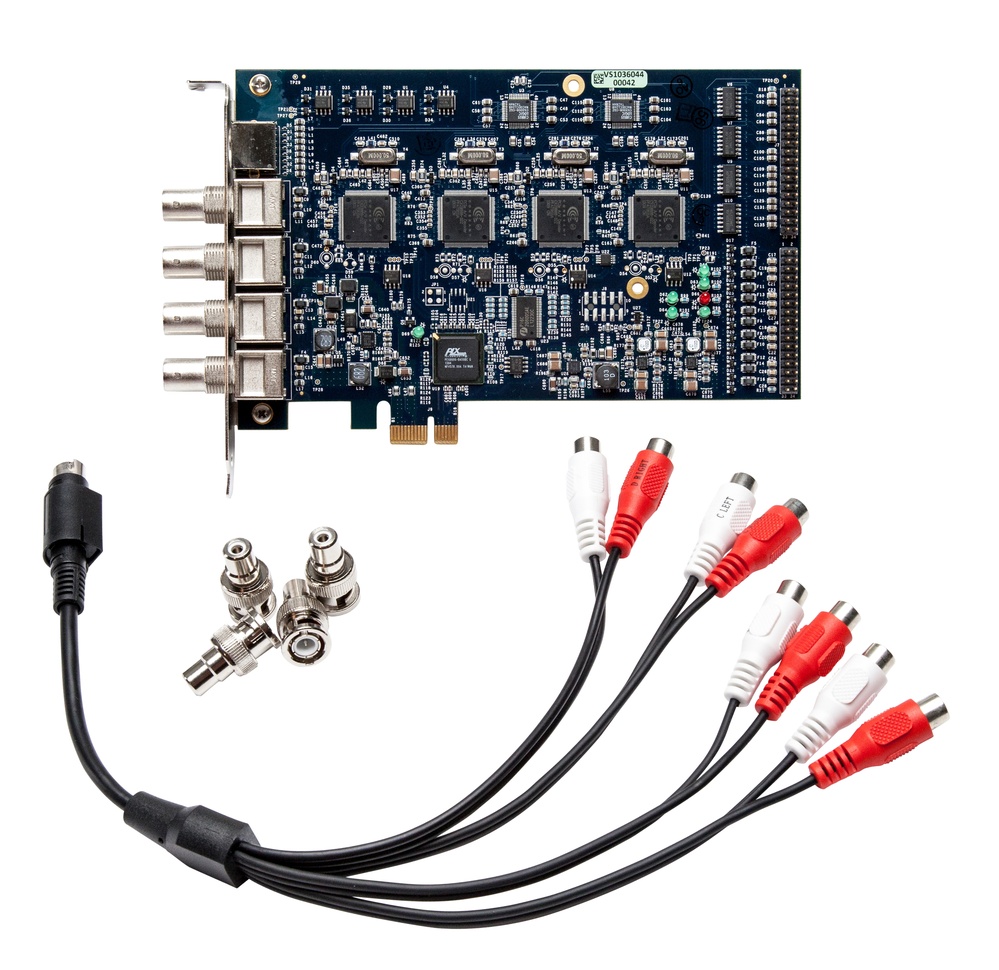

1x Audio Breakout Cable (8x RCA)
