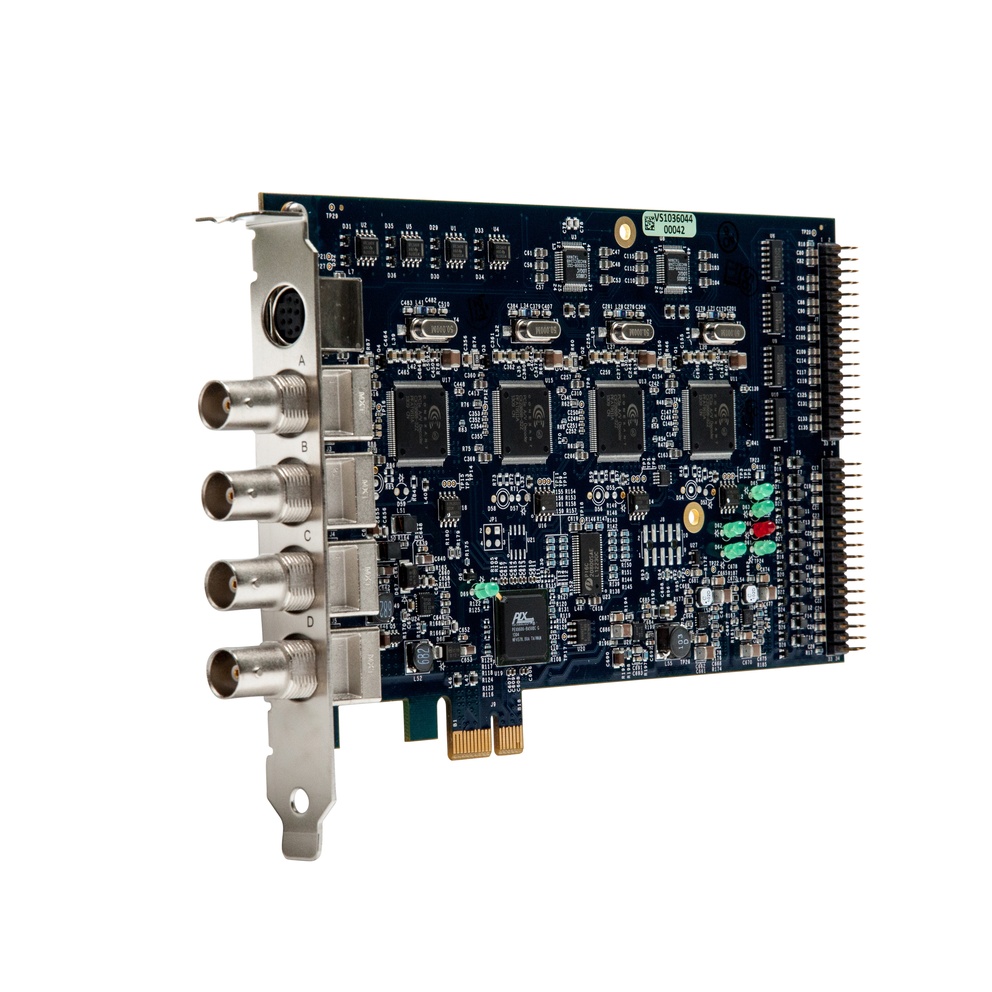

OSPREY 460e

Four Channel Analog Video

• 4x composite (BNC x4)

Audio Inputs

• Unbalanced Stereo (RCA x8)

Multiple Card Support

Deploy two or more cards in a single PC chassis for maximum versatility.

Driver Support

• Microsoft® DirectShow® drivers are available for compability with most software.

• Open Source Linux V4L drivers available

• Windows SDK lets you create custom applications.

Driver Based Pre-Processing *

• Closed-caption extracting/rendering

• Logo/bitmap overlay

• Scaling, cropping, de-interlacing and inverse telecine

*Windows DirectShow only

AV Expansion Option

The Osprey 460e AV option (pictured below) provides additional video inputs and four stereo balanced audio inputs to the rear panel connectors. The optional video inputs include the selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs for a total of 16 switchable composite inputs per card.

Format

• PCIe (x1)

• Slots: x1, x4, x8, x16

• PCIe 2.0

Video Input

• Composite

• Component

• S-Video

Video Connector

• Composite x4 (BNC x4)

• (BNC – RCA adapters included)

• (Additional BNC x12 optional)*

• Y/C x 4 (BNCx8) (optional)*

• Requires AV option board

Video Modes

• NTSC/PAL

• 720x480 29.97, 30/i (NTSC)

• 852x480, 29.97, 30/i (NTSC Wide Screen)

• 720x576 25/i (PAL)

• Wide Screen Signaling (WSS)

Audio Input

• Unbalanced Stereo x4 (RCA x8)

• Balanced Stereo x4 (XLR x8) (optional)*

*Requires AV option board

Audio Connector

• Unbalanced Stereo (4 pair)

• RCA via breakout cable

Dimensions

• 16,76 x 11,13cm

Weight

• Ca. 0,227kg

Power Consumption

• 11W

Temperature

• Operating: 0°C – 40°C

• Non operating: -40°C – 75°C

Rel Humidity

• Operating: Between 5% and 80% (non-condensing)

• Non operating: 95% RH (non-condesning); gradient 30% per hour

Warranty

• 1 year limited hardware warranty

Compliance

• DE, FCC, ROHS, WEEE

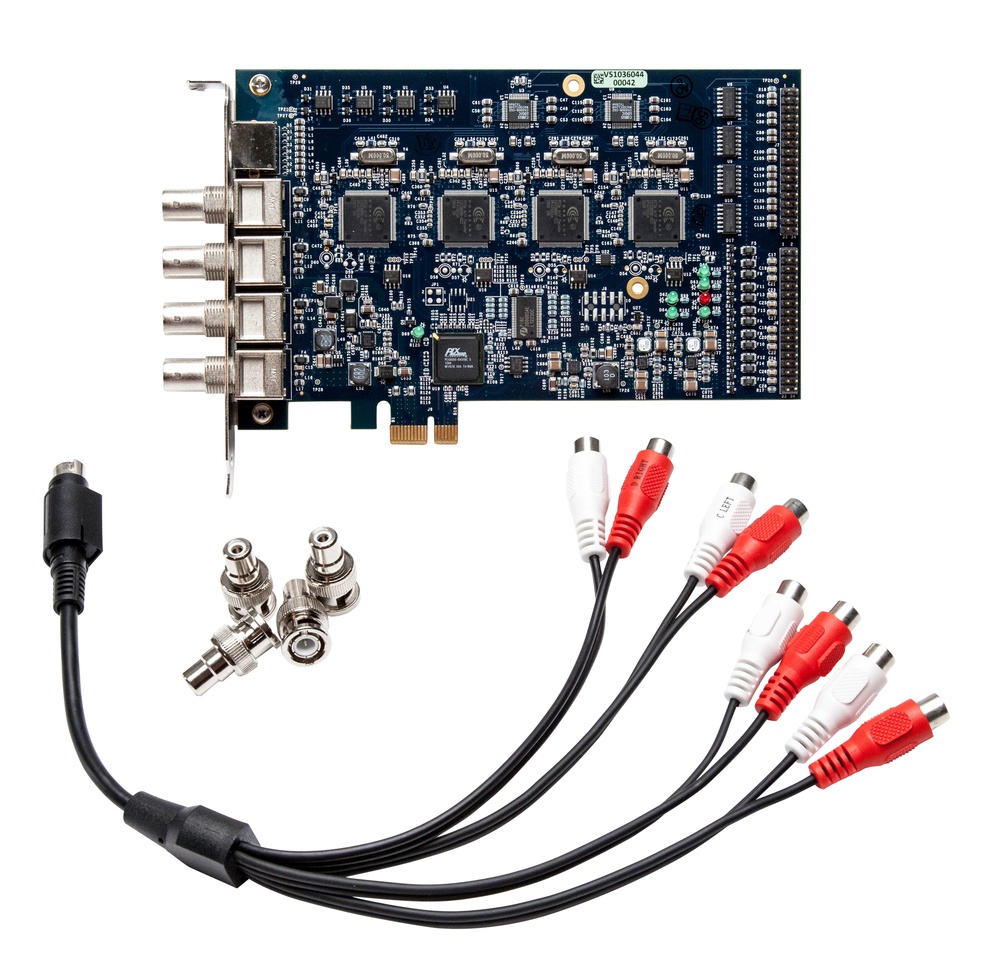

• 1x Osprey 460e Video Capture Card

• 1x Audio Breakout Cable (8x RCA)
