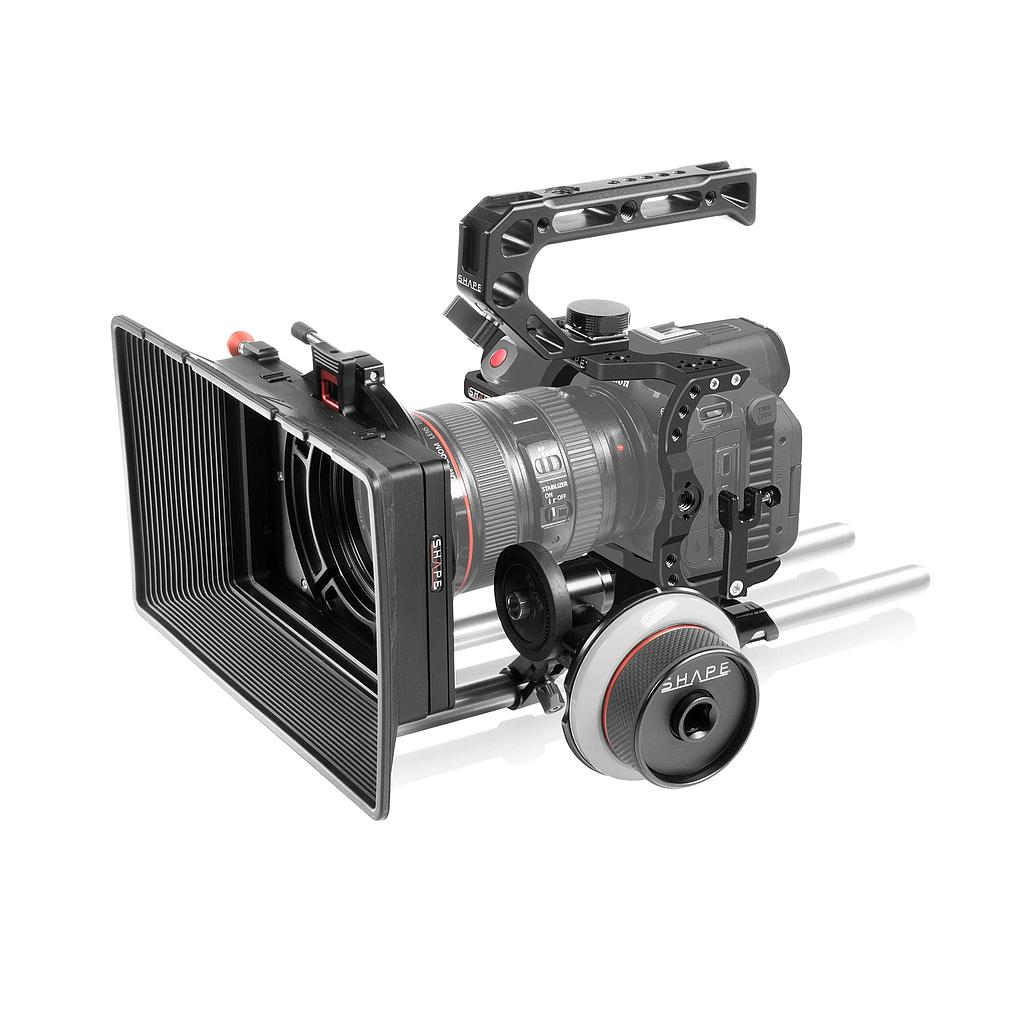

SHAPE Kit mit Matte Box Follow Focus für CANON R5C/R5/R6
Art.Nr. SHR5CKITSHAPE Canon EOS R5C, R5, R6 Full Camera Cage with 15mm LWS Rod System (R5CROD)
Canon R5C Cage (R5CCAGE)
Made of CNC-machined aluminum, the cage is specifically designed for the
Canon R5C, R5 and R6 cameras. The camera is mounted to the cage using a
1/4-20 screw. The cage is designed with several 1/4-20 threaded holes
and seven 3/8″-16 threaded holes with anti-rotating Arri hole patterns.
The design of the cage also allows easy access to all control buttons,
side outputs, the memory card, the battery compartment, the lens release
button and the camera hot shoe for the audio unit system. All doors and
locks are fully usable when the camera is in the cage and its
intelligent design allows you to operate the camera without having to
remove the cable doors. In addition, the strap hooks can remain attached
to the camera while being inserted into the cage. A detachable lock
system to secure and hold in place your 4K Micro HDMI to HDMI cable is
included with the cage. The bottom of the cage has three 1/4-20 threaded
holes to mount a quick release tripod plate to switch from a tripod to a
shoulder configuration. The aluminum top handle included with the cage
offers cold shoe mounting options for additional accessories. A second
top handle can be added and attached on the sides of the cage for
vertical shoots.
A 15mm LW rod baseplate system is included and attached underneath the
cage with four M4 screws. A height adjustable Metabones® bracket is
included at the front of the baseplate for additional support. The
bottom of the baseplate has three threaded holes to attach quick-release
tripod plates.
SHAPE LIGHTWEIGHT SINGLE FILTER TRAY 4X5.6 MATTE BOX (LWAKS)
A
silicone matte box mounted on a CNC aluminum main frame with an outer
diameter of up to 124 mm. It provides a wide field of view for a large
variety of wide angle lenses.
A single filter tray system with an easy access handle that allow
one-handed filter change. The filter tray system opens up from the front
by releasing the red safety pin. 4x4 filters can also be installed in
the tray. The frame includes two stops at the bottom of the filter tray
section to prevent the filter from falling through.
Optional removable swing-away and height adjustable rod bloc can be
installed for better control.
An optional removable light carbon fiber french flag can be attached on
top to prevent flares. A series of adaptor rings are included in the
kit:
Clamp-on adaptor ring: 124-87 mm
Threaded aluminum adaptors rings: 87-82 mm / 87-77 mm / 87-72 mm / 87-67
mm
Additional clamp-on adaptor rings available (Optional): 124-114 mm /
124-104 mm / 124-100 mm / 124-95 mm
SHAPE kit focus single rod follow focus 15 mm LWs (FA123)
Use
the compact SHAPE Follow Focus Kit with Single 15 mm Rod Clamp with
your camera setup to make focus pulling easy. The modular design allows
you to add and remove any of the components without screws or tools, and
its small profile allows the addition of a matte box or accessories
around your lens. At the core of the kit is a rubber, anti-slip follow
focus wheels attached to a single aluminum 15 mm rod clamp. The clamp
rotates to adjust to most lens sizes, and it's tightened by a locking
lever. The clamp's rotation also allows the focus wheel to easily swing
out of the way when changing lenses. Five drive gears are included to
fit a variety of lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8
MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to
facilitate different lens configurations. A 49 mm rubber friction wheel
is also included for the 0.5 MOD/78T gear which is most commonly used
with DSLR lenses. For alternate fine-focus configurations, use the
included speed crank or 11" whip, both of which attach to the center
point of the knob. Four magnetic marking disks are included to attach to
the focus wheel.
- At the center of the knob, an ARRI-standard accessory port for attaching separately available accessories such as a whip or a speed crank;
- All gears can be flipped to the front or back position which is helpful for compact lens configurations;
- Two rotation points (one on the rod and one on the body) allowing you to get the follow focus perfectly aligned vertically on the side of the camera body;
- Swing Arm Design allows you to simply pull the follow focus away from the lens for a quick lens change then you can push it back into place when you're ready;
- A compact design takes little space, so you can still attach a matte box to the front;
- Use the swing arm to properly align the follow focus and then you can tighten the thumbscrew on the bottom to keep it in place.
For Canon R5C/R5/R6 cameras.
SHAPE kit focus single rod follow focus 15mm LWS.
A second aluminum top handle can be attached on side of cage for vertical shoots. (optional)
Strap hooks can remain attached to the camera while inserted in the cage.
Weight: 6.05 lbs
Dimensions: 12x10x9.75 in
Formfitting cage with multiple mounting options
Single filter tray 4×5.6’’ matte box
HDMI protector included
Aluminum top handle with cold shoe attachment options
15mm LW Rod Baseplate System
1 pair of 10’’ 15mm rods
