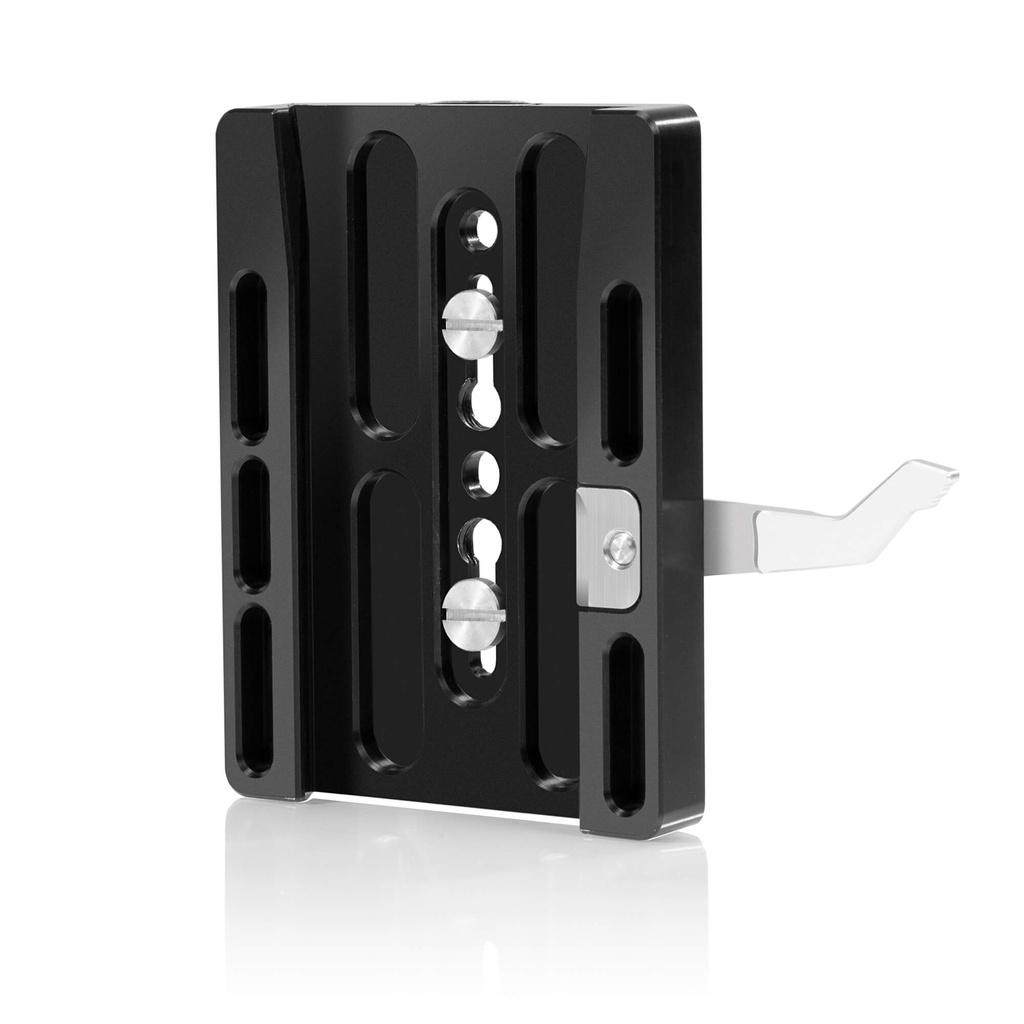

SHAPE UNIVERSAL BRIDGE PLATE ARRI AND 12" DOVETAIL PLATE ARRI STANDARD
Art.Nr. SHDPKLWUniversal bridge plate for lightweight ARRI standard 12" dovetail plate

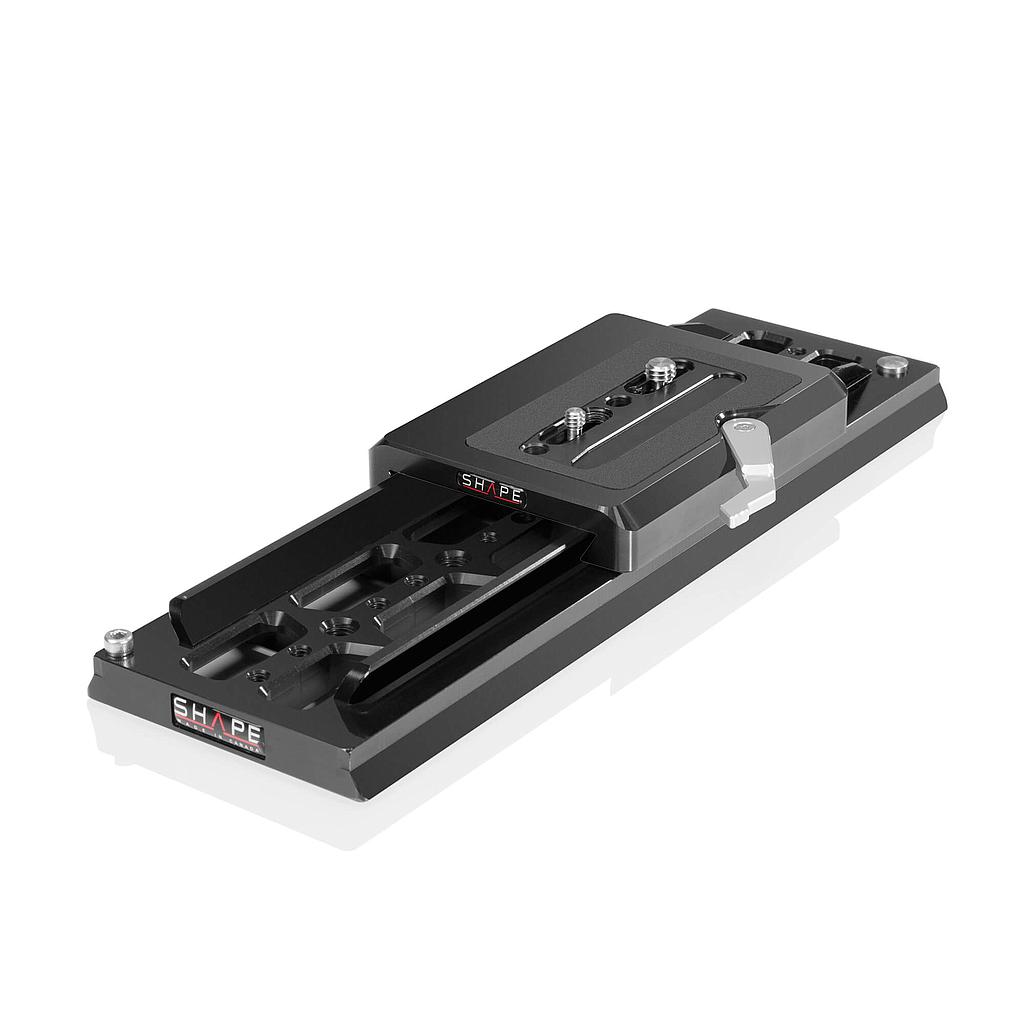

The SHAPE bridge universal plate can easily slide onto the lightweight ARRI standard 12″ dovetail plate (DP12A) for additional leverage and mounting options. It is made of CNC aluminum and it is also designed with a locking lever to secure the bridge plate to the dovetail. One 1/4″-20 and one 3/8″-16 screw allow mounting a variety of cameras and rod baseplates.

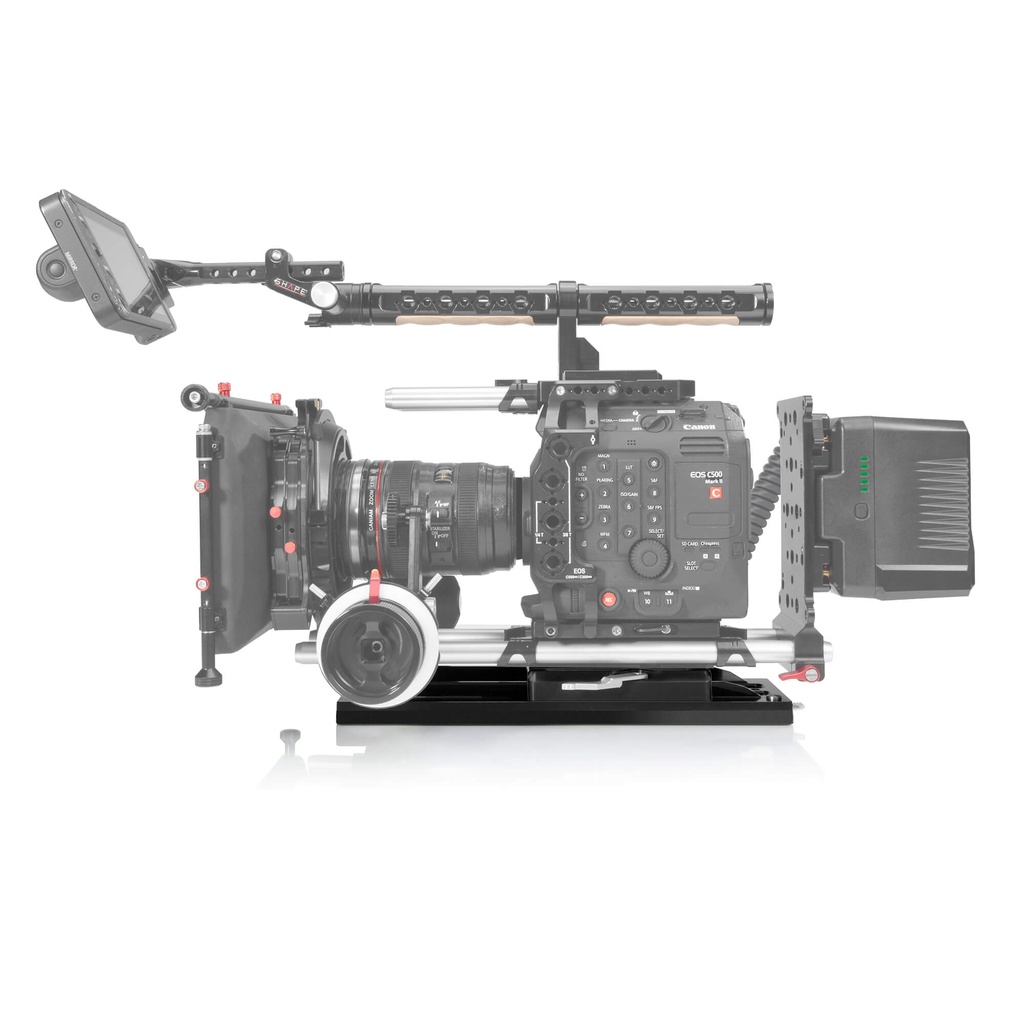

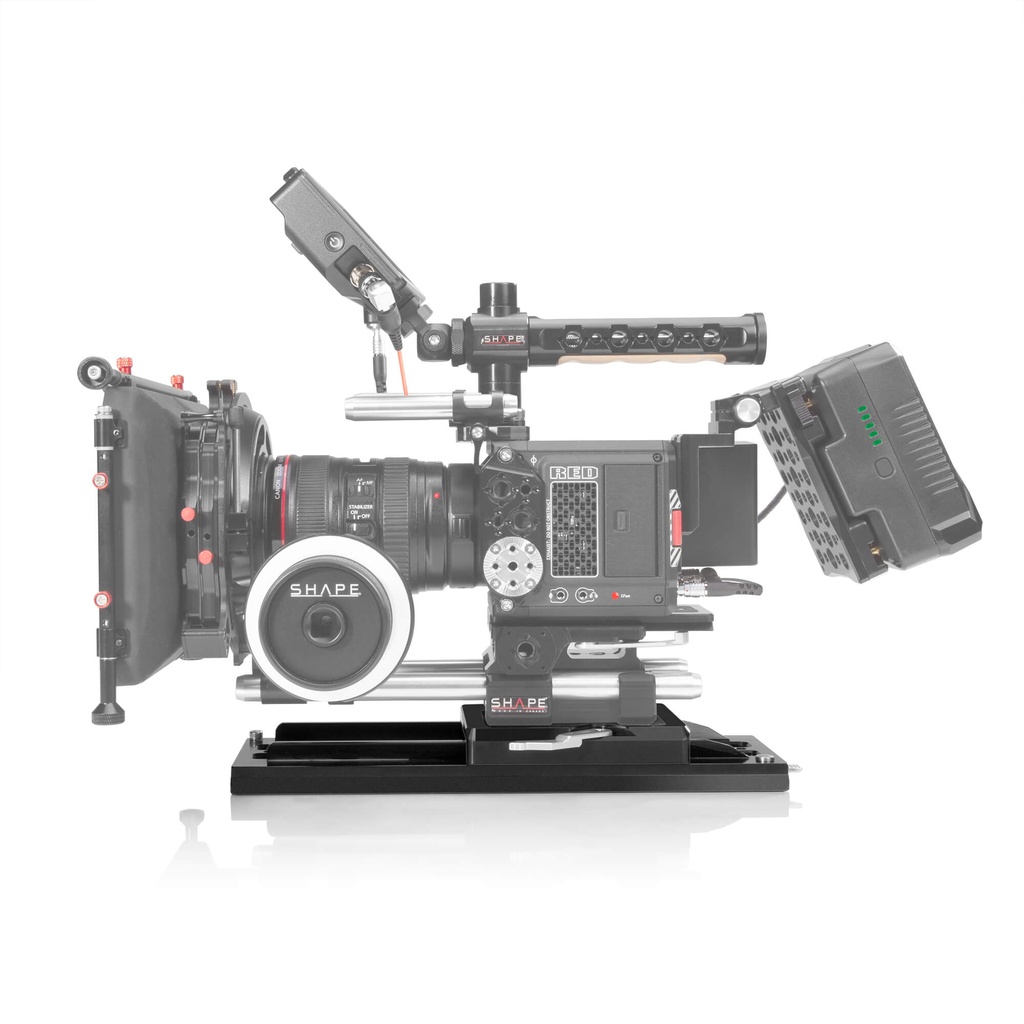

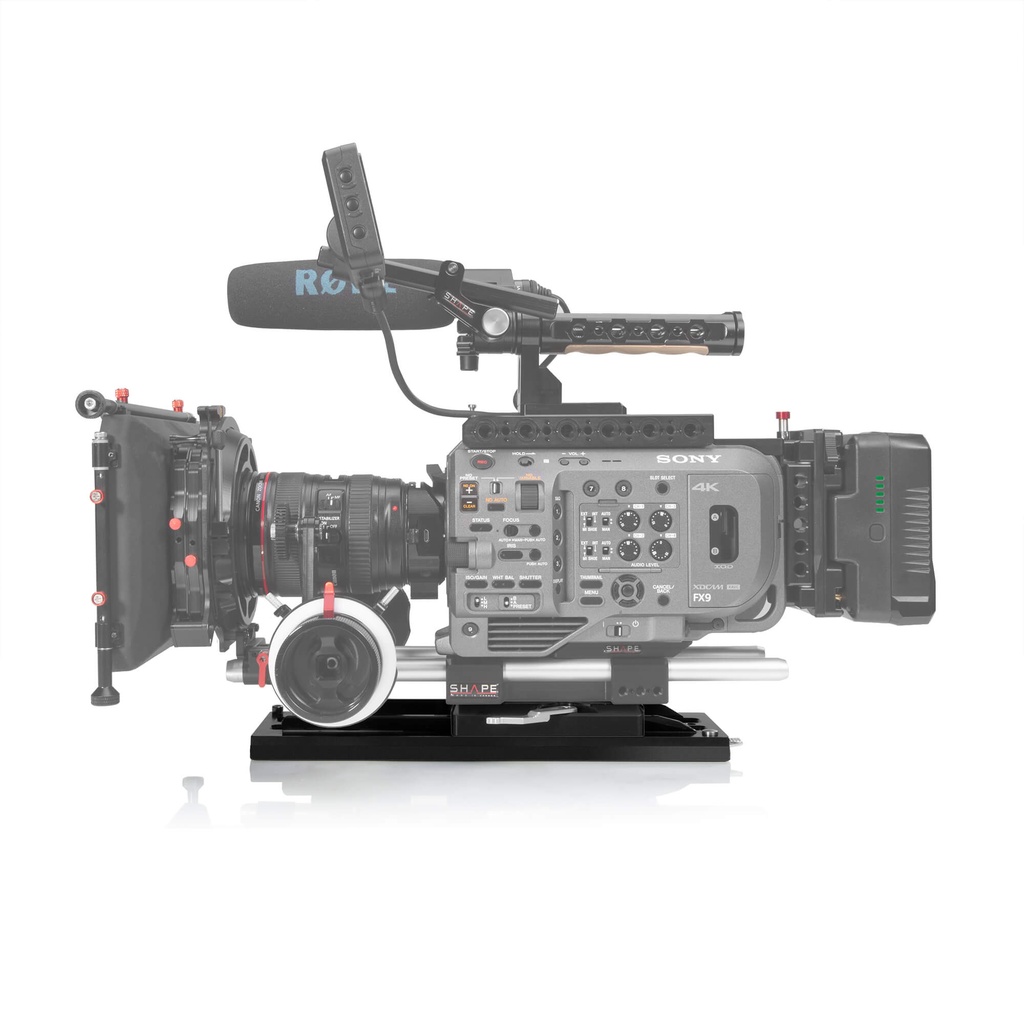

The Standard ARRI-Style Sliding Bridge Plate is used with a separately available dovetail plate to balance your camera as the weight of the rig is changed. The rubberized surface prevents the camera or rod baseplate from scratching and slipping. By adding this adapter plate, you can continue working with your proprietary 15mm LWS for any given camera.
Sliding Dovetail Design
ARRI Standard Studio Bridge plate
Balances Front- or Back-Heavy Equipment
Stopper Screw and Safety Latch
12 x 1/4″-20 and 5 x 3/8″-16 Threads
1/4″-20 and (1) 3/8″-16 captive screws

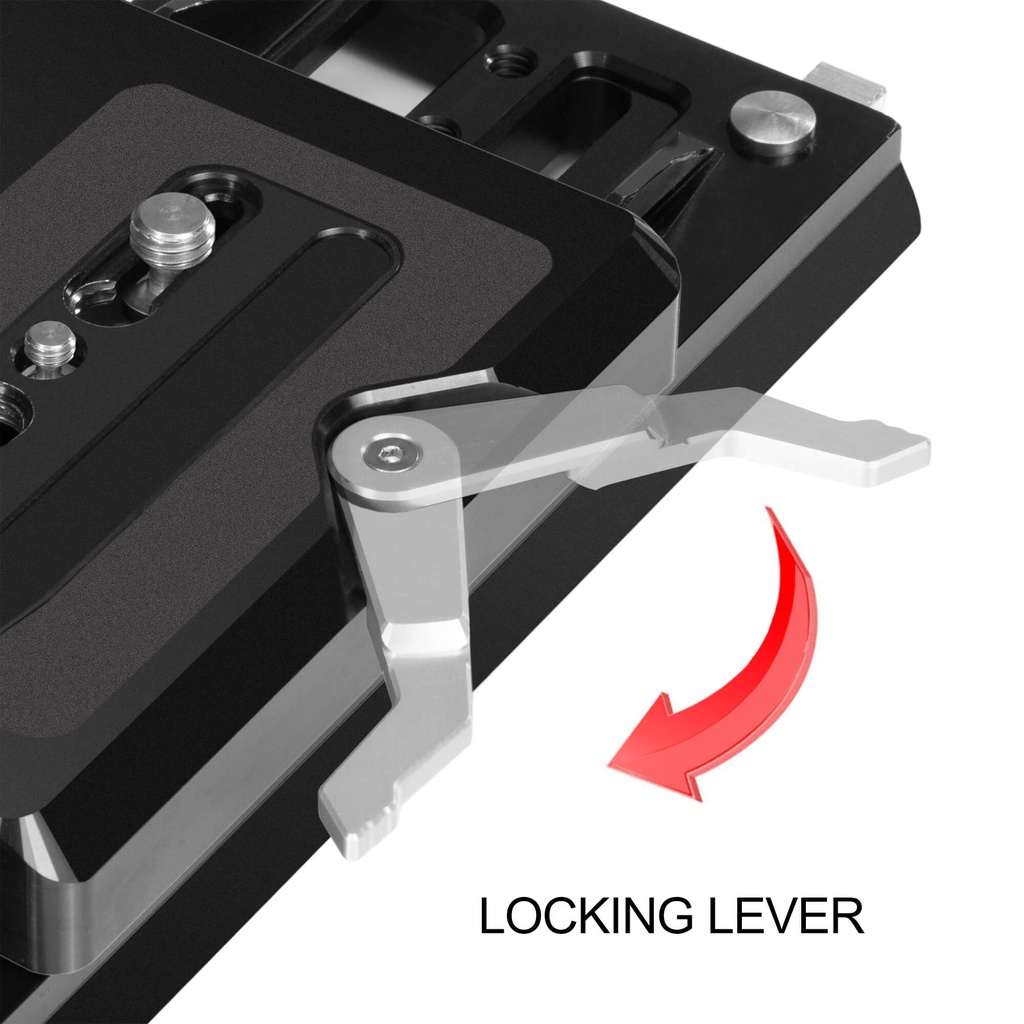

Locking Lever for Tightening
Teflon Coating
CNC-Machined Aluminum Construction
Dimensions: 30,48 x 9,53 x 3,18 cm
Weight: 1,10 kg
Warranty: All SHAPE products and accessories are covered by a manufacturer’s warranty solely on CNC machined parts.

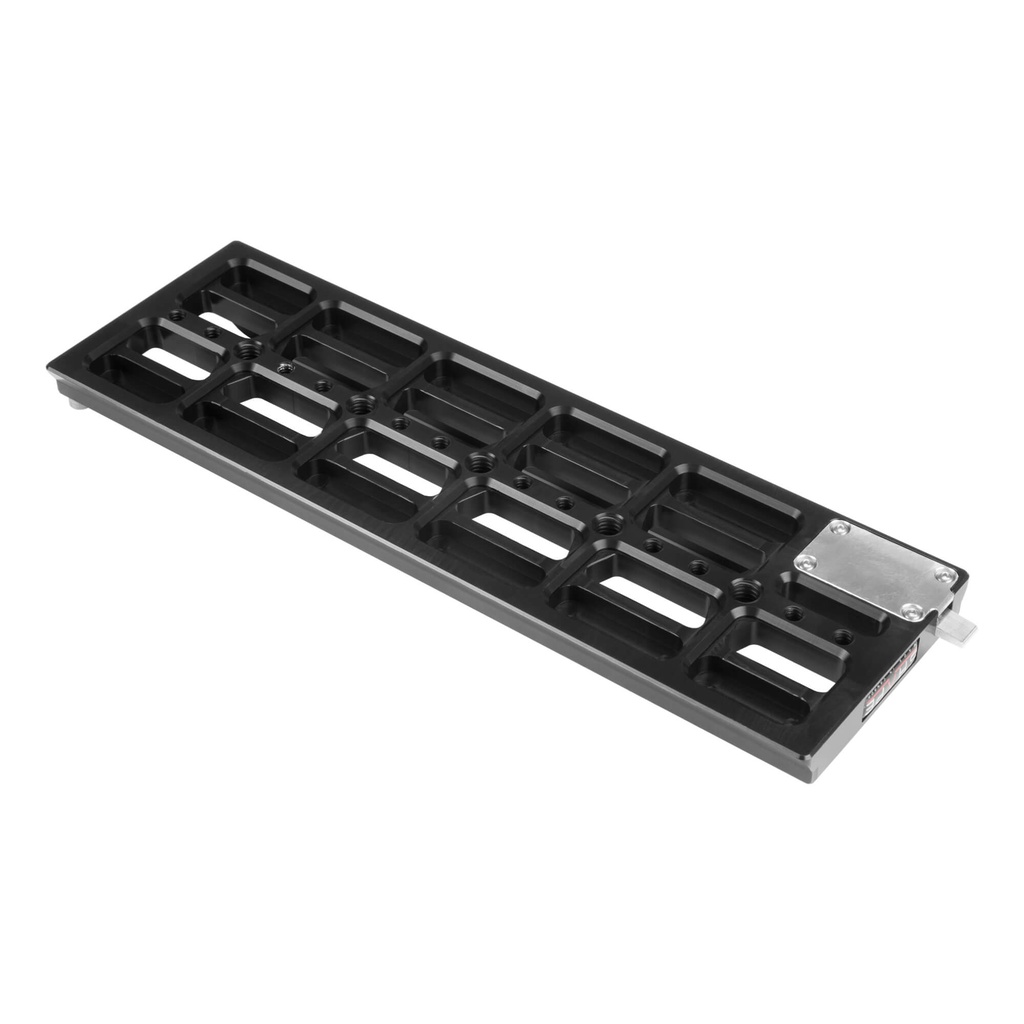

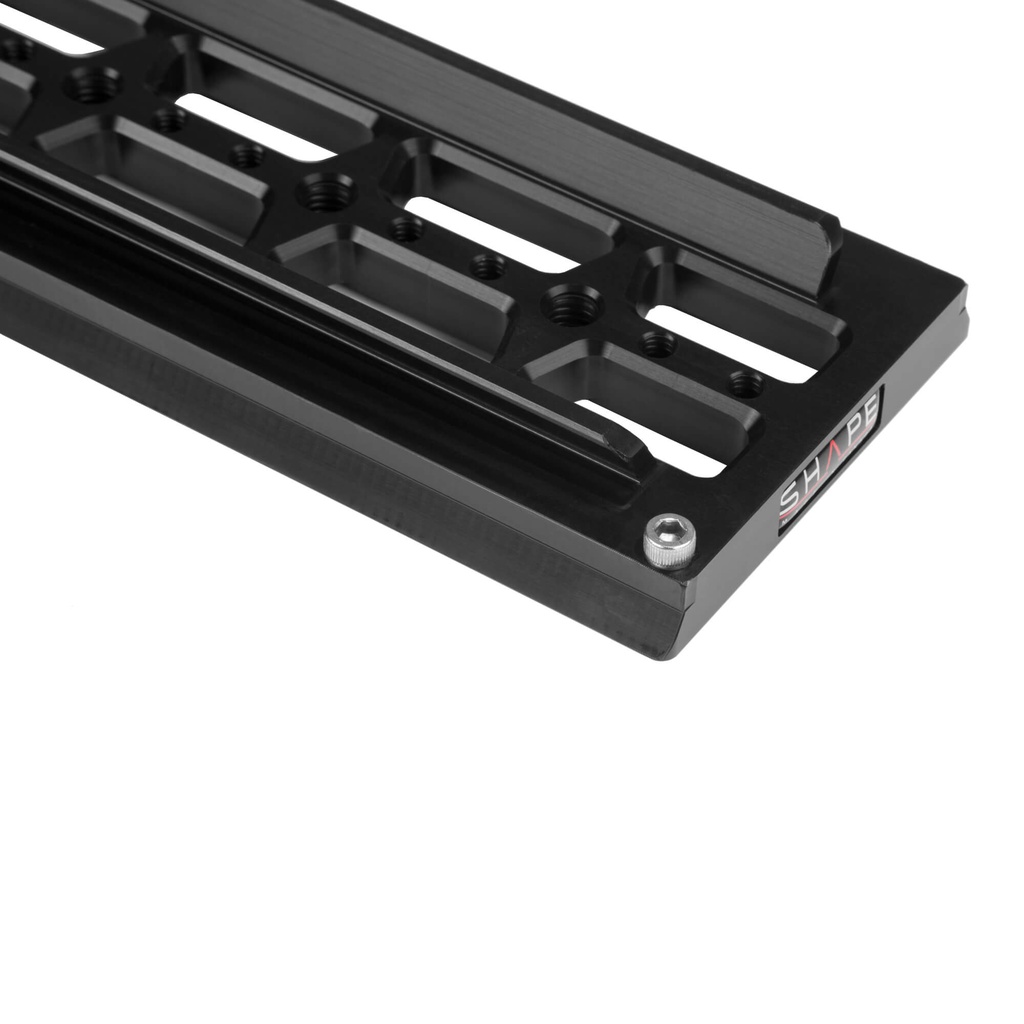

1 x Dovetail plate 12″ Arri standard
1 x ARRI Standard Studio Bridge plate
1 x 1/4″-20 captive screw
1 x 3/8″-16 captive screw
