SHAPE D-Box Camera Power and Charger für Panasonic GH4, GH5

Art.Nr. SHBXDMW

SHAPE D-Box Camera Power & Chrager with V-Mount for Panasonic GH4, GH5

 https://www.riwit.de/web/image/product.template/5530/image_1920?unique=afce640

407.85 € 407.85 € 407.85 EUR netto UVP

485.34 € 485.34 € 485.3415 EUR brutto UVP

Option nicht verfügbar

Not Available For Sale

This combination does not exist.

Contact Us

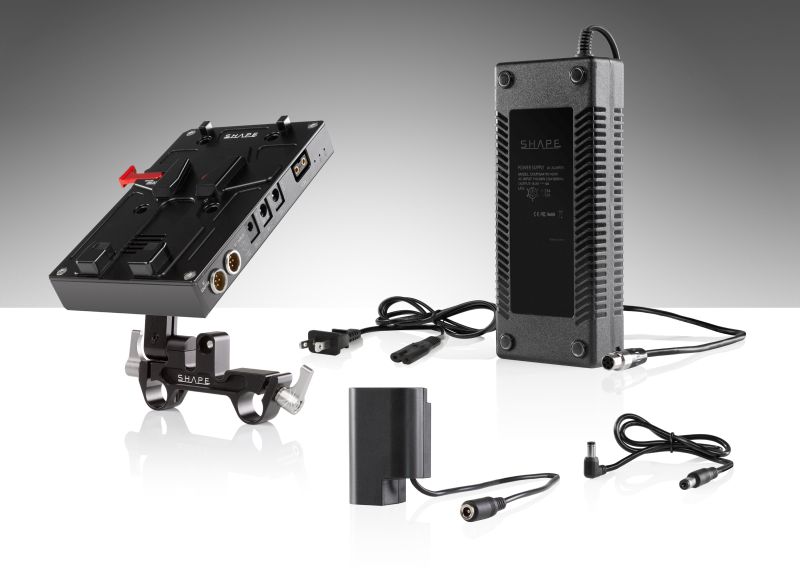

Use the D-Box Camera Power and Charger from SHAPE to power your Panasonic GH4 or GH5 camera and other accessories simultaneously with a V-Mount battery (not included) and continuous AC power. Multiple LED indicators on the D-Box show battery and power status.

The D-Box is designed to power your camera while also powering items like a monitor, smartphone, or lights, and when plugged into an AC outlet with the included AC adapter, you can remove the battery safely without powering down your camera.

The D-Box has a V-Mount battery plate, and on the side, there are four power outputs: one 20W, 5V/4A, one 40W, 8V/5A, one 60W, 12V/5A, and one D-Tap 100W, 16.8V/6A. On top there’s a 5V/4A USB Type-A port to power your smartphone or USB accessory. You can power multiple items simultaneously with up to 100W of total power consumption.

There are also threaded holes on the back of the plate for mounting options.

The charger comes with a cable connector to power your Panasonic GH4 or GH5 camera, an 8V output cable, a 15 mm rod mount to use with your 15 mm LWS rod system, a removable Delta plate, and an Allen wrench and screws for mounting your gear.

  • D-Box Power & Charger with V-Mount

  • Lightweight battery plate and rod bracket (1.1 lbs; 0.45 kg)

  • For Panasonic GH4/GH5

  • 20, 40, 60, 100W & 5V USB Outputs

  • Supports up to 100W Power Consumption

  • AC Power Supply & Cable

  • LED Indicators

  • 15 mm Rod Mount & Threaded Holes

  • Remove Battery Safely When AC Plugged In


  • Weight: 1,05 kg

  • Dimensions: 14,00 x 8,99 x 2,01 cm

  • Material: Aluminium

  • Warranty: All SHAPE products and accessories are covered by a manufacturer’s warranty solely on CNC machined parts.


Connectors

  • (1) Cable (16”) compatible with PANASONIC GH4, GH5 SERIES

  • (1) Output Cable (23”) compatible with 8V or 12V outputs

  • (1) output 5V:4A ; (1) output 8V:5A ; (1) output 12V:5A

  • (1) D-TAP output 16.8V:6A

  • (1) USB output 5V:4A

  • *5V OUTPUT CABLE NOT INCLUDED

Charger and Power Devices

  • (1) Power Supply. Input (110-240V:2A 50/60Hz); Output (16.8V:6A)

  • (1) BP Charger input to use and charge battery at the same time

  • (1) Ac Adapter input to use without a battery

  • (1) AC Power Cable

  • 15 mm Rod Mount System device


  • 1 x SHAPE D-Box Power and Charger (V-MOUNT)

  • 1 x SHAPE Power Supply

  • 1 x SHAPE AC Power Cable

  • 1 x SHAPE Cable Output Connector (8V,12V)

  • 1 x SHAPE Cable Connector (GH4, GH5)

  • 1 x SHAPE 15mm Rod Mount Device

  • 1 x SHAPE Removable Delta Plate

  • 1 x SHAPE Tool Box Kit (Alley Key and Mounting Screws)
