RGBlink PTZ CAMERA CONTROL
Art.Nr. RGPTZCONTThe PTZ Camera Control is compatible with PTZ cameras that support the Onvif, Visca and elco-D/P protocols.

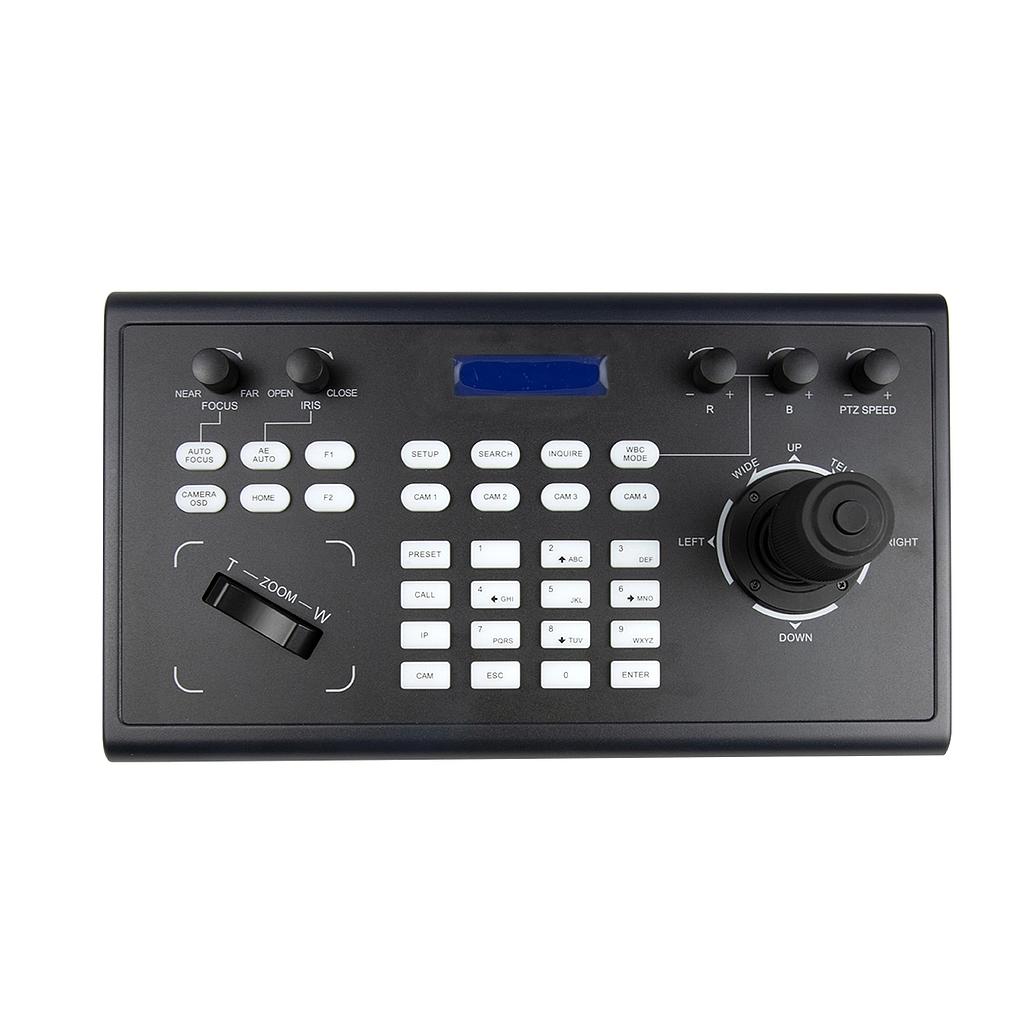

The RGBlink PTZ Camera Control is the professional control unit for up to 255 PTZ cameras in an IP network. The solid metal design in combination with non-slip rubber feet ensures a stable stand when working. The silicone-covered buttons with green backlighting ensure comfortable operation. The joystick for controlling camera movements works very sensitively in 8 directions, and a zoom control and lock button are also integrated. A two-line, blue illuminated LCD display, shows the current configurations.
Configuration:
The camera controller can be operated in DHCP mode or with a fixed IP address. The supported protocols ONVIF, VISCA and PELCO-D/P ensure compatibility with many camera manufacturers. The search button can be used to quickly find and configure up to 255 cameras in the network. There are convenient quick-select buttons for four cameras. In addition, entering the IP address in a browser opens a web menu that facilitates the search and integration of PTZ cameras in the network.
Control options
The PTZ cameras can be moved directly via the joystick; in addition, fixed viewing angles and zoom levels can be saved and recalled for each camera. The zoom rocker and the joystick can be operated simultaneously for quick position changes. The rotation speed can be adjusted in several steps. There are knobs for manual control of focus, iris and white balance, and there are also corresponding buttons for automatic mode.
The RGBlink PTZ Camera Control is the perfect tool to create a professional workflow! Simple and clear handling enables professional work.
Multiple control and network protocol
LCD screen on front panel with key tone
Control code modified by customers
Camera speed control via joystick
Camera parameter adjustment via keys
Multiple control connectors up to 255 cameras
Supports PoE
Connectors:
Communication: RS232: 1xDB15, RS422 (RS485): 1x5Pin Terminal LAN: 1xRJ45
Performance:
Control Protocol: VISCA | Pelco-D | Pelco-P
Network Protocol: ONVIF | VISCA
Baud Rate (dps): 2400 | 4800 | 9600 | 19200 | 38400 | 115200
Display: LCD Screen
Key Tone: ON/OFF
Joystick: Four dimensions (control: up, down, left, right, zoom, rotation)
Upgrade: WEB upgrade
Power:
Input Voltage: DC12V
Max Power: 6W
Environment:
Temperature: -10°C ~ 50°C
Humidity: 0% ~ 90%
Physical:
Dimension: 320mm x 179.3mm x 109.9mm
1x RGBLink PTZ CAMERA CONTROL
1x 230V Power supply unit
