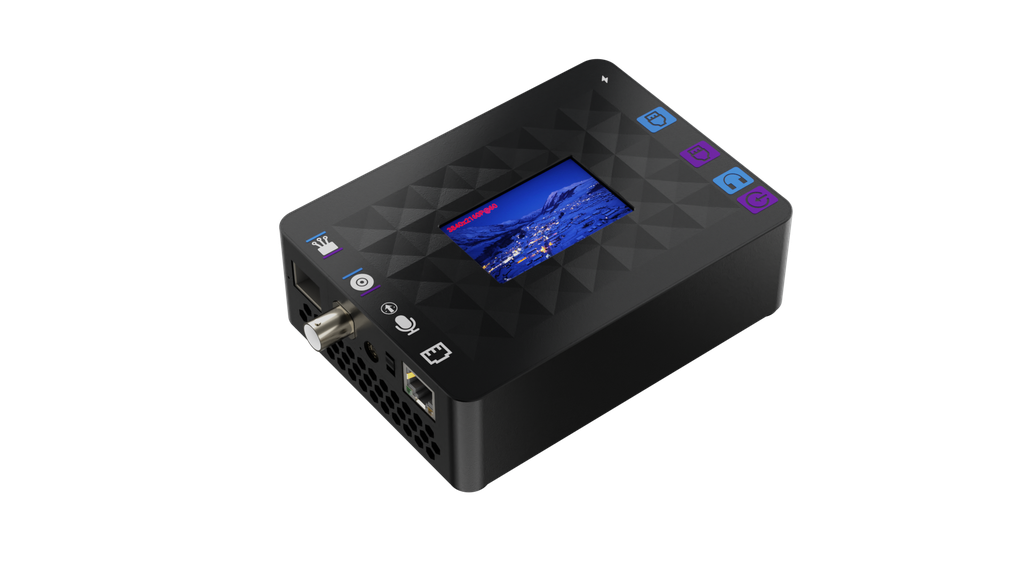

RGBlink MSP 405
Art.Nr. RGMSP405HDMI/SDI/Fiber Convertor
Cross convert multiple signal types with this MSP 405 HDMI/SDI/Fiber Converter from RGBlink. The compact unit features HDMI 2.0, 12G-SDI, and SFP fiber inputs and outputs, and it can be configured to input, output, and convert up to UHD 4K video in various I/O configurations. It also includes analog audio input and output to embed or playback/output audio. An LCD touch display allows you to preview your video and select sources and outputs as well as configure a test pattern. A USB-C input is available for firmware upgrades.
Conversions
- Convert SDI signal (HD/3G/6G/12G-SDI) to HDMI 2.0 signal; supports auto-format adaptation
- Convert HDMI 2.0 signal to SDI signal (HD/3G/6G/12G-SDI); supports auto-format adaptation
- Convert LC fiber signal to SDI signal (HD/3G/6G/12G-SDI); supports medium to long-distance transmission and auto-format adaptation
- Convert SDI signal (HD/3G/6G/12G-SDI) to fiber signal; support signal relay for long-distance transmission
- Convert HDMI 2.0 signal to LC fiber; support medium to long-distance transmission and auto-format adaptation
- Convert LC fiber signal to HDMI 2.0 signal; support medium to long-distance transmission and auto-format adaptation
Additional Features
- Standard Test Pattern generator built in for on-site setup
- Upgrade and control via USB-C port and dip switches
- Built-in LCD preview monitor with touch panel for menu operation
- Auto Power Switching: when the primary battery's charge is low, it automatically switches to the backup battery
- Audio playback and embedding function
- Convert SDI signal (HD/3G/6G/12G-SDI ) to HDMI 2.0 signal; support auto format adaptation
- Convert SDI signal (HD/3G/6G/12G-SDI ) to fiber signal; support signal relay for long-distance transmission
- Convert HDMI 2.0 signal to SDI signal (HD/3G/6G/12G-SDI ); support auto format adaptation
- Convert HDMI 2.0 signal to fiber; support medium to long-distance transmission and auto format adaptation
- Convert fiber signal to SDI signal (HD/3G/6G/12G-SDI ); support medium to long-distance transmission and auto format adaptation
- Convert fiber signal to HDMI 2.0 signal; support medium to long-distance transmission and auto format adaptation
- Built-in preview monitor with touch panel for menu operation
- Equipped with battery case[1] for installing up to two camera batteries
- Auto Power Switching: When the primary battery’s charge is low, it automatically switches to the backup battery
- Standard Test Pattern generator built in for on-site setup
- Audio playback and embedding function
- Upgrade and control via Ethernet interface for system integration
Interface Input HDMI 1×HDMI-A
SDI 1×BNC
Fiber 1×LC
Output HDMI 1×HDMI-A
SDI 1×BNC
Fiber 1×LC
Audio Line In 1×3.5mm Audio Socket
Line Out 1×3.5mm Audio Socket
Power Power Supply 1×Type-C Power Jack
Control LAN 1×RJ45
Reset 1×IP Reset Button
Switch 1×Dial Switch
1×DIP Switch (embedded/external audio)
Performance Resolution HDMI 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@25/29.97/30/50/59.94/60 | 2160p@25/29.97/30/50/59.94/60
SDI 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@25/29.97/30/50/59.94/60 | 2160p@25/29.97/30/50/59.94/60
Fiber 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@25/29.97/30/50/59.94/60 | 2160p@25/29.97/30/50/59.94/60
Supported Standards HDMI 2.0b
SDI HD/3G/6G/12G
Fiber SFF8431(SFP+)
Fan 1×built-in fan (speed auto adjusted)
Power Input Voltage Type-C 12V/1.5A
Physical Net Weight 501g
Net Dimension 133mm × 98.4mm × 41.9mm
1x RGBlink MSP 405
