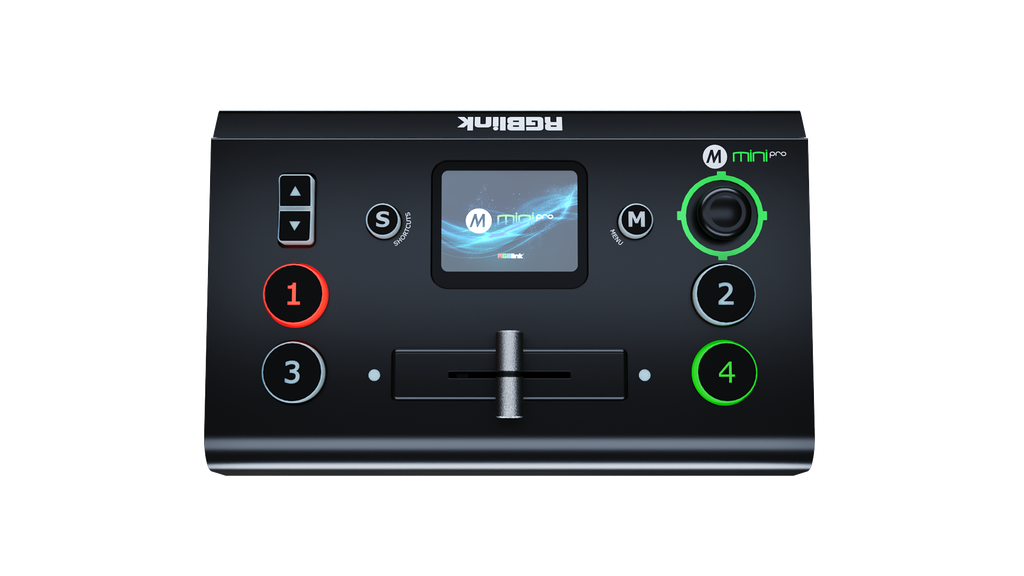

RGBlink Mini Pro V3
Art.Nr. RGMINIP3Video/Streaming Switcher with 4 HDMI-Inputs
This is the 3rd generation of mini-pro, mini-pro v3 features four 4K HDMI inputs and dual HDMI outputs. Both Line and Mic level audio supported on aboard with variable delay controls to bring audio into sync if needed. USB output supports YUY2, MJPEG and H.264 encoding formats, which can be recognized as webcam for streaming to Facebook, YouTube, ZOOM, etc.
Mini-pro is built with LCD touch screen to display video sources. mini-pro supports TAO Cloud integrated control, simultaneous streaming to 4 live streaming platforms via RTMP(S) and 24/7 recording with capacity of hard drive up to 2TB. Mini-pro is packed with features including dynamic output control, multi-view preview, picture in picture, Chroma Key, transitions, on board PTZ camera controls and much more.
• mini and is convenient to carry
• USB 2.0 one-key recording in exFAT or FAT32 format with bitrate up to 16Mbps
• Built-in LCD for video preview and touch menu operation
• USB output supports YUY2 and MJPG format, which can be recognized as webcam for streaming
• Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolutions up to 4K@60
• Support RTMP(S) network streaming up to 2 platforms
• Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or AUX
• Save and load PTZ presets. One-click for preset recall
• Mix for 4-channel HDMI embedded and 2-channel external audio
• 5-direction joystick and toggle for controlling PTZ camera (IP VISCA Protocol supported)
• AUTO and WIPE Switch mode available
• Specify either “green ” or “blue” as the key color for Chroma Key
• 15 transition effects
• Support APP and TAO Cloud integrated control, compatible with mobile devices and desktop
Connectors Input HDMI 4K 4×HDMI-A
Output HDMI 2K 2×HDMI-A
USB (Record) 1×USB-A
USB (Stream) 1×USB-A
Audio Input 2×3.5mm mini-Jack
Ouput 1×3.5mm mini-Jack
Communication/Stream LAN 1×RJ45
Power Power Supply 1×USB-C
Performance Input Resolutions HDMI 2.0 1280×720p@50/60 | 1280×768p@60 |1280 ×1024p@60 | 1360×768p@60 | 1366×768p@60 | 1600×900p@60 | 1920×1080i@50/60 |
1920×1080p@30/50/60 | 3840×2160p@23.97/24/25/29.97/30/50/59.94/60
Output Resolutions HDMI 1.3 1280×720p@50/60 | 1920×1080p@24/30/50/60
USB 1280×720p@60 | 1920×1080p@24/25/30/50/60
Video Bit Depth 8 bit/10 bit/12 bit
Video Formats HDMI 2.0 | HDCP 2.2
Color Space RGB 8bit | YUV 4:4:4 | YUV 4:2:2 | YUV 4:2:0
Video Latency <3 frames
Audio Audio Format LPCM/2ch/24bit/16bit/48kHZ
Color Space RGB 8bit
Record/Storage Record Formats MP4 (up to 16Mbps)
Disk Formats FAT32( ≤32 GB) | exFAT(64GB~2T)
Supported Standards HDMI 2.0
USB 3.0
H.265 ITU-T H.265/ ISO/IEC 23008 -2
Power Compatability USB Power Delivery (PD) 3.0
Supported Cables Certified USB PD Aware
Input Voltage PD 12V/1.5A
Maximum Power 20W
Environment Temperature 0℃~60℃
Humidity 10%~85%
Physical Net Weight 0.42kg
Packaged Weight 1.20kg
Net Dimension 180.6mm × 112.7mm × 53mm
Packaged Dimension 255mm × 145mm × 85mm
- mini-pro v3
- One for two audio cables
- Quick guide
- External Power supply
- USB-C cable
- International socket adapters
