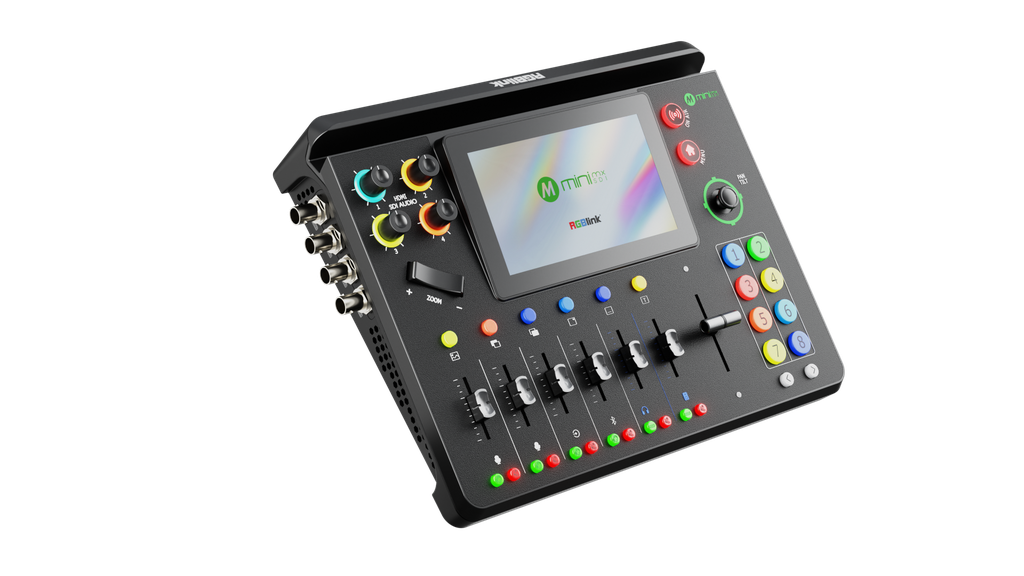

RGBlink Mini MX SDI Production Mixer

mini-mx SDI features four 4K HDMI 2.0 inputs and four 3G SDI inputs, one UVC and one NDI bi-direction input & output, supporting

digital embedded audio and video signals from PC, Camera and more.

Also analog audio by 2 x Phamton,1 x Line in and 1 x Mic, and a blue tooth audio.

There are two separately HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and

MJPEG capture formats, which can be recognized as a webcam for streaming to Facebook, YouTube, ZOOM, etc.

The UVC bi-direction for USB disk recording or wireless speaker or wireless microphone, such as RGBlink AI mini.

The ethernet port with NDI license enable is bi-direction too, NDI encoder and decoder can work at the same time.

mini-mx SDI is built in with 5-inch TFT touch panel for menu operation and multiviewer video display.

Compared with mini-mx, mini-mx SDI has 4 more 3G SDI inputs and a ready to license NDI bi-direction in & out, also Noise

Reduction, Equalizer, Echo, Reverb, Voice Fusion for audio inputs. Else it is the same to mini-mx, which features including dynamic

output control, multi-view preview, picture in picture, chroma Key, luma Key, transitions, on board PTZ camera controls and much

more.

mini-mx SDI is web APP ready, also integrated with TAO Cloud for remote control and restream to at least 4 content platforms at

the same time.
