RGBlink EcoSystem PTZ 10x & Stream

PTZ-Camera, 5,5“ Monitor, Switcher, Recorder, Streamer and NDI|HX-Encoder/Decoder in an All-In-One Solution!

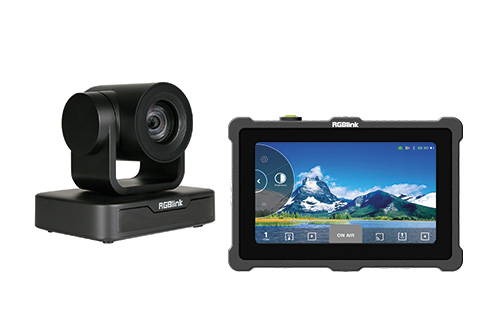

The RGBlink EcoSystem PTZ 10x & Stream is a highly mobile bundle with the RGBlink USB PTZ Camera 10x Optical Zoom and the TAO 1Pro monitor. The two devices are simply connected with the supplied USB cable, and power is supplied either via the TAO 1 Pro's mains cable or via NPF-compatible batteries on the TAO. The PTZ camera can be controlled via the supplied remote control or via the TAO's touchscreen. The numerous analysis functions on the 5.5" monitor allow accurate image control. Two additional HDMI sources and a UVC source can be connected to the TAO to switch between video signals. The TAO's programme stream can either be output via HDMI, recorded to an external USB storage device, streamed directly to video platforms or even distributed as an NDI|HX stream in the network.

In conjunction with a mobile 5G router with LAN connection, EcoSystem PTZ 10x & Stream enables mobile recording and streaming to YouTube, Facebook & Co without a PC and external power supply when using NPF batteries!

Description RGBlink USB PTZ Camera 10x Optical Zoom

The RBGlink USB PTZ Camera 10x offers excellent functionality and, with its 1/2.9 inch sensor, outstanding image performance in an extremely compact design. The quiet control motors allow the camera to be used in a variety of ways at live events, online meetings or in a school environment. The matt black finish has a very elegant look.

The video stream is output with a maximum resolution of 1920*1080 at 30 frames via the USB 2.0 interface. With the 10 x optical zoom, it is suitable for recording at greater distances without loss of quality. The supplied remote control allows stepless zooming, convenient control in all directions and saving and recalling of different viewing angles.

When connected to a USB 2.0 interface, the use of the supplied power supply is not necessary. The camera is automatically recognised as a video source via the UVC protocol and can be directly integrated into Microsoft Teams, Zoom, OSB-Studio or other applications.

The camera is compatible with all RGBlink PTZ mounts and overhead mounting is also possible. The 1/4" tripod thread on the bottom also allows mounting on a tripod.

Description RGBlink TAO 1Pro
The RGBLink TAO 1Pro is a universal talent - preview monitor, switcher, recorder, streamer and NDI|HX encoder/decoder combined in a very compact design. Intuitively controllable via touchscreen with German-language menu guidance - streaming from anywhere to everywhere at anytime!

Preview monitor:
With its 5.5" full HD display and 450 nit brightness, the TAO 1Pro has the most important functions for image evaluation. Brightness waveform, RGB waveform, vectorscope and histogram - In addition, all analyses run transparently over the live video and in 3 selectable sizes.

Switcher:

Two Full-HD HDMI inputs enable the input of camera or notebook signals. In addition, the two USB 3.0 inputs ensure the operation of webcam or UVC-compatible cameras. - Switching between the four video inputs is possible via touchscreen. In addition, the programme stream is played back live at the HDMI output. In addition, the TAO 1Pro can display six different stereo levels: Four for the video inputs, and one each for the 3.5mm microphone and jack outputs.

Recording:
With the TAO 1Pro it is possible to record the programme stream on external USB media with up to 2 TB capacity. The codec used is H.264 with a maximum resolution of 1920x1080 at 30 fps.

Streaming:
The TAO1 Pro offers a unique streaming experience. Stream simultaneously on up to 4 platforms of your choice - without a PC. All you need is a network cable and an Internet router or a mobile 5G router with a LAN socket. All parameters are already stored for the most important streaming platforms. The individual streaming keys can simply be transferred to the TAO 1Pro via USB stick, so that events can then also be planned in advance. In addition, individual RTMP streams can also be generated. Optionally, the screen and video stream can also be output in portrait format for optimal display on smartphones.

NDI|HX encoder/decoder:
The NDI encoder makes the programme stream available as a latency-free NDI signal in the network. Currently NDI 5.0 is supported, the output is an NDI|HX stream. In addition, the TAO 1Pro can decode NDI|HX streams from other NDI devices such as PTZ cameras, converters, etc. and output them to a large display via the HDMI output, for example. The TAO 1Pro is thus a complete HDMI to NDI|HX and NDI|HX to HDMI converter.

Other functions:
To create adapted streams for mobile devices as well, the display of the TAO1 Pro can optionally be shown in portrait format. Power is supplied via the included USB adapter cable, but can also be supplied via an NPF-compatible or Panasonic D54-compatible battery. A ventilation system with automatic speed control is built in, which can also be adjusted manually in four steps. Mounting on cameras is made possible by the included ¼" tripod screw.

Firmware updates:
RGBlink provides the latest firmware at the following link. Updates can be easily uploaded via USB stick!
https://www.rgblink.com/download.aspx
