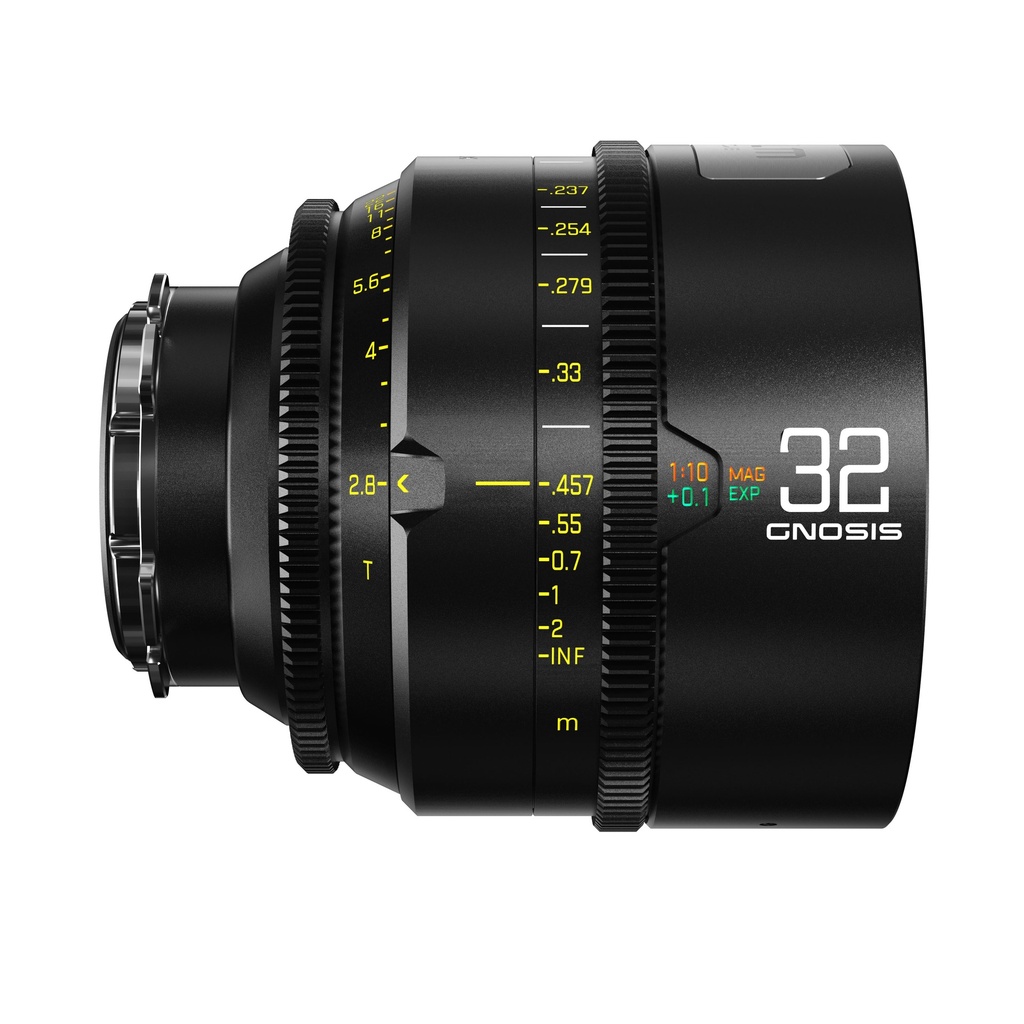

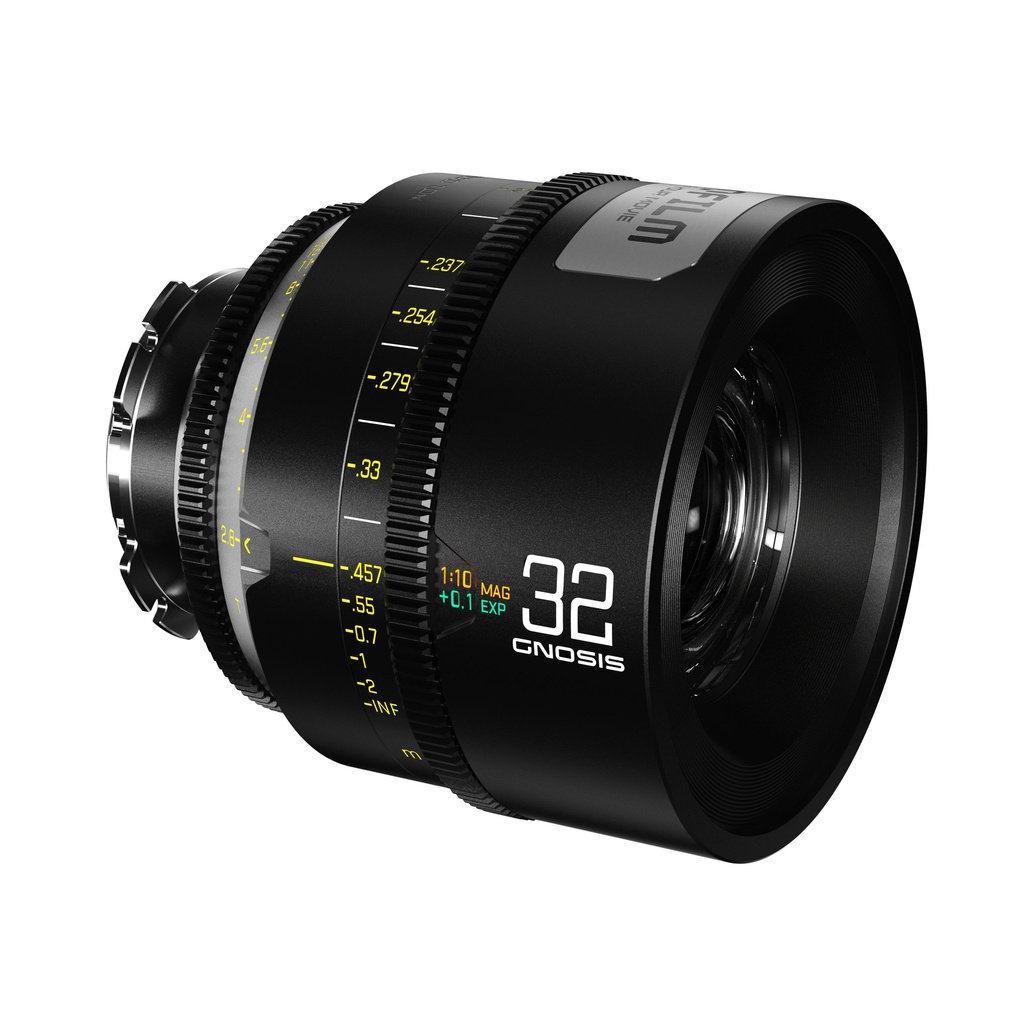

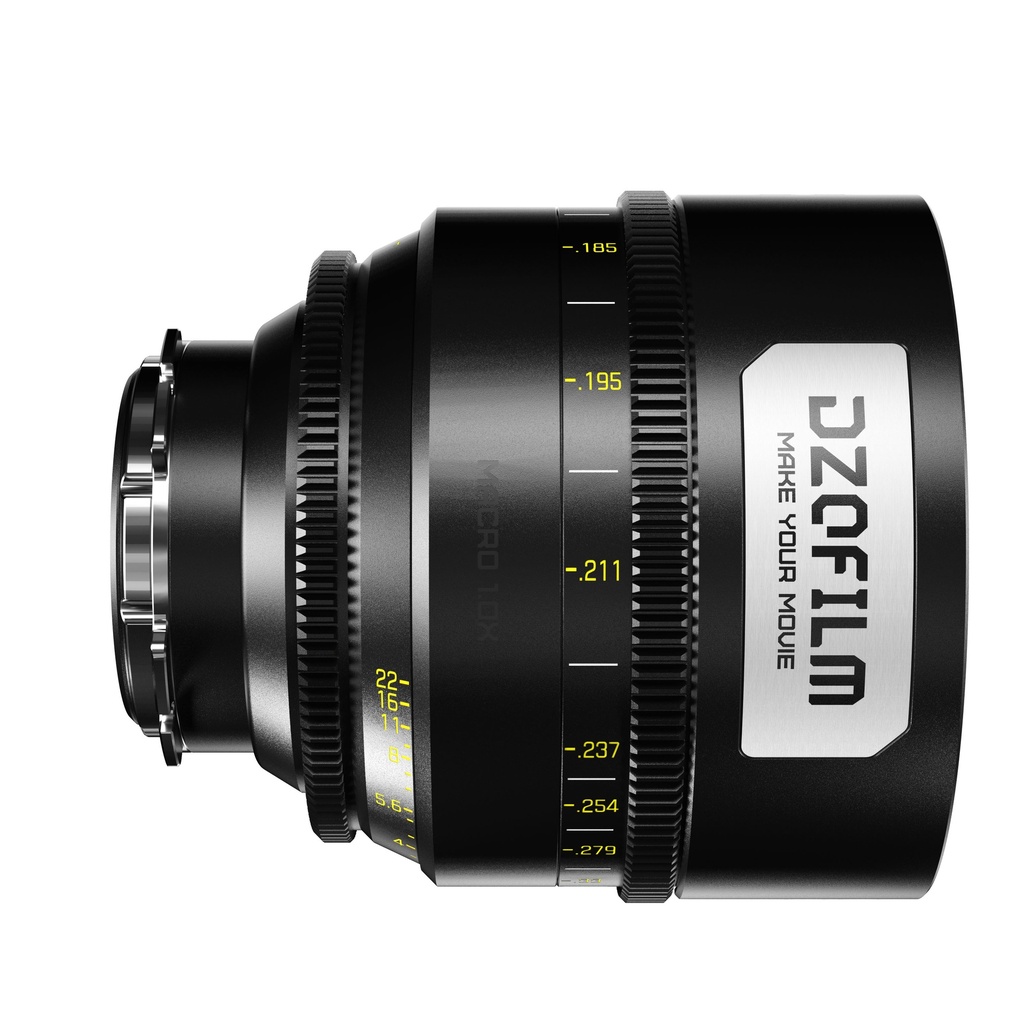

DZOFILM Gnosis Macro 32 T2.8 for PL/EF/LPL Mount (VV/FF) metric
Art.Nr. DZO-G3228LPLMHigh performance full frame cinema prime macro lens 32mm
Gnosis is DZOFILM’s high-performance full frame cinema prime macro lens. It allows you to reproduce the details and color in filming. Clear images, natural transition from in-focus to defocus and minimal breathing in focusing...all these can be found in Gnosis. They are suitable for different macro creation and can adapt to a wider range of subjects such as flowers and insects, bringing audience with pure and vivid image texture and natural transition of focus shifting. Precisely control and shift the focus with a 300 degree rotation to get a stable and comfortable performance. The industry standard front diameter of 114mm is compatible with matte boxes and other accessories, eliminating the need for repeated adjustments when changing lenses and greatly enhancing shooting
efficiency.
Focusing on Details Reframing Micro Vision
The 32/65/90mm lens allows you to get an incredible amount of detail and discover the astonishing image of the microcosm at the minimum focusing distance of 17-26cm with a 1:1/1.33:1/1.5:1 magnification ratio respectively.
Cinematic Imaging In Great Details
From the MFD to INF, Gnosis provides excellent image quality with extreme sharpness from the center of frame right out to the edges.
The color rendition is uniformly and naturally clean from in-focus to out-of-focus, presenting a stunning image rich in gradation.
For Professional Filmmaking And Tactful Collaboration
The industry standard front diameter of 114mm is compatible with matte boxes and other accessories, eliminating the need for repeated adjustments when changing lenses and greatly enhancing shooting efficiency.
Reliable, Precise Mechanics For Smooth Creation
Precisely control and shift the focus with a 300 degree rotation to get a stable and comfortable performance and perfect your work.
All-inclusive Meet multiple needs in filmmaking
LPL/ PL/ EF Mount
These lenses cover wide-angle, standard, and telephoto focal lengths, providing flexible shooting distance and field of view options to meet the demand of macro creation in common focal lengths and adapt to a wider range of subjects.
- PL / EF / LPL mounting option
- Housing: Aluminum alloy
- 32mm focal length
- manual focus/aperture adjustment
PARAMETER
name |
GNOSIS |
Colour |
BLACK |
Focal Length |
32MM |
Mount |
PL / EF / LPL |
T-STOP |
T2.8-T22 |
Image Circle |
∮ 46.5mm (VV/FF) |
Optical Construction |
11 Elements in 9 Groups |
Flange Distance |
52mm (PL) / 44mm (EF) / 44mm (LPL) |
Close Focus |
0.167m / 6.6in |
magnification Ratio |
1.0X |
Iris Control |
Manual (rotation angle 55°) |
Focus Control |
Manual (rotation angle 300°) |
Front Dia. |
∮ 114mm |
Length |
112mm |
Iris Blade |
16 |
Filter Size |
M105 |
Gear Pitch |
0.8 Mod |
Material |
Aluminium alloy |
Weight |
≈1460g |

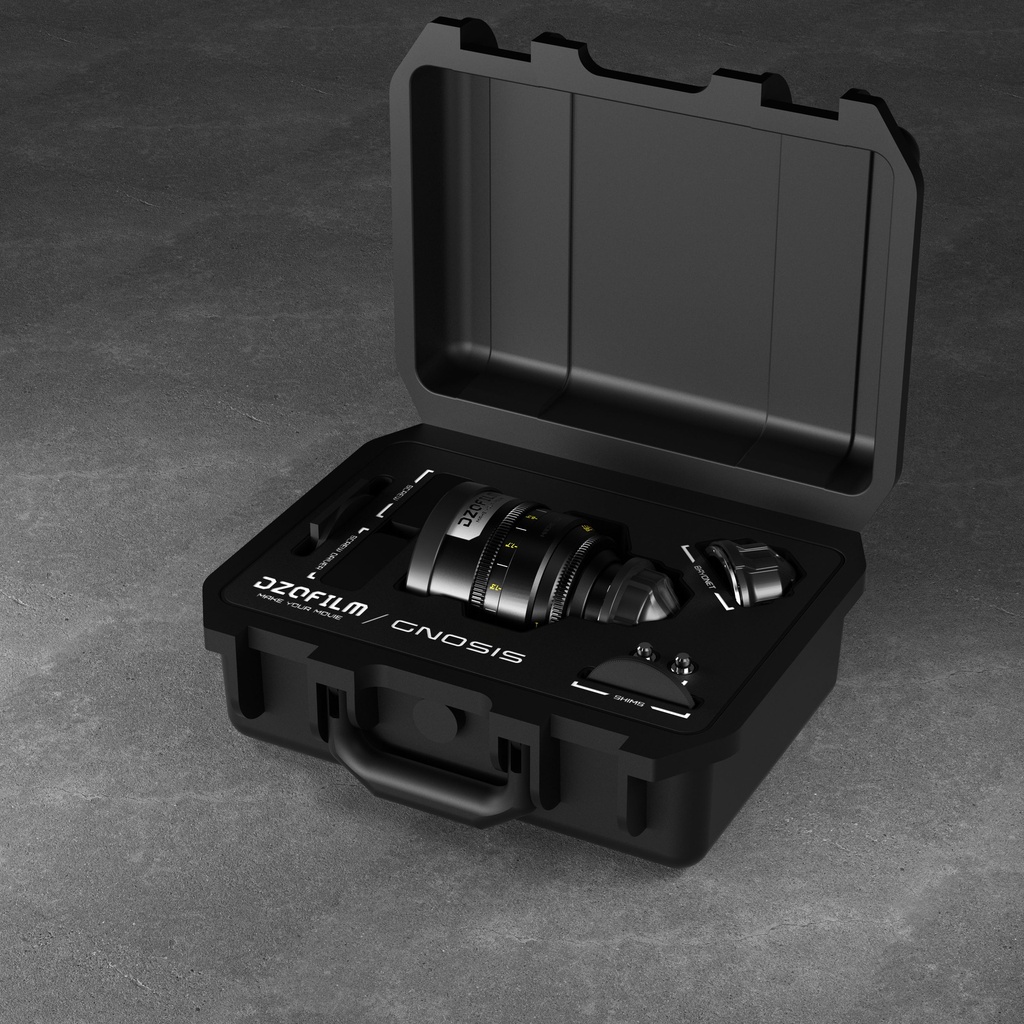

1x DZOFILM Gnosis 32 T2.8 Macro Prime Lens - metric
