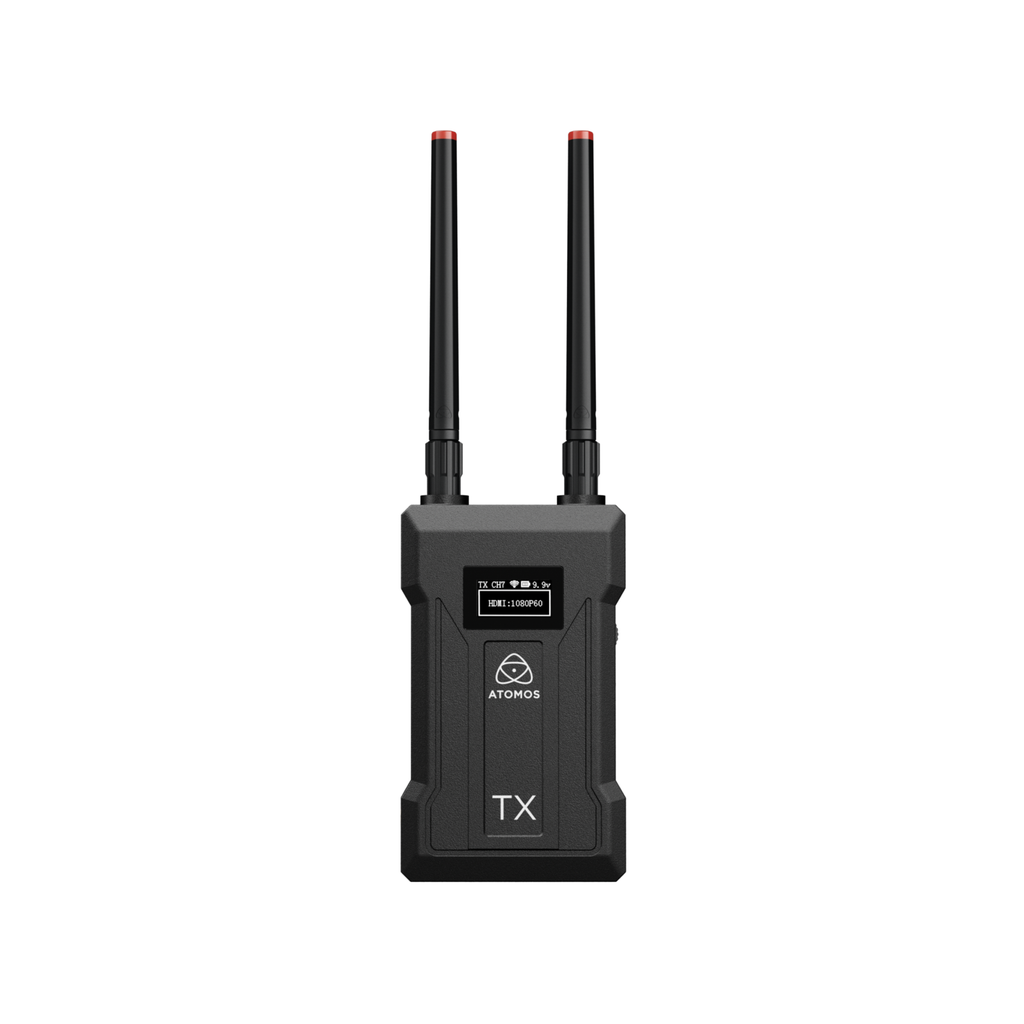

ATOMOS TX 4K/HD Wireless Video Monitoring (Transmitter only)
Art.Nr. ATOMTXSL01Atomos TX-RX delivers low-latency HD-SDI and 4K HDMI video transmission for wireless on-set monitoring over long distances. TX-RX gives crews the freedom to change camera angles, reposition gear, or go handheld without having to disconnect director or client monitors because everything stays wirelessly connected.
Wireless 4K/HD Video Monitoring Transmitter
TX-RX delivers low-latency HD-SDI and stunning 4K HDMI video over 5G Wi-Fi transmission for wireless on-set monitoring over long distances, ensuring seamless video monitoring from camera to monitor, monitor to monitor, and even to your tablet or phone! Compact and portable, with a range of up to 300 meters (985 feet) and latency as low as 0.06 seconds, TX-RX delivers a robust, real-time signal for professional video applications. The receiver features both SDI and HDMI outputs, allowing users to route video to multiple monitors at once. And with support for up to four receivers per transmitter, TX-RX adapts easily to multi-camera, multi-monitor workflows – ideal for everything from solo shoots to full-scale productions.
- Compact and portable
- Transmits up to 4Kp30 from HDMI input / 1080p60 from SDI input
- 5GHz Wi-Fi transmission, strong anti-interference
- Range of up to 300 meters (985 feet)
- Powered by NP-F battery, USB-C or DC input (9–16V)
- Transmit to iOS or Android phone
- Supports up to 4 receivers per transmitter
- Transmitter supports HDMI/SDI input and HDMI loop out
- Receiver supports dual HDMI output and SDI output
| PRODUCT INFORMATION | |
| Product Name | Atomos TX-RX 4K/HD Wireless Video Monitoring Transmitter & Receiver Set |
| Main Category | Wireless video transmission |
| Secondary Category | Monitor accessory |
| Part Code (TX-RX) - Transmitter & Receiver Set | ATOMTXRX01 |
| Part Code (TX) - Transmitter only | ATOMTXSL01 |
| Part Code (RX) - Receiver only | ATOMRXSL01 |
| UPC (TX-RX) - Transmitter & Receiver Set | 814164023276 |
| EAN (TX-RX) - Transmitter & Receiver Set | 0814164023276 |
| UPC (TX) - Transmitter only | 814164023283 |
| EAN (TX) - Transmitter only | 0814164023283 |
| UPC (RX) - Receiver only | 814164023290 |
| EAN (RX) - Receiver only | 0814164023290 |
| MSRP | |
| TX-RX | USD-US $599 / USD-ROW $499 / EUR €499 / GBP £415 / AUD $815 |
| TX | USD-US $449 / USD-ROW $349 / EUR €349 / GBP £290 / AUD $545 |
| RX | USD-US $349 / USD-ROW $299 / EUR €299 / GBP £249 / AUD $539 |
| Key Features | |
| 1 | Compact and portable |
| 2 | Transmits up to 4KP30 from HDMI input / 1080P60 from SDI input |
| 3 | 5GHz Wi-Fi - maintain faster speeds even in crowded environments |
| 4 | Low latency - as fast as 60ms (subject to video resolution and frame rate) |
| 5 | Range of up to 300 meters (985 feet) |
| 6 | Transmitter supports 1 x 3G-SDI input |
| 7 | Transmitter supports HDMI input and HDMI loop-through |
| 8 | Receiver supports 1 x 3G-SDI output |
| 9 | Receiver supports dual HDMI output |
| 10 | System supports up to 4 receivers per transmitter |
| 11 | OLED status display screen |
| 12 | Powered by NP-F battery, USB-C or DC input (9-16V) |
| Description | |
| Short | Atomos TX-RX is a powerful 4K/HD wireless video transmitter and receiver system designed to streamline video monitoring and production workflows - on set, on location or in the studio. |
| Long | Atomos TX-RX is a powerful 4K/HD wireless video transmitter and receiver system designed to streamline video monitoring and production workflows - on set, on location or in the studio. The TX-RX bundle comprises 1 transmitter (TX) unit and 1 receiver (RX) unit. The system supports up to 4 receivers per transmitter and both TX and RX units can be purchased separately. |
| Product Specifications | |
| Dimensions (W x H x D mm) | 42mm x 67mm x 120mm (TX & RX) |
| Weight | 231gms (TX & RX) |
| Mount points | 1 x 1/4-inch 20 screw mount on bottom of device |
| Environmental | |
| Ambient operating temperature | Up to 50 degrees Celsius |
| Construction & Control | |
| Body | Aluminium alloy |
| Rotary control | For channel selection |
| Power switch | On/off |
| Power | |
| Input voltage | 9-16V |
| Operating power | 4W (TX & RX) |
| Compatible batteries | NP-F970/750/550 battery (not included) |
| Built in battery | No |
| Display | |
| Resolution | 128 x 64 pixels |
| Size | 21.8mm x 10.8mm |
| Video Input/Output | |
| TX | 1 x 3G-SDI, 1 x HDMI input and 1 x HDMI loop-through |
| RX | 1 x 3G-SDI output and 2 x HDMI dual output |
| Wi-Fi | |
| Frequency | 5GHz |
| Channels | 9 (CH0-CH08) |
| Latency | 60ms |
| Transmission distance (line of sight) | Up to 300m (985ft) |
| Audio In/Out | |
| Audio Format | PCM dual channel |
| Resolution & Frame Rates Supported | |
| HDMI | 4K30, 4K25, 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50 |
| 3G-SDI | 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I 50, 720P60, 720P50 |
| What’s in the Box | |
| TX-RX | Wireless video transmitter, Wireless video receiver, 2 x USB A-C 2.0 cable (1m), 4 x Wi-Fi antenna, 10 x antenna tips, 2 x 1/4-inch screw mount, Quick Start Guide |
| TX | Wireless video transmitter, USB A-C 2.0 cable (1m), 2 x Wi-Fi antenna, 5 x antenna tips, 1/4-inch screw mount, Quick Start Guide |
| RX | Wireless video receiver, USB A-C 2.0 cable (1m), 2 x Wi-Fi antenna, 5 x antenna tips, 1/4-inch screw mount, Quick Start Guide |
| Box dimensions (TX-RX) (W x H x D mm) | 210mm x 80mm x 165mm |
| Box dimensions (TX) (W x H x D mm) | 190mm x 80mm x 135mm |
| Box dimensions (RX) (W x H x D mm) | 190mm x 80mm x 135mm |
| Warranty | |
| Standard | 1 year. Extended to 2 years on product registration. |
1x Atomos TX
