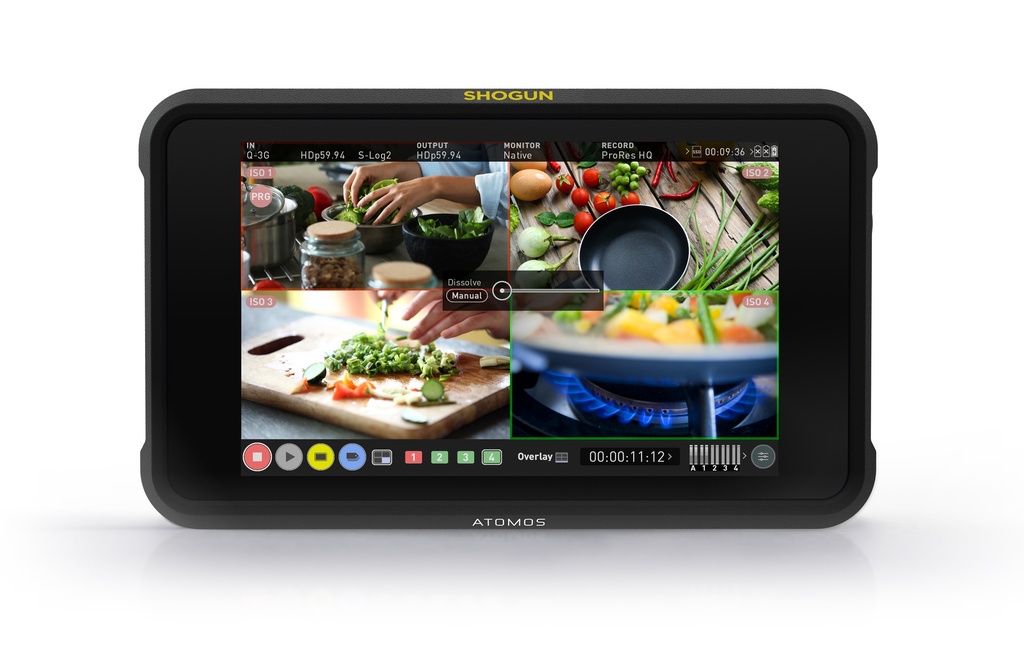

ATOMOS Shogun Classic
Art.Nr. ATOMSHG701Shogun Classic - 7'' 4Kp60 HDR Monitor, Rekorder und Switcher
7-inch HDR pro / cinema monitor-recorder-switcher
Designed for professionals that push boundaries with the quality of their videos, this 7-inch monitor-recorder-switcher enhances the image captured by any HDMI or SDI camera to new levels. With 1,000,000:1 contrast ratio and peak brightness of 3000nits, Shogun Classic is the ultimate all-rounder production tool.
Shogun Classic gives you the high production values of 4K HDR, and complete control of every aspect of your production, on-set and in post. Meticulously monitor every pixel of SDR or HDR as it’s captured and view it in glorious 10-bit HDR.
Perfect exposure and color
Fine tune every detail, while you shoot
A high-quality viewing experience gives you complete confidence to make educated on-set decisions.
With Shogun Classic’s dynamic zoned backlight, blacks are deeper, whites are brighter, and the details of highlights are crystal clear. Shogun Classic gives you the control to maximise HDR exposure, while feeling comfortable with SDR finishing in post.
Simple monitoring tools put every detail of the image within your control. From custom 3D LUTs, false color profiles, adjustable focus peaking and movable 1:1 and 2:1 pixel magnification. In addition, RGB parade and vectorscopes ensure perfect colors on your calibrated monitor.
Multi-camera touchscreen switching
Take full advantage of 4 x SDI inputs and let Shogun Classic step into the role of a portable, quadview live switcher and recorder on your multi-camera shoots. Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real-time with a simple touch of the screen.
Shogun Classic can also record a fifth ‘program’ channel of your switched feed. Display the resulting mixed output (via HDMI or SDI) live on set. You can even output the switched feed for live streaming. Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras.
At home on practically any camera
Use with your DSLR or mirrorless camera via HDMI to get up to 4Kp60 Apple ProRes and AVID DNx codecs for easy editing and archival quality. Add it to a high-end ARRI, RED or Sony Venice and you’ll get accurate HDR monitoring and all the tools you need to get your job done.
HDR monitoring for clients and creatives
With Shogun Classic you can view what you’ve captured before filming has even wrapped. Deliver content via live HDMI out, in real-time, from any HDR camera to a compatible HDR TV or monitor. Shogun Classic ensures you see an accurate representation of your video at maximum brightness and color detail. Use this accurate reference to adjust exposure and lighting accurately for modern TVs. This not only gives the crew more confidence in what they’re capturing, but also speeds up the finishing process.
Intuitive touch screen operation
Instant playback & review
Shot tagging
Balanced audio
High speed connections
Quad SDI & HDMI 2.0 In/Out
7.2“ Screen Size
Contrast Ratio 1.000.000:1
High Bright 3000nits
Resolution 1920x1280
105% DCI:P3 Color Gamut
D65 White Point
360 Zones Backlight Control
10 bit Precision
Focus Peaking/Outline
Exposure LOG/Zebra/False/Blue screen
3D LUTs .cube support
Zoom 2:1/1:1 PAN
Calibration Auto Calibration with X-rite
Scopes WFM/RGB/Vector
12 Gb/s HDMI/SDI
500MB/s Record Write Sata III SSD
120mins Record on 2TB SSD
2TB Playback Read Sata III SSD
Weight
|
Without batteries & media |
709g / 25oz. |
|
Dimensions (W x H x D mm) |
214 x 127 45mm |
|
Construction |
Polycarbonate ABS |
|
Mounting points |
1/4”-20 screw mount. 1x top and 1x bottom |
Power
|
Operating power |
10 - 33W |
|
Compatible batteries |
Atomos NP-F series and supporting accessories |
|
Input voltage (battery) |
6.2V to 16.8V |
|
Battery time (based on 2 x 7.4V) |
5200mAh - up to 1.5hrs (monitor & record 4K 30p) |
|
|
7800mAh - up to 2.2hrs (monitor & record 4K 30p) |
|
DC In |
1 x DC in (6.2 - 16.8V) |
Touchscreen
|
Size |
7.2” |
|
Resolution |
1920 x 1280 |
|
PPI |
325 |
|
Aspect ratio |
16:9 native |
|
Color Gamut |
Up to Wide color gamut (105% DCI-P3) |
|
Look up table (LUT) support |
3D LUT (.cube format) |
|
Anamorphic de-squeeze |
2x, 1.5x, 1.33x |
|
Technology |
Dynamic AtomHDR zoned backlight
|
Dynamic Atom HDR Technology
|
Backlight |
Direct LED |
|
Zones |
360 direct backlight individual LEDs |
|
LEDs |
Wide Color Calibrated D65 or D95 |
|
Bit depth |
10-bit (8+2 FRC) |
|
Color |
DCI-P3 105% |
|
Brightness |
3000nits (+/- 10%) |
|
Control |
On the fly real-time brightness analysis for LED control |
|
HDR Conversion |
Log/RAW to HLG or PQ |
HDR Monitoring Technology
|
Gamma |
Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 Panasonic Vlog JVC JLog1 RED Log3G10 / RED LogFilm FujiFilm F-log Nikon N-Log PQ10k HLG |
|
Gamut |
Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Nikon Bt2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 / |
Video Output (Play Out)
|
HDMI |
1 x HDMI (2.0) |
|
SDI |
2x 4K-SDI 12G or HD-SDI 3G/6G |
|
Signal |
Uncompressed true 10-bit or 8-bit 422
|
Audio In/Out (48kHz PCM Audio)
|
HDMI |
2 or 8ch 24-bit, camera dependent |
|
SDI |
12ch 48kHz 24-bit |
|
Audio |
2ch balanced XLR analogue in/out
|
|
Headphone out |
3.5mm 2ch. |
Supported Codecs & Frame Rates (Record & Playback)
|
Raw to: |
ProRes RAW
|
|
Sony^^
|
4K DCI; 24/25/30/50/60p
|
|
Canon
|
4K DCI; 24/25/30p
|
|
Panasonic
|
5.7K DCI; 24/25/30p (EVA1 ProRes RAW only)
|
|
Supported base resolution & FPS from cameras |
4K DCI: 23.98/29.9/59.94p
|
|
Supported FPS & resolution from gaming consoles and graphic cards |
1080p; 24/25/30/50/60/100/120 |
Onboard Processing
|
Pulldown removal |
|
|
24/25/30pSF > 24/25/30p (2:2 pulldown)
|
|
4K UHD downscale for HD monitoring |
|
|
Yes - Loop-out and playback (Not available in RAW) |
Remote Start/Stop
|
HDMI |
Auto HDMI Trigger
|
|
SDI |
SDI trigger camera selectable |
|
Other |
LANC control - Slave |
Playback
|
Playlist / Genlock / LTC |
Yes / Yes / Yes |
|
CDNG (Recorded content) |
No support |
|
ProRes (Recorded content) |
All recorded files can playback. Playback in slow motion >= 100fps. |
|
DNxHR / DNxHD (recorded content) |
All recorded files can playback. Playback in slow motion >= 100fps. |
Recording
Pre-roll record
Yes (HD 8s, 4K 2s)
Custom timelapse
Yes*
Supported media
2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
Master caddy case
Master Caddy II (included)
75mm x 105mm x 12mm
Master caddy dock
2.5” SATA to USB 2.0/3.0
Supported applications
Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke
Monitoring Features
Luma Waveform, RGB parade, RGB Overlay, Vectorscope, Vectorscope Zoom, Histogram, RGB Histogram, Anlaysis mode (Multiview scopes: Waveform, Histogram, Vectorscope), Focus Peaking, Zebra, False Color, Blue Only Exposure, Zoom (1:1, 2:1, 4:1), SMPTE Safe Areas, Cinema Guides, Anamorphic Desqueeze.
1x Shogun 7 unit
1x Master Caddy II x1
1x 12V-3A AC power supply
1x Carry Case Quick Start guide
