OSPREY 100e
Art.Nr. VS-OS-95-00476Osprey 100e Video Capture Card with PCIe analog capture for video.

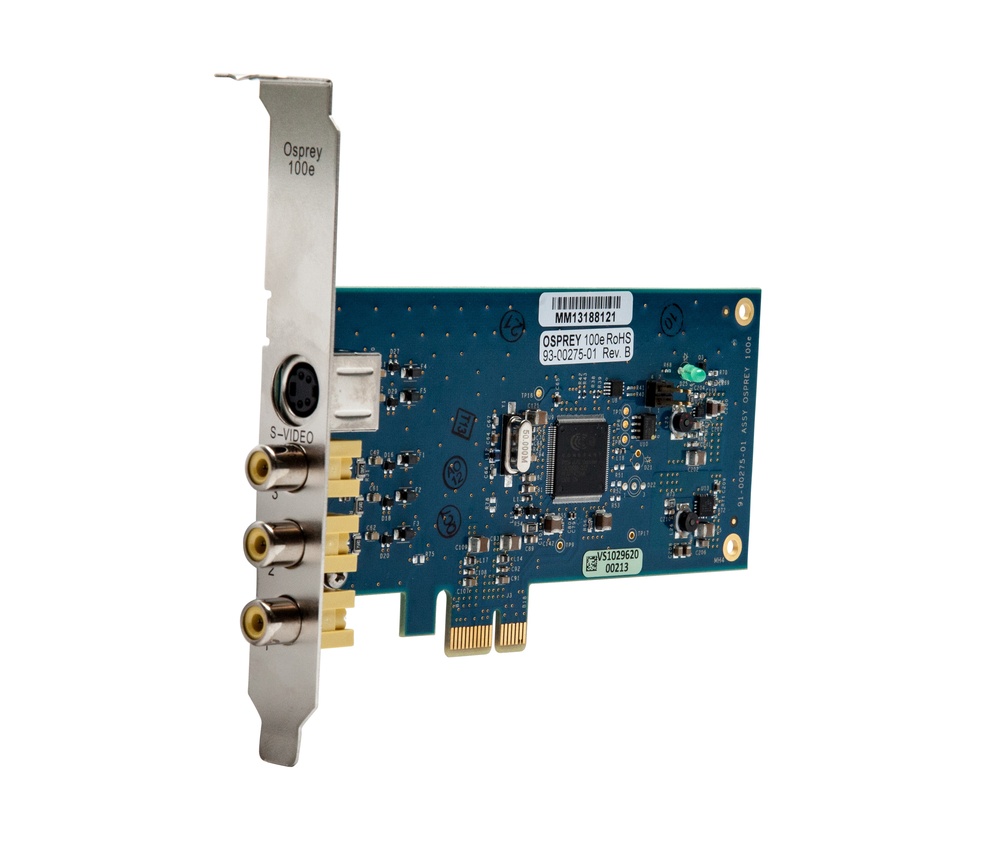

Based on the original Osprey 100 capture card, the Osprey 100e is a PCIe analog video capture card that offers high-quality video at a reasonable cost. This low-profile, single-channel card has four switchable inputs (three composite and one S-Video) and is compatibel with Microsoft DirectShow applications. This card is a great solution where audio is not required. The PCIe bus makes it compatible with most modern PC´s.
Multiple Card Support
Deploy two or more cards in a single PC chassis for maximum versatility.
Driver Support
Microsoft® DirectShow® drivers are available for compatibility with most software
Windows SDK lets you create custom applications
Driver Based Pre-Processing
Closed-Caption extracting and rendering
Logo/Bitmap overlay
Scaling, cropping, De-interlacing and inverse telecine
Applications
Medical
Surveillance/security
Live streaming
Scientific
ATM Machines
Format
PCIe x1
Slots: x1, x4, x8, x16
PCIe 1.1
Video Input
Composite (3x RCA)
S-Video ( 1x mini-DIN)
Video Connector
Composite (3x RCA)
S-Video (1x mini-DIN)
Video Modes
NTSC/PAL
720 x 480 29.97, 30/i (NTSC)
720 x 576 25/i (PAL)
Dimensions
12,70 x 6,88cm
Low Profile/half length
Weight
Ca. 0,042kg
Power Consumption
2,62W
Temperature
Operating: 0°C-40°C
Non Operationg -40°C – 75°C
Rel Humidity
Operating: Between 5% and 80% (non condensing)
Non Operating: 95% RH (non condensing); gradient 30% per hour
Warranty
1 Year limited hardware warranty
Compliance
CEE, FCC, ROHS, WEEE

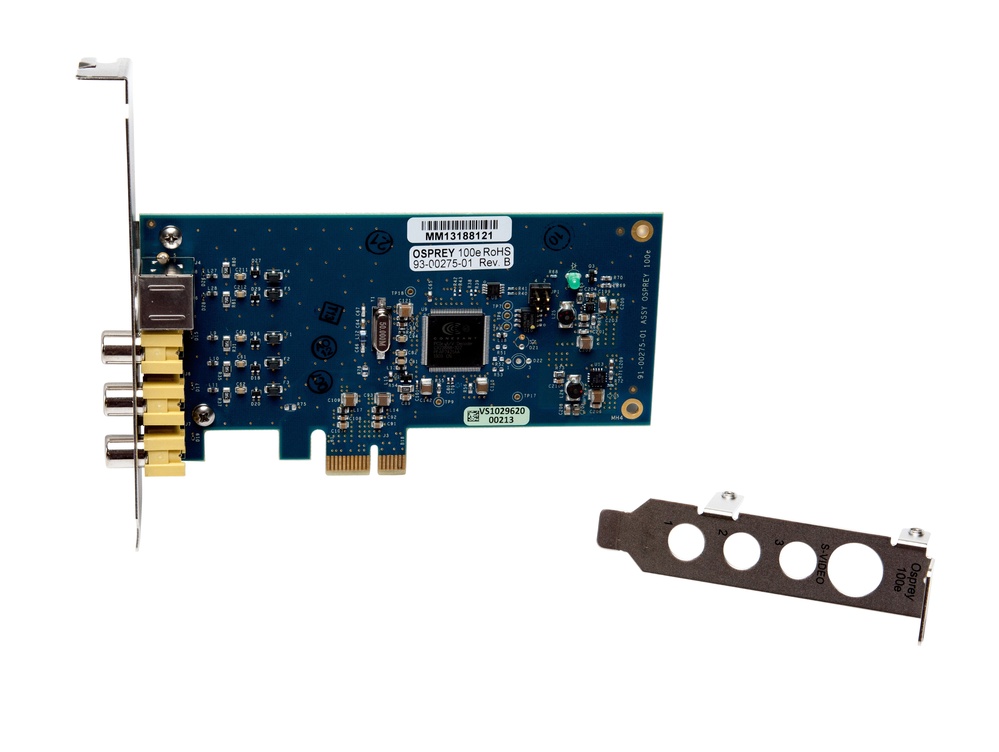

1x 100e Video Capture Card
1x Low Profile Bracket
