OSPREY 210

Single Channel with switchable Inputs

• 1 composite RCA

• 1 s-video (mini-DIN)

Mission Critical Video Capture

• Security such as ATM machines

• Medical and scientific equipment

• Surveillance equipment

Multiple Card Support

• Deploy two or more cards in a single PC for maximum versatility.

Driver Based Pre-Processing

• Closed-caption extracting/rendering

• Logo/bitmap overlay

• Scaling, cropping, de-interlacing and inverse telecine

Driver Support

• Microsoft® DirectShow® drivers are available for compatibility with most software.

• Linux

• Windows SDK lets you create custom applications

Format:

• PCI 32-bit/5 Volt

Video Input:

• Composite

• S-Video

Video Connector:

• 1x Composite (BNC)

• 1x S-Video (mini-DIN)

Video Modes:

• NTSC/PAL

• 720x480 29.97, 30/i (NTSC)

• 852x 480, 29.97, 30/i (NTSC Wide Screen)

• 720x 576 25/i (PAL)

• Wide Screen Signaling (WSS)

Audio Input:

• Unbalanced Stereo

Audio Output:

• Unbalanced stereo line (3,5mm)

Audio Connector:

• Unbalanced Stereo (RCA x2)

• Unbalanced (3,5 mini phono) stereo

Dimensions:

• 12,90cm x 10,67cm

Weight:

• Ca. 0,071kg

Power Consumption

• 2,45W

Temperature:

• Operating: 0°C- 40°c

• Non-Operating: -40° to 75°C

Rel Humidity:

• Operating: between 5%-80% (non condensing)

• Non-Operating: 95% RH (non condensing); gradient 30% per hour

Warranty:

• 1 year limited hardware warranty

Compliance:

• CE, FCC, ROHS, WEEE

• 1x Low-Profile Bracket

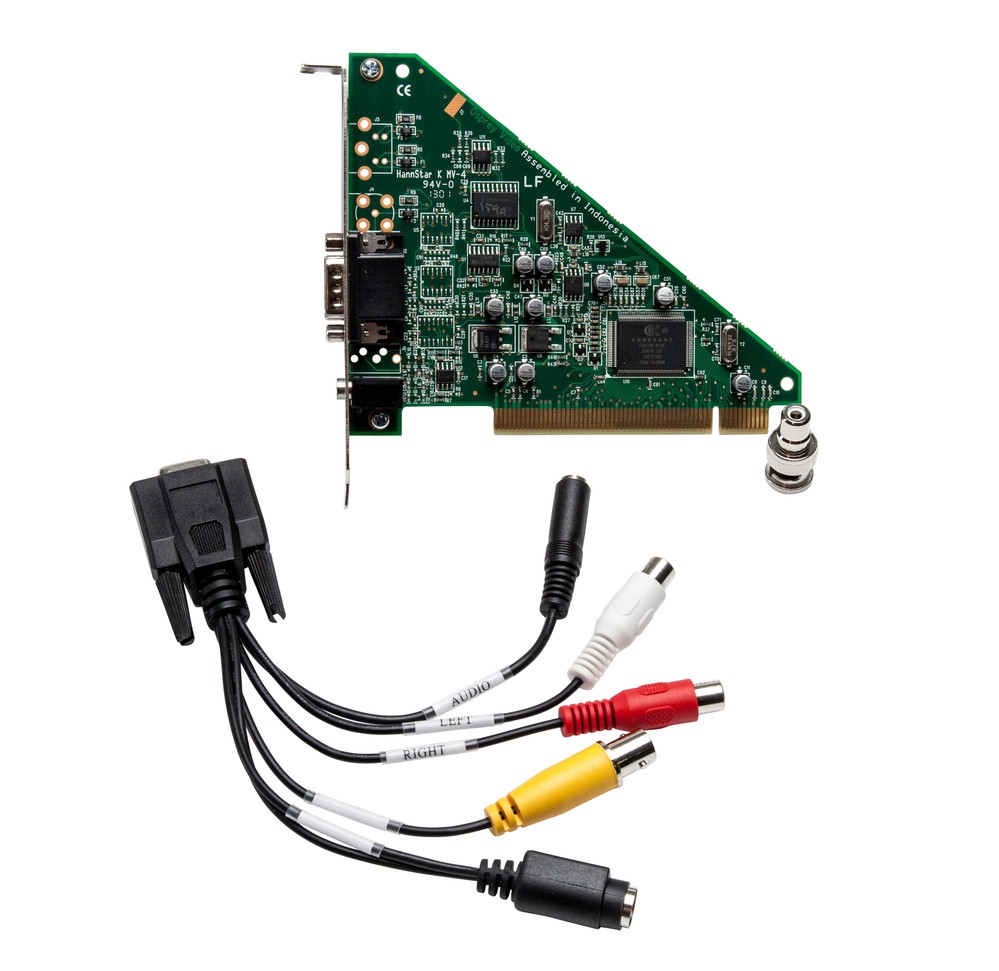

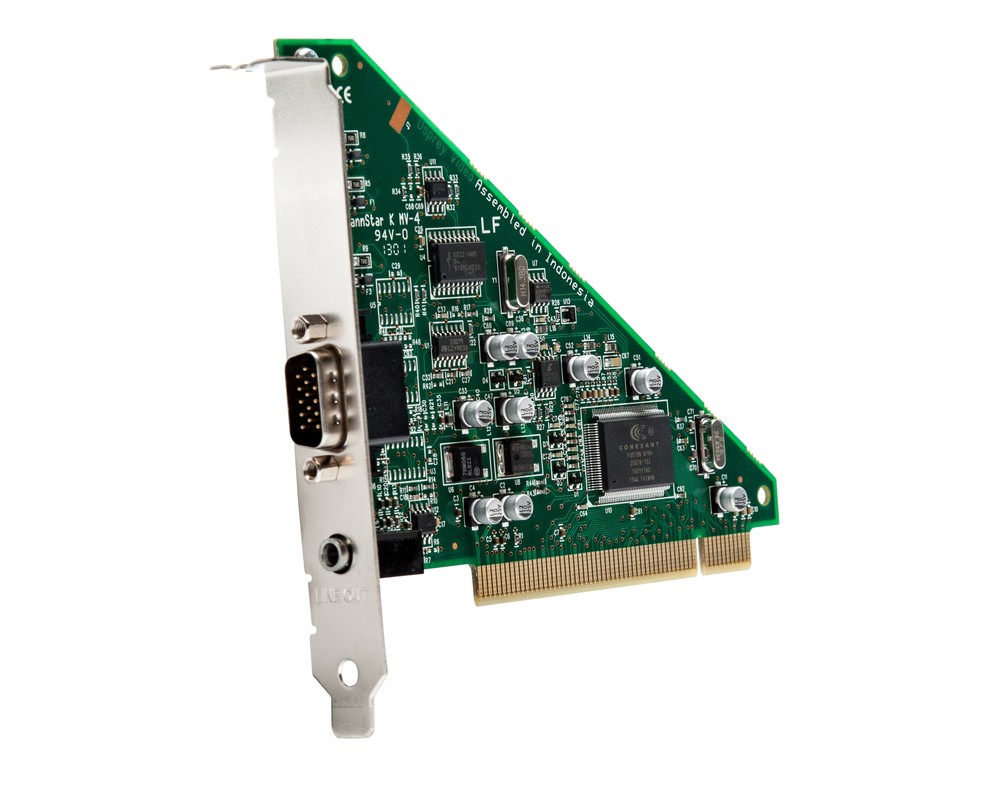

• 1x Osprey 210 Video Capture Card


• Breakout Cable
