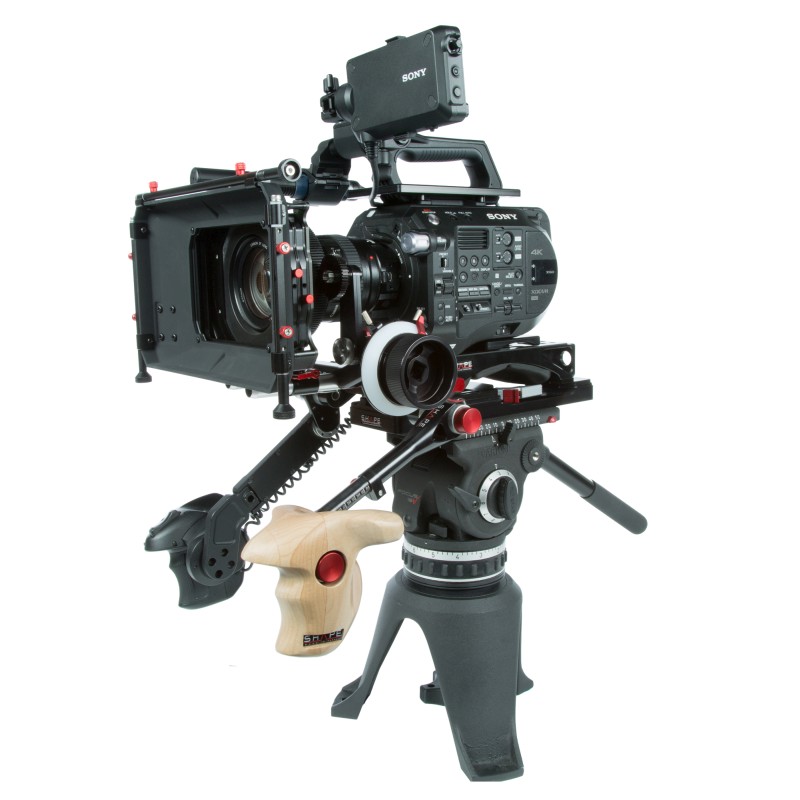

SHAPE Sony FS7M2 Baseplate, Top Plate und Follow Focus Pro

Sony FS7M2 V-Lock Quick Release Baseplate

The SHAPE  V-Lock Quick Release Baseplate is a long format baseplate and it can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4″-20 and 3/8″-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.

The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. A pair of 8″ 15 mm rods are included for the front. For attaching a matte box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one.

The baseplate features three camera mount slots, all supporting 1/4″-20 and 3/8″-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. 1/4″-20 and 3/8″-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4″-20 and two 3/8″-16 camera mount screws are included.

Sony FS7 Rear Insert Plate

The Sony FS7 Rear Insert Plate from SHAPE is an aluminum rear support plate designed for use with the Sony FS7M2 or FS7 cameras. The plate mounts to the camera body via three included screws and provides necessary support when the camera is used with the SHAPE V-lock quick release baseplate.

Single telescopic Handle Arri Rosette left Side

Left telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. The arm features four points of articulation (2 Push-button and 2 ratchet knobs) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

Sony FS7, FS7M2 Top Plate

The Top Plate is specially designed for the Sony FS7 and FS7M2 cameras. It is thin and lightweight, but sturdy and durable, made of CNC aluminum. It is also designed with multiple 1/4-20 & 3/8-16 threaded holes, giving you the possibility to attach many accessories. The installation is very simple,  you simply have to remove the screw holding the handle on the camera, and insert the top plate from the front side of the handle. The Top Plate can be strongly secured with (4) 1/4-20 screws included with the package.

Follow Focus Pro

Manufactured in sleek black aluminum anodized, this special edition professional follow focus unit combines a sleek look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down.

SHAPE engineering is internationally renowned and there is one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is.

The unit snaps onto 15 mm rods, allowing for quick attachment, removal, and repositioning. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth – depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.
While the Follow Focus Pro contains the essentials for pulling focus on any type of project production, the choice of either 15 mm rod adaptors means that you can SHAPE the system to meet your particular requirements.
