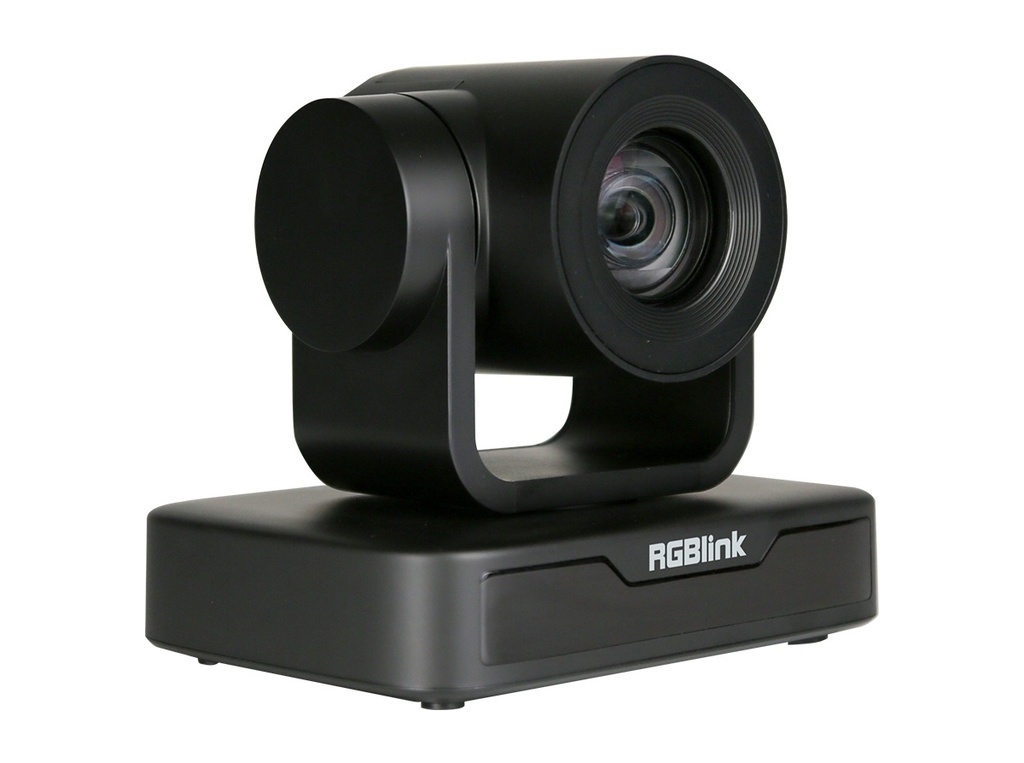

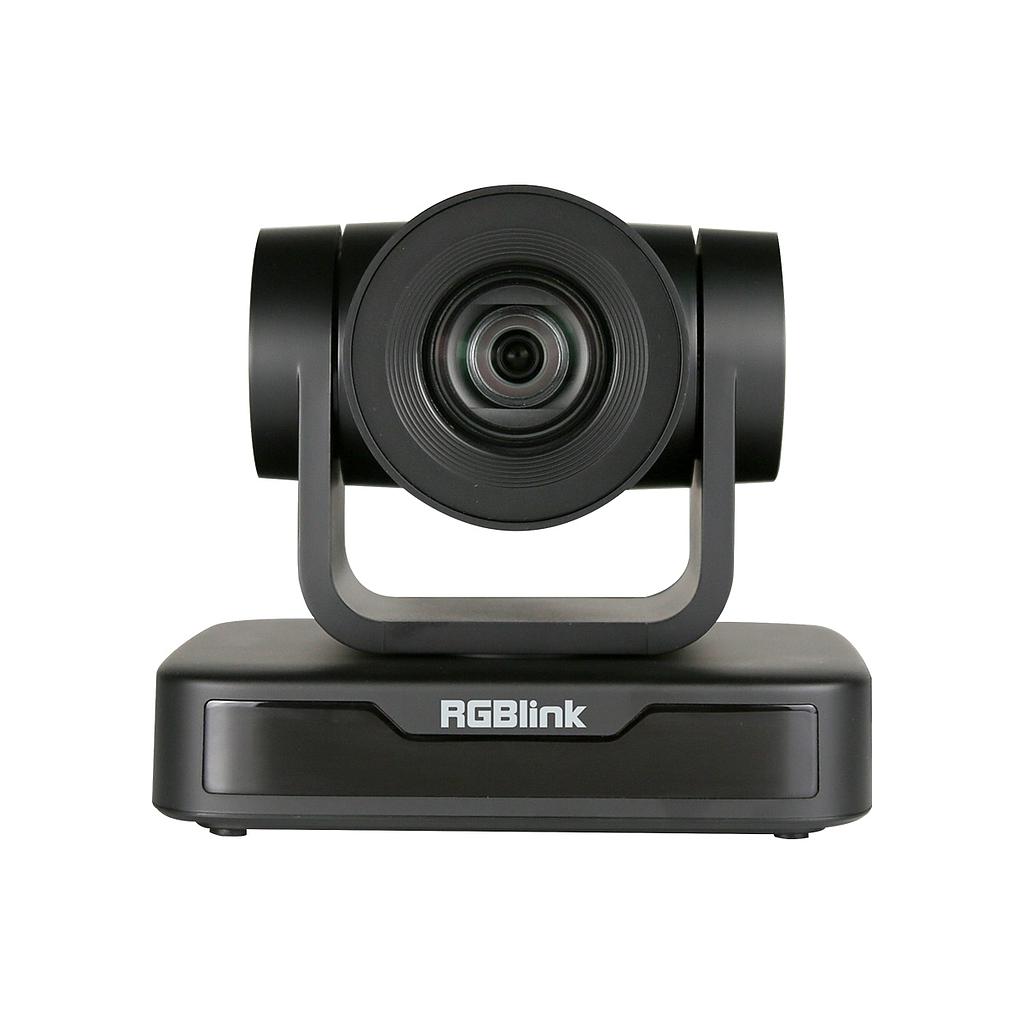

RGBlink USB PTZ Camera 10x Optical Zoom
Art.Nr. RGB10X-USB-BK10x PTZ-Camera with USB 2.0 port in matte black
The RBGlink USB PTZ Camera 10x offers excellent functionality and, with its 1/2.9 inch sensor, superior image performance in an extremely compact design. The quiet control motors allow the camera to be used in a variety of ways at live events, online meetings or in a school environment. The matt black finish has a very elegant look.
The video stream is output with a maximum resolution of 1920*1080 at 30 frames via the USB 2.0 interface. With the 10 x optical zoom, it is suitable for recording at greater distances without loss of quality. The supplied remote control allows stepless zooming, convenient control in all directions and saving and recalling of different viewing angles.
When connected to a USB 2.0 interface, the use of the supplied power supply is not necessary. The camera is automatically recognised as a video source via the UVC protocol and can be directly integrated into Microsoft Teams, Zoom, OBS-Studio or other applications.
The camera is compatible with all RGBlink PTZ mounts and overhead mounting is also possible. The 1/4" tripod thread on the bottom allows mounting on a tripod.
70° wide-angle lens
Low noise and high SNR
Pan and Tilt control
Low-power sleep function
Auto-focus technology
Up to 255 presets
Wide application

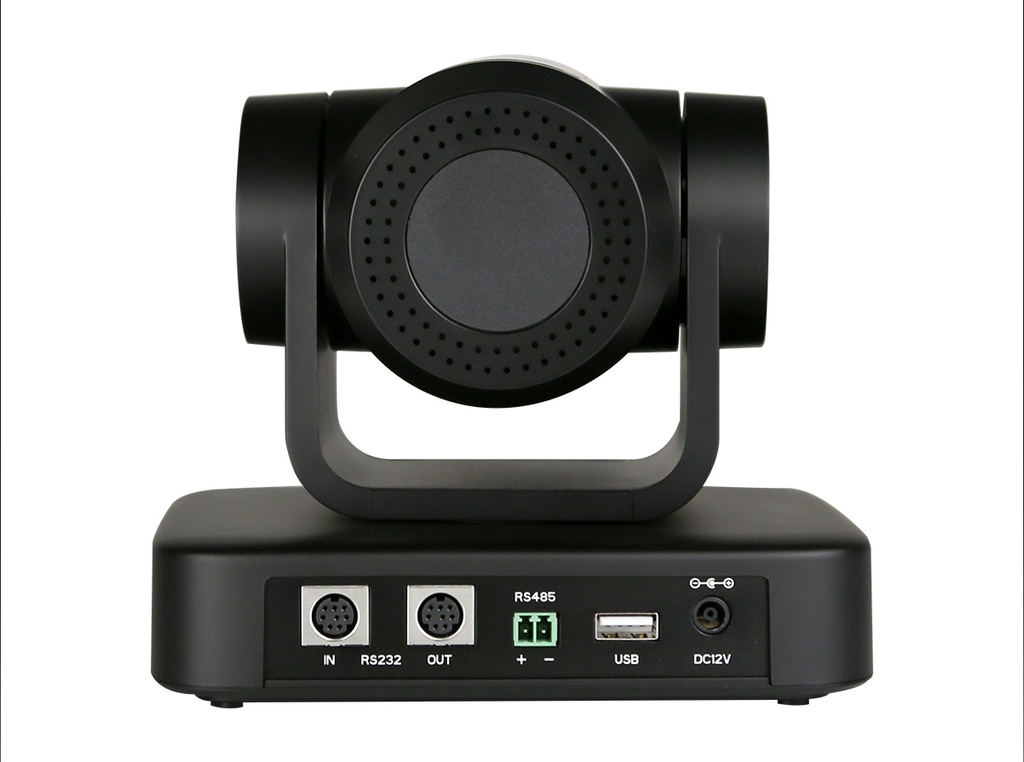

Connectors
Video: USB 2.0 (1xUSB-A)
Communication: RS232 (2xDIN 8), RS485 (1x2 Pin Terminal Connector)
Power: 1xHEC3800 DC Socket
Camera:
Optical Zoom: 10x f=4,34~41.66mm
View Angle: 8.8° ~ 70°
AV: F1.85 ~ F2.43
Digital Zoom: 10x
Minimum Illumination: 0.5 lux (F1.8, AGC ON)
DNR: 2D & 3D DNR
White Balance: Auto/Manual/One Push/3000K - 7000K
Focus: Auto/Manual/OnePush
Exposure: Auto/Manual
BLC: On/Off
Video Adjustment: Brighness/Color/Saturation/Contrast/Sharpness/B|W mode/ Gamma curve
SNR: >55db
Effective Pixels: 2.07m, 16:9
Pan- and Tilt-Parameter:
Movement: -170° ~ +170° / '-30° ~ +90°
Control Speed: 0.1 ~ 60°/s, 0.1 ~ 30°/s
Preset Speed/Quantity: Pan: 60°/s, Tilt: 30°/s, Up to 255 preset positions (10 remote control)
Video Compression: Format MJPG | H.264 | H.265
Output Resolutions: 720p@25/30 | 1080p@25/30
Control Protocol: VISCA | Pelco-D | Pelco-P
Operating System: Windows 7 | Windows8 | Windows10 | Mac osx | Linux
USB Communication: Protocol UVC
Power:
Input Voltage: DC12V/0.25A
Max Power: 2.5W
Environment:
Temperature: -10℃～50℃
Humidity: 20%～80%
Physical:
Weight: 1kg
Dimension: 156.8mm×112.6mm×139.5mm
Powersupply 230V to 12V w Cable 2.5m

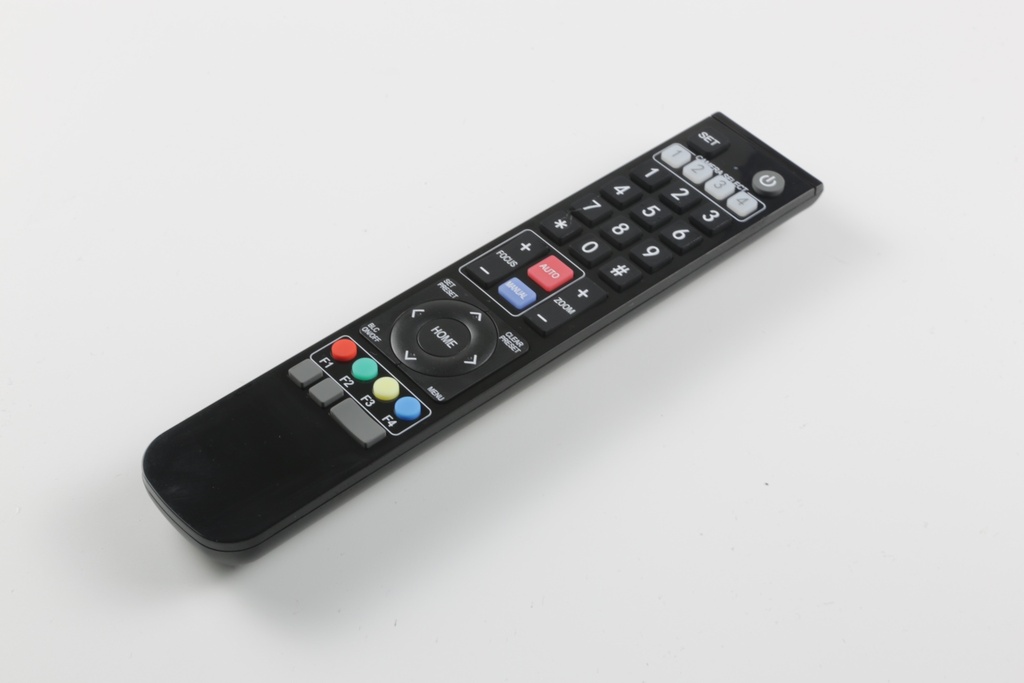

IR Remotecontrol (2 x AAA Batteries not included)
USB 2.0 Cable 2m
RS-232 Cable 2m
RS-485 Plug
Manual (english)
