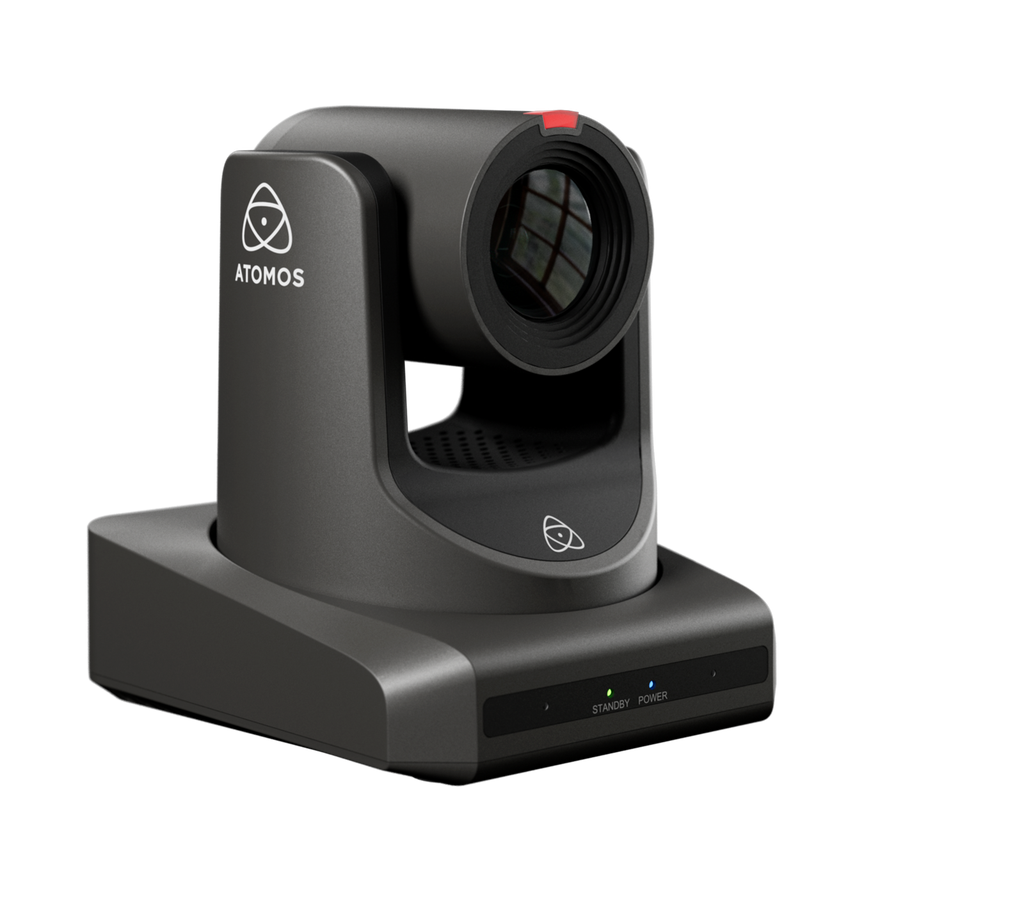

ATOMOS A-Eye HD-20X - PTZ Camera
Art.Nr. ATOMAEHD20A-Eye is a powerful range of AI-enhanced PTZ cameras that combine intelligent tracking, high-quality video, and seamless connectivity. Designed for educators, content creators, business professionals, houses of worship, and live event teams, the A-Eye series makes multi-camera production simple, scalable, and professional, with no camera operator required.
A-Eye is a powerful new range of AI-enhanced PTZ cameras that combine intelligent tracking, high-quality video, and seamless connectivity. Designed for educators, content creators, business professionals, houses of worship, and live event teams, the A-Eye series makes multi-camera production simple, scalable, and professional – no camera operator required. With real-time AI-powered tracking and advanced PTZ motion (±170° pan and -30° to +90° tilt range), A-Eye cameras follow your subject with fluid, precise movement – perfectly framing every step, whether you’re streaming a live concert, teaching a class, or presenting to a global audience.
The A-Eye range currently includes three cameras and a controller:
A-Eye 4K-20X – The flagship 4K model with a 1/1.8-inch UHD CMOS sensor and 20x optical zoom, built for large venues, stage productions, and professional multi-camera productions.
A-Eye 4K-12X – Compact and versatile with a 1/2.5-inch UHD CMOS sensor and 12x optical zoom, ideal for creators, classrooms, and corporate presentations.
A-Eye HD-20X – A high-definition model using a 1/2.8-inch CMOS sensor with 2.07M effective pixels and 20x optical zoom—perfect for education, houses of worship, and budget-friendly production setups.
A-Eye Control – The dedicated remote-control hub that enables advanced multi-camera operation, preset switching, and remote production over IP.
- 1/1.8-inch high-quality UHD CMOS sensor
- Maximum of 8.42 million pixels up to UHD 4K60
- Includes NDI|HX3 license
- 20x optical zoom, 16X digital zoom
- HDMI, 3G-SDI, USB 2.0 & IP output
- 3.5mm stereo audio in/out, RS-232 in/out
- USB port for Recording with HHD
- UVC/RS-485 & IP VISCA control
- Supports H.265/H.264/MJPEG compression
- DC & PoE+ support, tally lights
- AI tracking
- For large venues, stage productions, and professional multi-camera productions
| PRODUCT INFORMATION | |
| Product Name | A-EYE HD-20X |
| Main Category | PTZ camera |
| Secondary Category | Video camera |
| Part Code | ATOMAEHD20 |
| UPC | 814164023238 |
| EAN | 0814164023238 |
| MSRP | |
| A-EYE HD-20X | USD-US $1399 / USD-ROW $999 / EUR €999 / GBP £835 / AUD $1625 |
| Key Features | |
| 1 | 1/2.8-inch HD CMOS sensor; effective pixels - 2.07M up to HD 60p |
| 2 | AI tracking |
| 3 | NDI HX3 license included |
| 4 | 20x optical zoom, 16x digital zoom |
| 5 | HDMI, 3G-SDI, USB 2.0 & H.264 IP output |
| 6 | Supports RTSP, RTMP, and ONVIF |
| 7 | 3.5mm stereo audio in/out, RS-232 in/out, supports built-in mic |
| 8 | UVC/RS-485 & IP VISCA control |
| 9 | DC or PoE+ power |
| 10 | Tally light |
| Description | |
| Short | HD CMOS sensor-based pan-tilt-zoom (PTZ) camera with 20x optical zoom—perfect for education, houses of worship, and budget-friendly production setups |
| Product Specifications | |
| Dimensions (W x H x D mm) | 139.2mm x 176.5mm x 165.8mm |
| Weight | About 1.5Kg |
| Environmental | |
| Ambient operating temperature | Up to 40 degrees Celsius |
| Construction | |
| Body | ABS |
| Power | |
| Input voltage | DC 12V/PoE+ (802.3at) |
| Operating power | Max 15W |
| Power on indicator | Yes |
| Video | |
| Sensor | 1/2.8 inch, CMOS |
| Effective pixels | Effective pixels: 2.07M |
| Lens | 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Scanning mode | Progressive |
| Resolutions supported | 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 |
| Color system / compression | YUY2/MJPEG/H.264 |
| Video format | YUY2: max to 1080P@5fps, H.264 AVC: max to 1080P@30fps |
| Digital zoom | 16x |
| Minimum Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| Image flip | Supported |
| Image freeze | Supported |
| White balance | Auto, VAR, Manual, One Push, Indoor, Outdoor |
| Backlight compensation | Support |
| Digital noise reduction | 2D & 3D Digital Noise Reduction |
| SNR | ≥55dB |
| Mechanical | |
| Horizontal FOV | 60.7° ~ 3.36° |
| Vertical FOV | 34.1° ~ 1.89° |
| Pan angle | ±170° |
| Tilt angle | -30° ~ +90° |
| Pan speed | 1.7° ~ 100°/s |
| Tilt speed | 1.7° ~ 69.9°/s |
| Preset position | 255 |
| Preset accuracy | 0.1° |
| USB | |
| Operating system | Windows 7/8/10, Mac OS X, Linux, Android, iOS, iPadOS |
| USB audio | Supported |
| USB video protocol | UVC 1.1/UVC 1.5 |
| USB PTZ control | Supported |
| Network | |
| Video compression | H.264/H.265 |
| Video stream | First Stream, Second Stream |
| First stream resolution | 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Second stream resolution | 1280x720, 1024x576, 720x480, 640x360, 480x272, 320x240, 320x180 |
| Video bit rate | 32Kbps ~ 20480Kbps |
| Bit rate control | CBR, VBR |
| Frame rate | 1fps ~ 60fps |
| Audio compression | AAC |
| Audio bit rate | 96Kbps, 128Kbps, 256Kbps |
| Protocols | NDI HX3, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
| Audio | |
| Microphone | Built-in dual microphone, 100Hz to 16KHz frequency response |
| Audio input | Line In |
| Audio output | Line Out, HDMI, USB |
| Input/Output Interfaces | |
| Line In | 3.5mm audio interface |
| Line Out | 3.5mm audio interface |
| RS-485 | 2-pin phoenix port; max distance: 1200m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 IN | 8-pin Mini DIN; max distance: 30m; protocol: VISCA/Pelco-D/Pelco-P |
| RS-232 OUT | 8-pin Mini DIN; max distance: 30m; protocol: VISCA network use only |
| Network | 10M/100M Adaptive Ethernet Port |
| USB | USB 2.0: Type A |
| SDI | 3G-SDI: BNC type, 800mVp-p, 75Ω. To SMPTE 424M standard |
| HDMI | HDMI version 1.3 |
| Power jack | JEITA type (DC IN 12V) |
| Tally indicator | Yes |
| What’s in the Box | |
| A-Eye HD-20X PTZ camera, RS-232 serial cable (2m), USB 3.0 A-A cable (1.5m), lens cover, remote controller, accessory tray, wall mount rack, screw pack, power adaptor with 4 plugs, Quick Start Guide | |
| Box dimensions (W x H x D mm) | 296mm x 243mm x 243mm |
| Warranty | |
| Standard | 1 year. Extended to 2 years on product registration. |
1x ATOMOS A-Eye HD-20X - PTZ Camera
